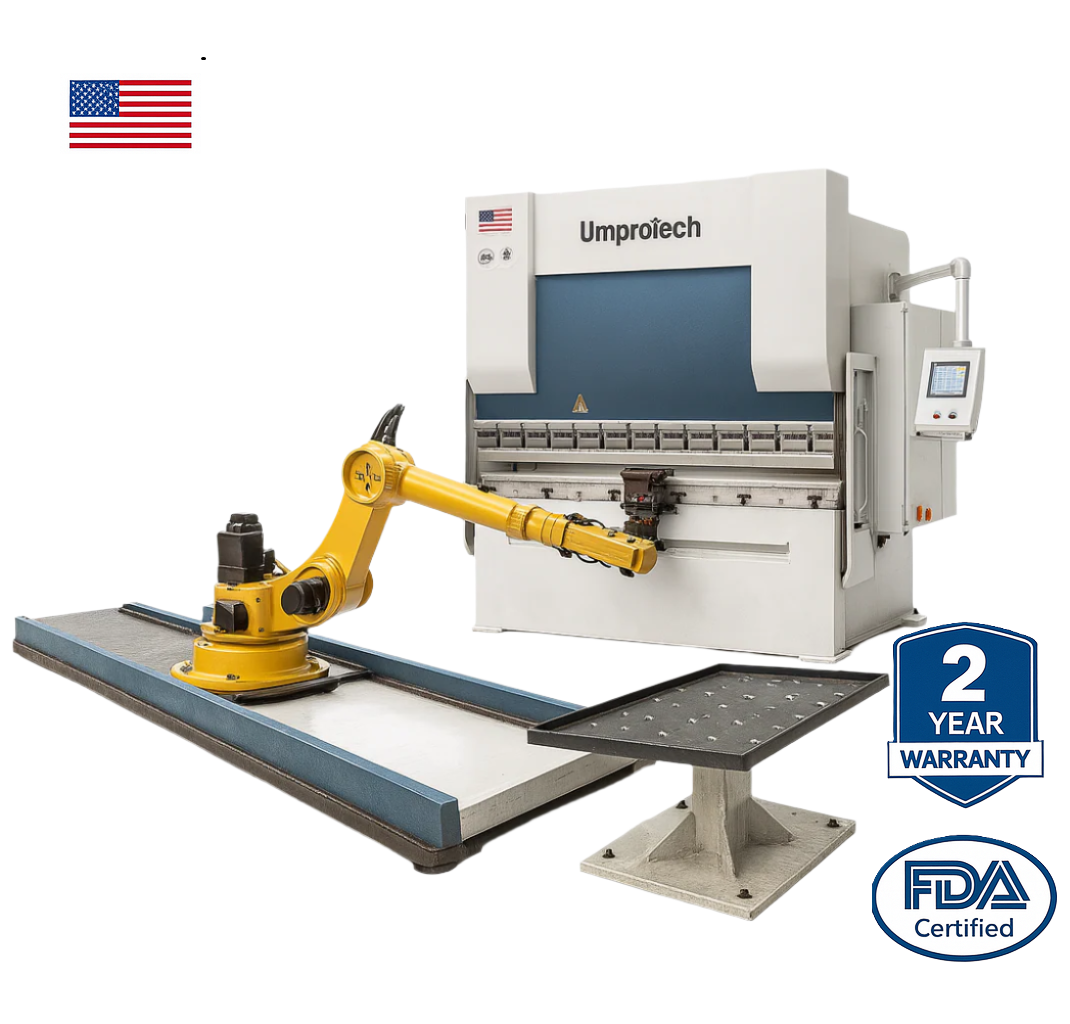

UmproTEch RHB PRO Robotic Sheet Metal Press Brake NEW
High-Speed Fiber Laser Cutter — USA Warranty
Regular price
$41,000.00 USD
Regular price
Sale price
$41,000.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Connections & Automation Options
- Pre-Centered Pack Loader: Automatically loads blanks from a pre-stacked pack for high-volume, unattended operation.
- Cartesian Feeder Loader (Masked Time): Loads material via Cartesian feeder to overlap cycles and cut idle time.
- Controlled-Axis Cartesian Feeder: Precise, programmable motions for flexible part feeding.
- Integrated Line Feeder/Unloader: Seamless in-line connection with UmproTech or third-party systems.
- Automated Unloader: Efficient removal of finished parts from the bending cell.
- Carousel Unloader: Rotating carousel for organized, high-speed unloading.
- Roller-Surface Pallet Unloader: Transfers finished parts to pallets for easy handling.
- Roller-Surface Pallet & Crate Unloader: Stacks parts on pallets or crates for logistics flexibility.
- Smart Integration: Backgauge finger & beam sensors synchronize with programmed brake sequences.
UmproTech RHB PRO Robotic Sheet Metal Press Brake – Robotic Arm Models
| Model | Description | Payload | Max. Reach | Market Price (USD) |
|---|---|---|---|---|
| RHB PRO 16 | High-speed, dynamic arm for fast cycles and light parts. | 16 kg (35 lbs) | 1610 mm (63.4") | $41,000 |
| RHB PRO 30 | Compact, flexible solution for small/medium parts and tight spaces. | 30 kg (66 lbs) | 2230 mm (87.8") | $54,000 |
| RHB PRO 110 | Heavy-duty, long-reach arm for larger payloads and parts. | 110 kg (243 lbs) | 3100 mm (122") | $93,000 |
Product Highlights
- RHB PRO 16: Optimized for speed & precision; ideal for high-volume light parts.
- RHB PRO 30: Best balance of reach and footprint; excels in mixed-part cells.
- RHB PRO 110: Handles heavy blanks, large flanges, and oversized bends.
Robotic Automation for Every Production Need
Share
UmproTech 1560P | 5×20 Industrial Fiber Laser Cutting System – USA
UmproTech 1560P Series — Fiber Laser 5′×20′
Full Enclosure • Auto Shuttle • 6–20 kW • Built for U.S. Shops
High-volume fiber laser system engineered for American fabrication. Imperial-first specs, 480V/60Hz power, OSHA/ANSI-minded design, nationwide installation, and financing available. Reliable throughput with clean edges and repeatable accuracy.
✓ FDA ✓ ETL ✓ TÜV-CE ✓ UDEM-CE
Certifications may vary by configuration; documentation available upon request.
Models
| Model | Power | Work Area |
|---|---|---|
| 1560P-6K | 6,000 W | 60″ × 238″ (1530 × 6050 mm) |
| 1560P-12K | 12,000 W | 60″ × 238″ (1530 × 6050 mm) |
| 1560P-15K | 15,000 W | 60″ × 238″ (1530 × 6050 mm) |
| 1560P-20K | 20,000 W | 60″ × 238″ (1530 × 6050 mm) |
Key Specs (U.S.)
Laser & Accuracy
- Raycus or IPG CW fiber laser, 1070 nm, 100,000+ hr design life
- Positioning ±0.0012″ • Repeatability ±0.0008″ • Typical kerf ≈ 0.005″
Throughput
- Cutting up to 1968 ipm (50 m/min)
- Rapids up to 4330 ipm (110 m/min) • Accel up to 1.2 G
Controls & Head
- BLT-642 autofocus head (water-cooled) • HYPCUT 8000 CNC (Windows UI)
- Centralized lubrication • Integrated fume extraction
U.S.-Ready Integration
- Electrical: 480 V, 3-phase, 60 Hz (alt. 208/240/400 V on request)
- Assist Gas: N2/O2 ready (bottles or generator). Typical: 2900–4350 psi manifold with regulators
- Chiller: Industrial water chiller, sized per kW (e.g., 12–20 kW units for 12–20 kW laser)
- Safety: Designed with OSHA 1910 practices and ANSI Z136.1 laser safety in mind (L/O-T/O procedures supported)
- Dust/Fume: Ducting stubs provided for NFPA-minded extraction layouts
Construction
- Stress-relieved welded frame for thermal stability
- Aerospace-grade aluminum gantry (ribbed, light, stiff)
- Full enclosure for operator safety & cleaner shop air
- Dual-pallet auto shuttle for near-zero idle time
Materials & Applications
- Carbon & stainless steel, aluminum, galvanized, silicon/manganese steels
- Copper, brass, titanium alloys (process windows available)
- Job shops • Automotive • Aerospace • Electrical cabinets • Ag/Food equipment
Warranty & U.S. Support
- Laser source: 2-year • Frame/core assemblies: 3-year limited
- On-site installation & operator training (UmproTech engineer travel included)
- U.S. helpdesk: phone/email/WhatsApp/WeChat • Lifetime software support & parts availability
- Ships from Illinois • Nationwide delivery • Financing & leasing available
Popular U.S. Options
- Nitrogen generator & booster package sized for 12–20 kW
- Upgraded filtration/extraction for multi-shift operation
- Nozzle/consumables starter kits • Sheet-handling roller tables
Quick Thickness Guide (Typical)*
- 6 kW: up to ~1/2″ mild steel, ~3/8″ stainless, ~1/4″ aluminum
- 12–15 kW: up to ~1″ mild steel, ~5/8–3/4″ stainless, ~1/2″ aluminum
- 20 kW: up to ~1-1/4″ mild steel, ~1″ stainless, ~3/4″ aluminum
*Material, gas, nozzle, and cut strategy affect results. Request an application test for your parts.
Request a U.S.-formatted quote or live demo
Get My QuoteCall +1 (872) 268-5842 • Email info@umprotech.com
UmproTech Inc. — American Reliability • Local Service • Industrial Results
