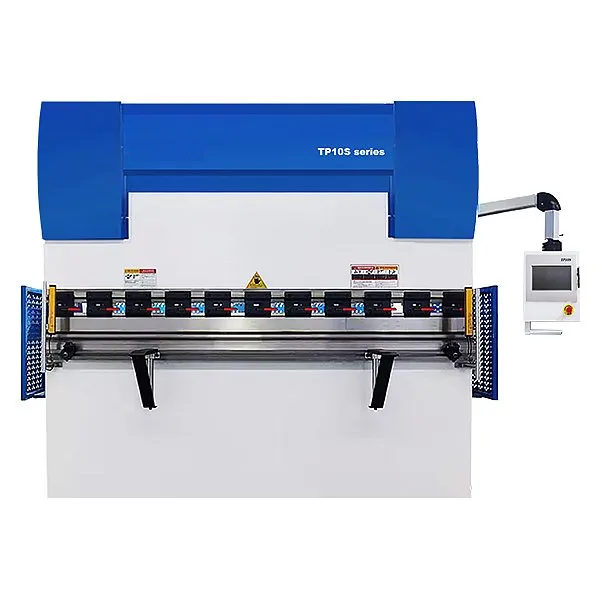

10' 265T Hydraulic Press Brake HBM 265/3200C CNC TP10S NEW
Couldn't load pickup availability
CNC Hydraulic Press Brake • TP10S Controller
- Press Force: 265 tons
- Bending Length: 126" (3,200 mm)
- Motor Power: 25 HP
- Working Speed: 335 in/min (8.5 m/min)
- Weight: 39,683 lbs
- Request a Quote
- Leasing Options Available
Share
3015ET
UmproTech DualX 3015ET Combo Turbo Series
All-in-One Sheet & Pipe Fiber Laser Cutters — Engineered for American Metalworking
Transform your fabrication capabilities with the industry's most versatile fiber laser solution. The DualX Combo Turbo series delivers unmatched flexibility, handling both sheet metal and structural tubing with industrial precision.
Designed specifically for U.S. manufacturers and job shops, this dual-function platform maximizes productivity while minimizing floor space requirements. With rapid automatic table exchange and American-certified safety systems, the DualX Combo Turbo is built to meet the rigorous demands of North American manufacturing environments.
U.S. Certified & Supported:
Fully compliant with U.S. safety standards and backed by local technical support
Technical Specifications
| Model | Cutting Area (Pipe) | Cutting Area (Sheet) | Table Capacity | Max Pipe Length |
|---|---|---|---|---|
| DualX 1530ET | 60" × 120" | 5' × 10' | 1,760 lbs | 20 ft |
| DualX 1560ET | 60" × 120" | 5' × 20' | 2,425 lbs | 20 ft |
| DualX 2060ET | 60" × 120" | 6.5' × 20' | 2,870 lbs | 20 ft |
| Additional Specifications | |||
|---|---|---|---|
| Laser Power | 1kW – 6kW (Raycus/IPG and others available) | Software Compatibility | DXF, AI, PLT, G-code |
| Warranty | 2 years (parts & labor, U.S. support) | Fume Extraction | 1200 CFM Integrated System |
| Control System | U.S. English Interface | Position Accuracy | ±0.0012" |
Cutting Capacity by Power
Maximum material thickness (inches) achievable with different laser power configurations. Results may vary based on material grade and cutting conditions.
| Laser Power | Mild Steel | Stainless Steel | Aluminum |
|---|---|---|---|
| Optimal | Optimal | Optimal | |
| 1kW | 0.20" | 0.10" | 0.08" |
| 2kW | 0.40" | 0.22" | 0.18" |
| 3kW | 0.55" | 0.30" | 0.25" |
| 4kW | 0.65" | 0.35" | 0.30" |
| 6kW | 0.75" | 0.42" | 0.35" |
Performance Notes:
- Optimal: Recommended for high-speed, high-precision cutting with best edge quality
- Good: Good quality at standard production speeds
- Max: Maximum achievable thickness at reduced speeds
- All capacities based on standard material grades - specialty alloys may have different results
- Cutting speeds vary based on material thickness and quality requirements
Engineered for American Workshops
Dual Function: Sheet + Pipe Cutting
Switch between flat sheets and round/square/rectangular tubing in seconds. Eliminate the need for separate equipment and maximize shop space utilization.
25-Second Automatic Table Exchange
Two tables swap automatically with zero downtime. Maintain continuous workflow and maximize production output. No manual intervention required.
Aircraft-Grade Aluminum Gantry
Rigid, lightweight construction ensures high-speed precision cutting with vibration resistance for demanding industrial environments.
Climate-Controlled Electronics
Sealed, air-conditioned control cabinet protects sensitive components from dust, humidity, and temperature fluctuations in tough shop conditions.
Integrated Fume Extraction System
High-volume extraction maintains clean air quality and OSHA-compliant working conditions. Removes 95% of particulates during operation.
U.S. Optimized Software
English interface with support for DXF, AI, PLT, and G-code formats. Compatible with American CAD/CAM workflows and easy to learn.
Why American Shops Choose UmproTech
U.S.-Based Inventory
Machines in stock at our Chicago and Houston warehouses for immediate delivery. No overseas shipping delays.
Local Technical Support
American technicians available for installation, training, and maintenance. On-site support within 48 hours.
2-Year Comprehensive Warranty
Full parts and labor coverage with rapid response guarantee. Extended warranty options available.
Flexible Payment Options
Financing, credit cards, and wire transfers accepted. Leasing options with $1 buyout available.
Free On-Site Training
Comprehensive operator training included with every machine purchase. Customized to your workflow.
Lifetime Software Updates
Continuous improvements at no additional cost. Automatic updates keep your machine current.
