10' 138T E22 Hydraulic Press Brake HBM 138/3200 NEW

High-Speed Fiber Laser Cutter — USA Warranty
$40,140.00 USD
$40,140.00 USD
Sale Sold out
Shipping calculated at checkout.

🇺🇸 UmproTech 10' 138T — HBM 138/3200 E22 Hydraulic Press Brake

Precision hydraulic press brake • E22 CNC controller • U.S. setup, training & support

Key Specifications

Press Force
138 tons (≈1,250 kN)
Bending Length
126" (3,200 mm)
Motor Power
10 HP (7.5 kW)
Working Speed (Bending)
~0.31 in/s (8 mm/s)
Machine Weight
≈22,046 lbs
Controller
E22 CNC — step/angle programs, parts counter, memory programs
In-Stock USA (Chicago) 2-Year Parts & Electronics Warranty Setup & Operator Training Included Financing & Leasing Available
Financing:
  • Request a Quote
  • Leasing Options Available

See more hydraulic press brakes or explore our fiber laser cutters.

View full details

138 Ton x 10' E22 HBM 138/3200

PRECISION CNC BENDING. ENGINEERED FOR AMERICAN MANUFACTURING.

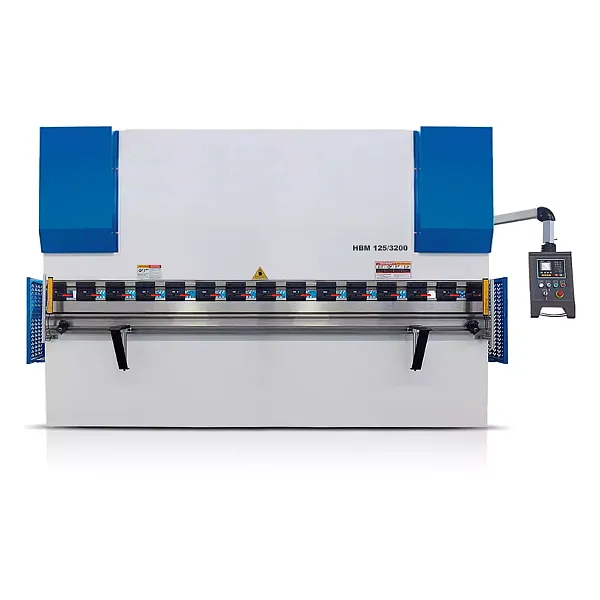

E22 • 2-AXIS CNC UmproTech HBM 138/3200 — 10-foot 138-ton CNC hydraulic press brake with E22 controller
2-Year Premium Warranty
ISO 9001 Certified
American-Owned
Nationwide Installation

Included Options

E22 CNC Control (2-axis)
SICK Model 4000 Light Curtain

Optional Upgrades

Fiessler AKAS II Laser Guarding
Pilz PSENvip LED Safety Guarding
Third Axis (Backgauge Height)
Mechanical Auto-Crown (CNC-controlled)
Training at UmproTech or on-site

138 Ton × 10′ CNC Hydraulic Press Brake

Model HBM 138/3200 • E22 Controller

Empower your shop with repeatable accuracy and faster setups. The UmproTech HBM 138/3200 combines a 138-ton frame with E22 CNC automation for reliable throughput on complex parts in U.S. production environments.

Key Specifications

Press Force
138 short tons
Bending Length
125.0–125.9 in (≈3200 mm)
Between Housings
~106.3 in
Throat Depth
~12.5 in
Ram Stroke Adjustment
≈2.4–2.8 in
Ram Travel
≈5.5–5.9 in
Open Height
≈15.9–16.3 in
Rapid Approach / Return
~2.4 / 2.0 in/s
Working Speed
Tool-dependent
Backgauge Travel
24.0 in
Hydraulic Oil Capacity
~79 gal
Main Motor Power
~15 HP
Net Weight
≈18,700–19,000 lb
Machine (L × W × H)
~148 × 64 × 101 in

Why Choose UmproTech HBM 138/3200?

U.S.-ready: safety & electrical compliance • E22 automation: quick setup & repeatability • Industrial build: forged hydraulics, rigid frame • Operator safety: SICK light curtain included • U.S. support: inventory in IL, nationwide service/training.

Request Custom Quote Book a Live Demo – Chicago Financing from $5xx/mo*
Speak to an Engineer: +1 (800) UMPROTECH
In Stock in the USA — Fast Shipping from Illinois
