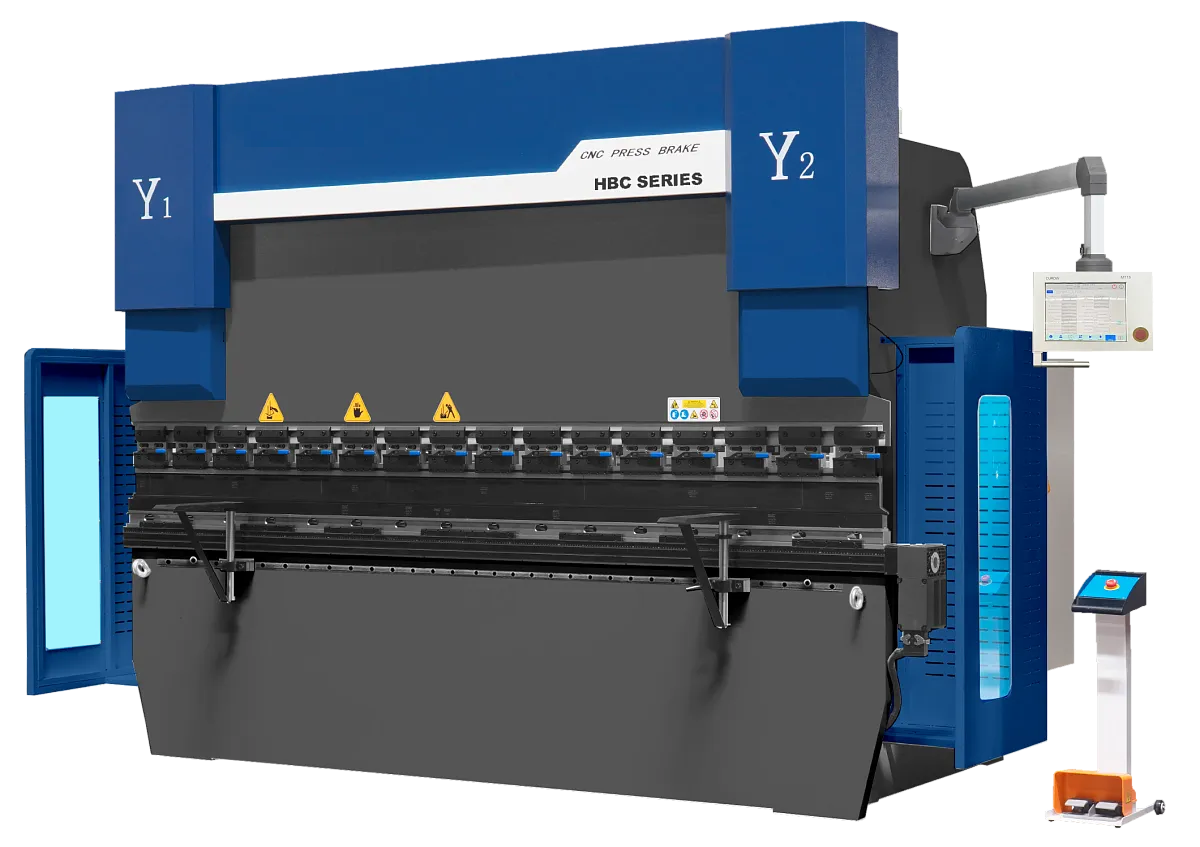

10' 135T HBC 135/3200 CNC Hydraulic Press Brake (4 Axis, MT-15 Controller) NEW
Couldn't load pickup availability
CNC Hydraulic Press Brake • 4 Axis • MT-15 Controller
- Press Force: 135 tons
- Bending Length: 122" (3,200 mm)
- Motor Power: 15 HP (11 kW)
- Weight: 17,640 lbs (8,000 kg)
- Request a Quote
- Leasing Options Available
Share
10' 135T HBC 135/3200 CNC
Built for the Toughest U.S. Metal Fabrication Jobs
The UmproTech 10' 135T HBC CNC Hydraulic Press Brake delivers unmatched power, accuracy, and flexibility for American sheet metal shops and manufacturers.
Advanced MT-15 CNC Control
15” high-resolution color touchscreen for fast, intuitive operation with complete control of 4+1 axes
World-Class Components
Bosch-Rexroth hydraulic system (Germany), SUNNY hydraulic pump (USA), SIEMENS main drive (Germany)
Maximum Power & Versatility
- 135 U.S. tons bending force
- 122" max bending length
- 104.5" between uprights
- 13.8" throat depth
- 7.9" ram stroke
- 17.9" open height
- 23.6" back gauge travel
Precision & Speed
- Approach speed: 6.3 in/sec
- Working speed: 0.55 in/sec
- Return speed: 5.5 in/sec
- GIVI MISURE optical linear scales: ±0.0002" accuracy
- Servo-driven back gauge: 0.0004" accuracy
10' 135T HBC CNC Hydraulic Press Brake
4+1 Axis, MT-15 ControllerEngineered for both full-length and segmented bending, this robust machine handles the toughest jobs with speed and repeatability, backed by the latest CNC technology and the most trusted global components. The UmproTech 135T CNC Press Brake is built for reliable, repeatable performance with automatic motorized crowning that eliminates deflection and ensures perfect angles across the entire part.
In Stock & Ready to Ship
Fast, insured shipping from our Illinois warehouse with comprehensive onboarding and operator training
Why Choose UmproTech?
-
Advanced CNC Control: 15" touchscreen with intuitive operation, 100 program storage
-
Precision Engineering: GIVI MISURE optical linear scales (±0.0002" accuracy)
-
Premium Components: Bosch-Rexroth hydraulics, SUNNY pump, SIEMENS drive
-
Automatic Crowning: Motorized CNC crowning guarantees perfect angles
-
Quick-Change Tooling: PROMECAM-style system for rapid setups
-
High-Speed Operation: 6.3 in/sec approach, 5.5 in/sec return
-
Robust Construction: 17,600 lb frame for maximum stability
-
U.S. Support: 2-Year warranty with American technical team
MT-15 Control System Features
4+1 Axis Control
Complete control of Y1, Y2, X, R axes plus CNC crowning for perfect bends every time
Program Storage
Store up to 100 bending programs, each with 25 steps for complex operations
Automatic Crowning
Motorized CNC crowning compensates for deflection automatically
Multi-language Support
Intuitive interface available in multiple languages for ease of use
Technical Specifications
| System Specifications | |
|---|---|
| Model | UmproTech 135T 122" HBC |
| Bending Force | 135 short tons |
| Max Bending Length | 122 in |
| Distance Between Columns | 104.5 in |
| Throat Depth | 13.8 in |
| Ram Stroke | 7.9 in |
| Open Height | 17.9 in |
| Back Gauge Travel | 23.6 in |
| Approach Speed | 6.3 in/sec |
| Working Speed | 0.55 in/sec |
| Return Speed | 5.5 in/sec |
| Main Motor Power | 15 HP (SIEMENS) |
| Overall Dimensions (L×W×H) | 130" × 63" × 98" |
| Weight | 17,600 lbs |
Complete Package Includes
- UmproTech 135T 122" HBC CNC Press Brake with MT-15 Controller
- PROMECAM quick-change tooling system
- Bosch-Rexroth hydraulic package (Germany)
- SUNNY hydraulic pump (USA)
- SIEMENS main drive motor (Germany)
- GIVI MISURE precision optical encoders (Italy)
- 2-Year U.S. Warranty and U.S.-based technical support
American Manufacturing Support
Fast Delivery: Nationwide freight from Illinois
Technical Support: U.S.-based rapid-response team
American Pride: Branded with UmproTech logo, U.S. flag, and certifications
