110T 10' HBC 110/2500 MT-15
UmproTech
Heavy-Duty Precision Bending — Built for American Manufacturing

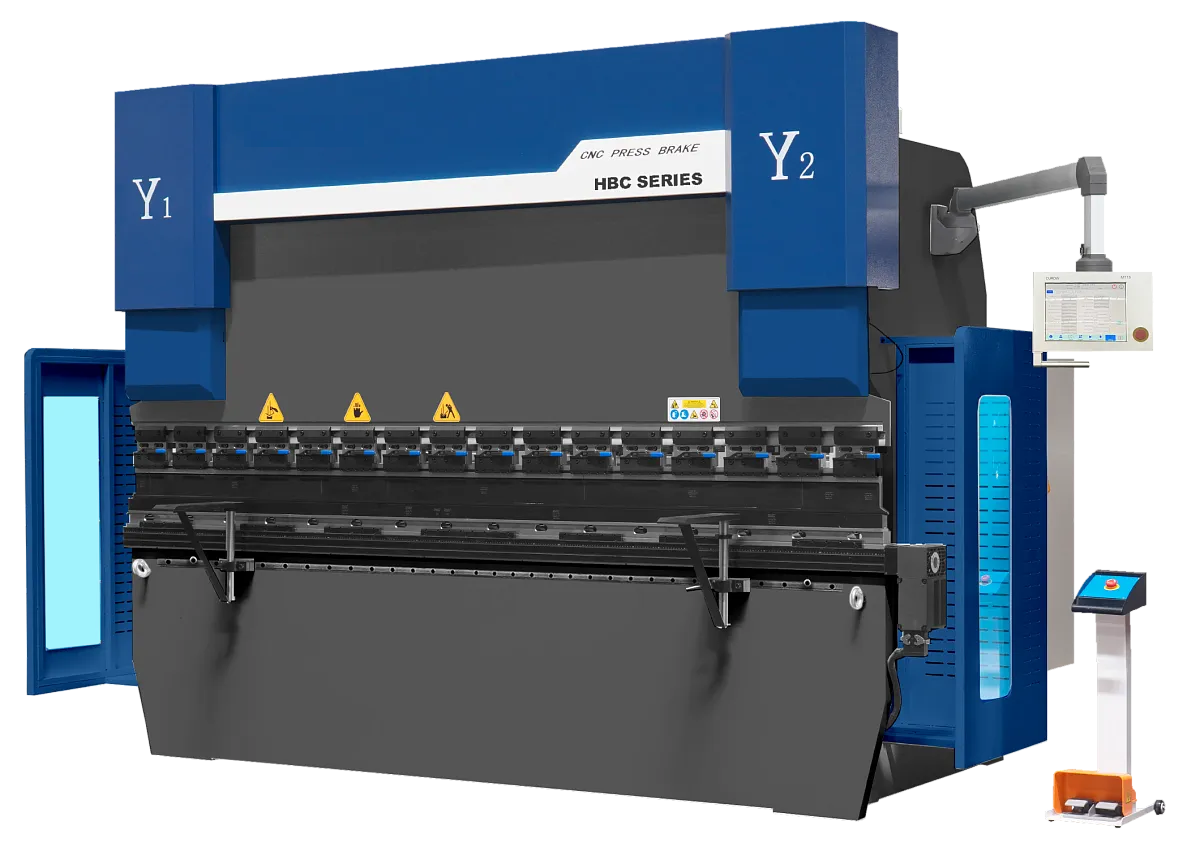

4+1 AXIS • MT-15 ![UmproTech HBC 110/2500 — 8-foot 110-ton CNC hydraulic press brake with 4+1 axes and MT-15 controller]()
2-Year Premium Warranty
ISO 9001 Certified
American-Owned
Nationwide Shipping
Industrial Power & Accuracy for U.S. Fabricators
The UmproTech 8′ 110 T HBC 110/2500 delivers repeatable bends and fast changeovers for demanding jobs.
Advanced MT-15 CNC Control
15″ color touchscreen with intuitive programming across 4+1 axes.
World-Class Components
Bosch-Rexroth hydraulics, SUNNY pump, SIEMENS main drive — proven reliability.
Capacity & Envelope
- 110 short tons bending force
- Max bending length: 98.4″ (≈2500 mm)
- Between uprights: 78.0″
- Throat depth: 13.8″
- Ram stroke: 7.9″
- Open height: 17.9″
- Backgauge travel: 23.6″
Precision & Speed
- Approach / Working / Return: 6.3 / 0.55 / 5.5 in/s
- Optical scales (GIVI MISURE): ±0.0002″ feedback
- Servo backgauge repeatability: ±0.0004″
HBC 110/2500 — 8′ 110-Ton CNC Hydraulic Press Brake
4+1 Axis • MT-15 ControllerBuilt for full-length and segmented bending, the HBC 110/2500 pairs a rigid 110-ton frame with 4+1 CNC axes and MT-15 control to run complex parts fast and repeatably — backed by U.S. support. Motorized CNC crowning compensates deflection for uniform angles across the entire part.
In Stock & Ready to Ship
Fast, insured freight from Illinois with onboarding and operator training.
Why Choose UmproTech?
-
MT-15 Control: 15″ touchscreen, intuitive operation, job storage
-
Precision Feedback: GIVI MISURE optical scales (±0.0002″)
-
Premium Hydraulics: Bosch-Rexroth + SUNNY pump
-
Auto Crowning: motorized CNC crowning for perfect angles
-
Quick-Change Tooling: PROMECAM-style for rapid setups
-
High-Speed Cycles: 6.3 in/s approach • 5.5 in/s return
-
Rigid Frame: heavy structure for stability and finish quality
-
U.S. Support & Warranty: 2-year parts & service coverage
Technical Specifications
| System Specifications | |
|---|---|
| Model | UmproTech HBC 110/2500 |
| Bending Force | 110 short tons |
| Max Bending Length | 98.4 in (≈2500 mm) |
| Distance Between Columns | 78.0 in |
| Throat Depth | 13.8 in |
| Ram Stroke | 7.9 in |
| Open Height | 17.9 in |
| Backgauge Travel | 23.6 in |
| Approach / Working / Return | 6.3 / 0.55 / 5.5 in/s |
| Main Motor Power | 10 HP (SIEMENS) |
| Overall Dimensions (L × W × H) | ~120 × 63 × 98 in |
| Net Weight | ≈13,600 lb |
Complete Package Includes
| Controller | MT-15 touchscreen (4+1 axis) |
| Tooling | PROMECAM quick-change system |
| Hydraulics | Bosch-Rexroth valves + SUNNY pump |
| Feedback | GIVI MISURE optical linear scales |
| Warranty | 2-Year U.S. parts & service |
Request Custom Quote Book a Live Demo – Chicago Financing from $5xx/mo*
Speak with an Expert: +1 (800) UMPROTECH
