UmproTech 510H | 5′x10′ High-Power Fiber Laser Cutter – Gen 4 NEW

High-Speed Fiber Laser Cutter — USA Warranty
$185,000.00 USD
$185,000.00 USD
Sale Sold out
Shipping calculated at checkout.

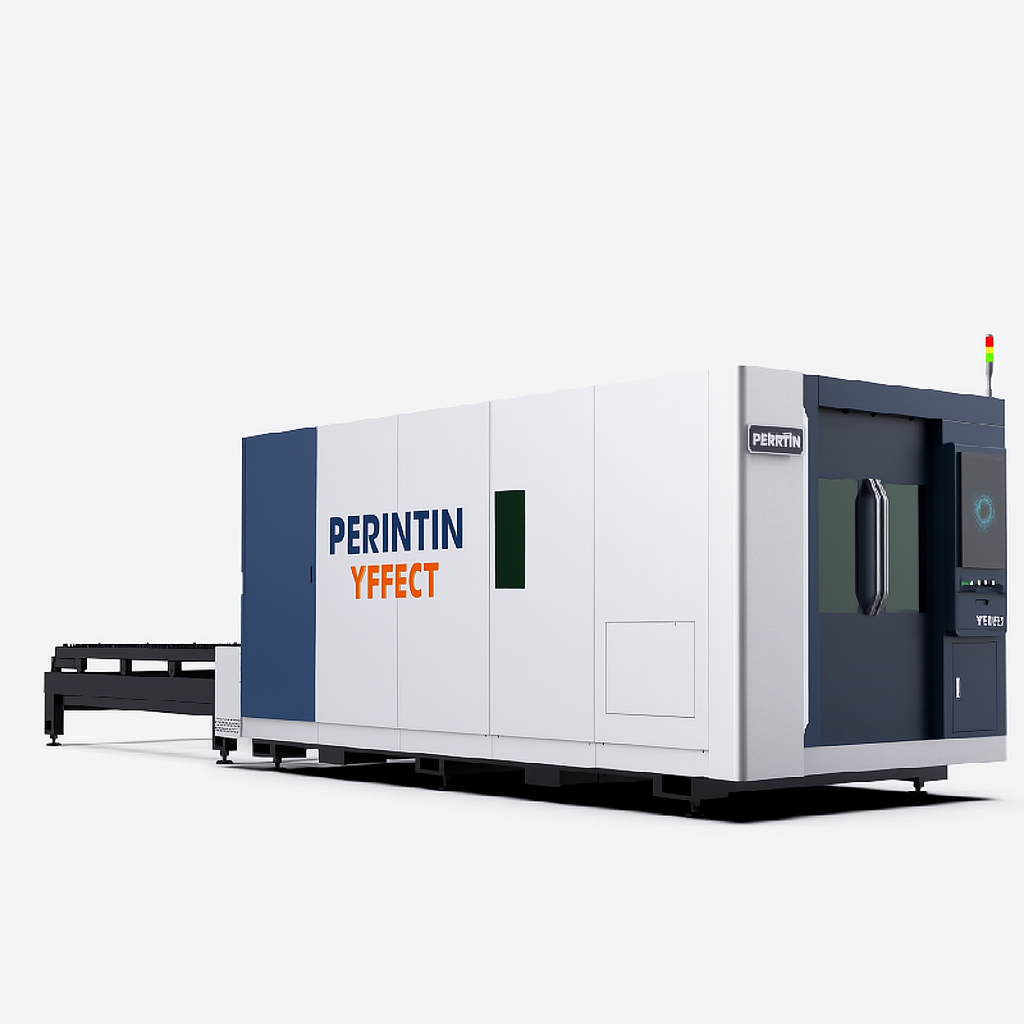

🇺🇸 UmproTech 510H — 5′×10′ Industrial Fiber Laser Cutter

Full-format 5′×10′ bed • LS6000M AI control • U.S. setup, training & support

Starting at $124,999 (MSRP $149,999)

Key Specifications

Cutting Bed
5′ × 10′ full format (1525 × 3050 mm)
Laser Power
3–30 kW fiber source (configurable)
Controller
LS6000M AI — nesting, pierce libraries, auto-height
Traverse Speed
Up to ~100–140 m/min (application dependent)
Positioning Accuracy
±0.001–0.002″ (±0.03–0.05 mm) typical
Frame
Heavy-duty welded steel, anti-vibration
Options:
  • Fully enclosed protective housing
  • Automatic dual-pallet shuttle changer
In-Stock USA (Chicago) 2-Year Parts & Electronics Warranty Setup & Operator Training Included Financing & Leasing Available

See more fiber laser cutters, laser cleaners, and laser welders.

View full details

High-Power Fiber Laser Cutter | 5×10 Industrial Systems – UmproTech USA

🇺🇸 UmproTech 510H — Fourth-Generation High-Power Fiber Laser Cutter (5′×10′)

Engineered for Heavy-Duty Production • 6–30 kW • Fully Enclosed • Dual Auto-Exchange Tables

The UmproTech 510H Series sets a new standard in industrial metal fabrication. Built for uptime, precision, and safety, the 510H combines an enclosed Class-4 laser enclosure with fast dual shuttle tables (typical exchange ≈20 s) to keep your operators protected and your throughput high.

Available power from 6 kW to 30 kW covers stainless production and thick-plate carbon steel. The thermally isolated bed and aerospace-grade gantry preserve accuracy during continuous high-power work.

Certifications & Compliance

CE (TÜV/UDEM) FDA Class-4 (where applicable) ETL-listed subsystems RoHS-conscious design

Compliance scope depends on configuration and market. Ask our team for the exact certificate set for your build.

Key Technical Specifications

Model 510H 6120H 8025H 12025H 12528H
Laser Power 6–30 kW 6–30 kW 6–30 kW 6–30 kW 6–30 kW
Cutting Area 121″ × 60″ 238″ × 80″ 317″ × 100″ 474″ × 100″ 494″ × 111″
Position Accuracy ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm ±0.05 mm
Repeatability ±0.02 mm ±0.02 mm ±0.02 mm ±0.02 mm ±0.02 mm
Max Motion Speed Up to 590 in/min* Up to 590 in/min* Up to 590 in/min* Up to 554 in/min* Up to 590 in/min*
Max Table Load 3,000 kg 6,000 kg 8,000 kg 14,000 kg 16,000 kg

*Application-dependent; actual speeds vary by material, thickness, gas, nozzle, path strategy.

Core Features

🏗️ Heavy-Duty, Thermally Isolated Bed

Thick-walled steel, stress-relieved; insulated hollow bed minimizes heat transfer and preserves geometry over years of high-power cutting.

🌀 Smart Zonal Extraction

Zones follow the cutting head to keep smoke down and optics cleaner, improving air quality and reducing maintenance.

🔥 Graphite & Copper Shielding (≥8 kW)

Protects the bed from reflected energy and slag on thick-plate jobs.

✈️ Aerospace-Grade Gantry

Ribbed aluminum for high stiffness/low mass → fast response and clean edge quality.

🧠 Control — UmproTech LS6000M

  • Presets & cut libraries
  • Auto-nesting & path optimization
  • Self-diagnostics & maintenance prompts

🪙 Gas & Nozzles

O₂ / N₂ / Air with validated recipes for steel, stainless, aluminum.

Typical Cutting Capability (Guidance)

Carbon Steel (O₂/N₂)

  • 6 kW: ~20 mm
  • 12 kW: ~30 mm
  • 20–30 kW: ~40 mm+

Depends on edge spec & gas purity.

Stainless (N₂)

  • 6 kW: ~12–14 mm
  • 12 kW: ~20–25 mm
  • 20–30 kW: ~30 mm

Aluminum (N₂/Air)

  • 6 kW: ~10–12 mm
  • 12 kW: ~16–20 mm
  • 20–30 kW: ~25–30 mm

Utilities, Footprint & Safety

⚡ Power & Air

  • 480 V 3-phase (other on request)
  • Clean, dry compressed air
  • Chiller included, sized to kW

📐 Space & Weight

  • 5′×10′ enclosure with dual shuttles
  • Allow service aisles; rigging per site

🛡️ Safety & Compliance

  • Enclosed Class-4 with interlocks
  • Practices aligned with ANSI Z136.1
  • Local code support available

UmproTech 5-Star Support Promise

⏱️ 24/7 Response

Initial response ~10 min, most software issues ~1 hour, U.S. engineer dispatch ~1 business day.

👨🏭 Install & Training

On-site installation and operator training. We cover travel; you provide lodging/meals.

🛡️ Warranty

2-year machine & source; non-consumable parts replaced free during warranty.

💎 Lifetime Care

Demos, lifetime software updates, self-diagnostics, optional extended coverage.

FAQ

What gas setup do I need for 12 kW+?

N₂ for stainless/aluminum finish, O₂ for carbon steel thickness, clean dry air for certain cost-down jobs. We’ll size regulators, nozzles, filters.

Can you retrofit our extraction and electrical?

Yes. We can integrate with existing utilities or deliver a turnkey package (chiller, filtration, cabinet, grounding, interlocks).

What’s included in commissioning?

Assembly, calibration, cut-library setup for your materials, safety checks, and operator training.
