13 ft > 450 ton > Cnc > Hydraulic > Press brake

SKU:MBT-450-13

MBT

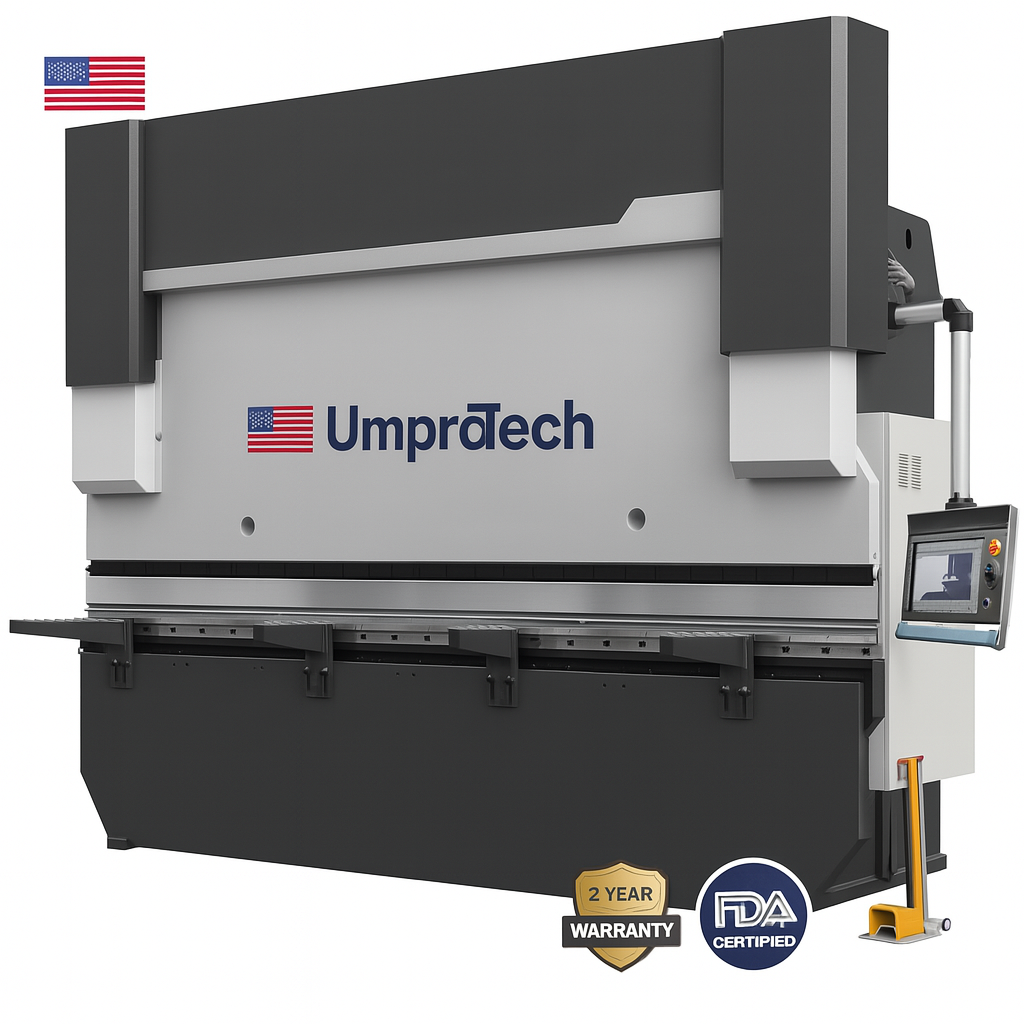

MBT 450/13 – CNC Hydraulic Press Brake NEW

High-Speed Fiber Laser Cutter — USA Warranty
Regular price $188,500.00 USD
Regular price Sale price $188,500.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

MBT 450/13 heavy-duty CNC hydraulic press brake for US market and 24/7 production.

View full details

MBT 450/13 heavy-duty CNC hydraulic press brake for US market and 24/7 production.

⭐ Flagship Model
INDUSTRIAL-GRADE CNC HYDRAULIC PRESS BRAKE

MBT 450/13 – 450-Ton, 13 ft Flagship CNC Press Brake

The ultimate production solution for North American heavy fabrication. Engineered with premium European, U.S., and Japanese components, the MBT 450/13 delivers unmatched precision, reliability, and productivity for demanding multi-shift operations in aerospace, defense, heavy equipment, and contract manufacturing.

FAGOR closed-loop Y1/Y2 – ±0.0002" repeatability
Bosch-Rexroth hydraulics & SUNNY industrial pumps
CNC-controlled electromechanical crowning standard
DELEM DA-53T touch CNC with 3D simulation
Flagship Configuration Summary
Base machine (Premium U.S. package) $188,500
Selected options $0
Total Investment
$188,500
Complete ex-works pricing for U.S.-spec configuration. Includes premium component package and enhanced features.
Request detailed ROI analysis with production cycle time estimates and payback period calculation.
Model
MBT 450/13
Press Force
450 tons (nominal)
Bending Length
13 ft (≈ 157 in)
Max Opening
23.6 in
Ram Stroke
11.8 in
Backgauge Travel
31.5 in

Flagship Engineering Excellence

Discover the advanced engineering and premium components that make the MBT 450/13 the ultimate choice for demanding production environments.

Precision Engineering

  • FAGOR optical scales with 0.0001" resolution for unmatched accuracy
  • Closed-loop Y1/Y2 control maintains parallelism across full 13 ft bed
  • Thermal stability engineering for consistent performance in multi-shift operations
  • Advanced vibration damping system for superior surface finish

Advanced Hydraulics

  • Bosch-Rexroth proportional valves for smooth, precise control
  • SUNNY industrial-grade pumps designed for continuous operation
  • Intelligent hydraulic cooling system maintains optimal temperature
  • NOK (Japan) sealing technology for leak-free performance

Smart Control System

  • DELEM DA-53T with 3D simulation and collision detection
  • Industry 4.0 ready with IoT connectivity and data logging
  • Advanced diagnostics and predictive maintenance alerts
  • Multi-language interface with US/metric unit switching

MBT 450/13 – Complete Technical Specification

Comprehensive technical data for the MBT 450/13 flagship press brake. All specifications are validated for North American industrial standards with 460V/60Hz power, DELEM DA-53T CNC, and closed-loop control systems. Final values confirmed in formal quotation and GA drawings.

Geometry & Capacities

Press force450 US tons (nominal)
Bending length157 in (13 ft)
Distance between frames122 in (10.2 ft)
Throat depth15.7 in
Ram stroke11.8 in
Open height (max opening)23.6 in
Backgauge travel (X)31.5 in
Backgauge speed (X)7.9 in/sec
Y-axis repeatability (typ.)≤ ±0.0004 in (±0.01 mm)

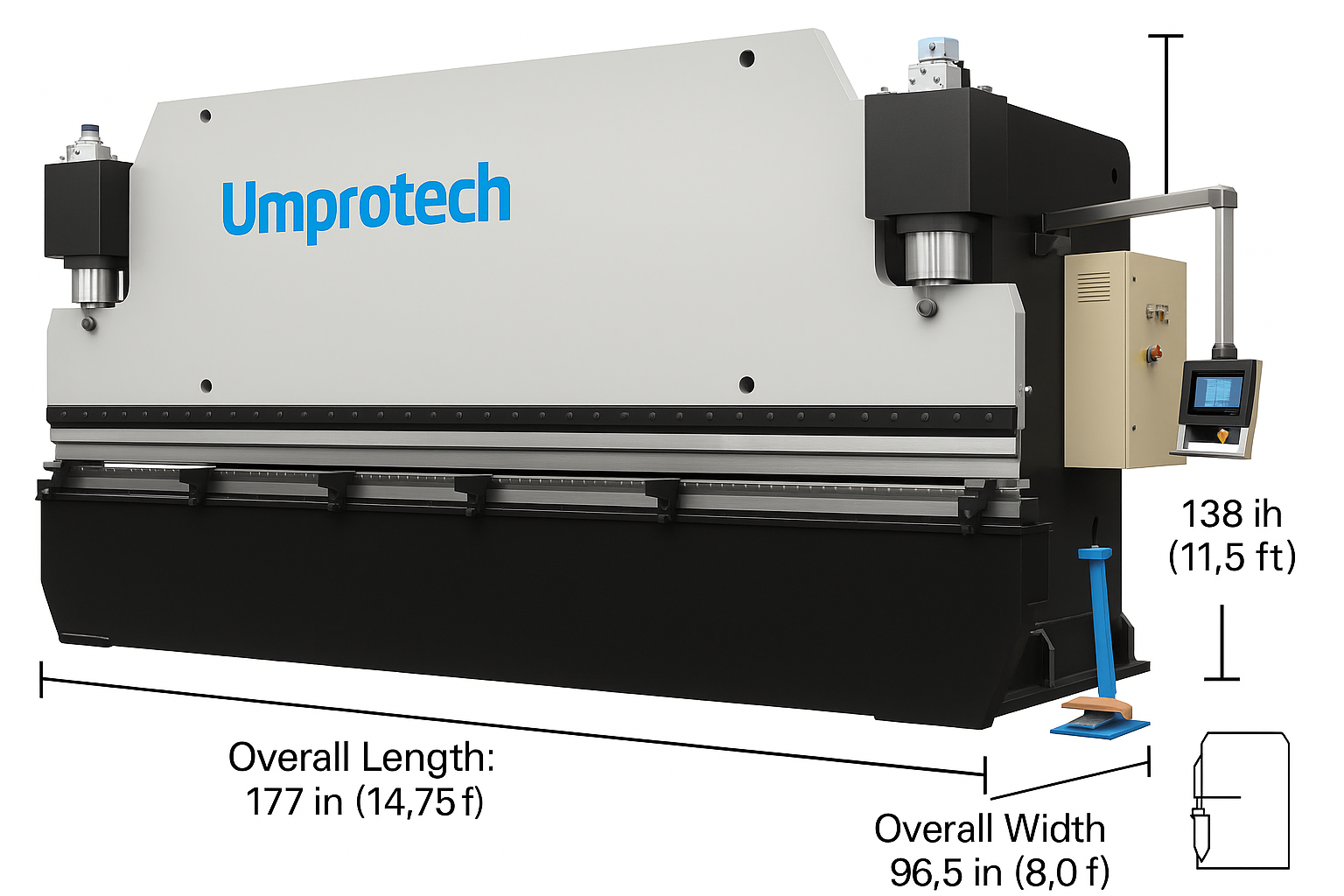

Overall Dimensions & Weight

Overall length177 in (14.75 ft)
Overall width96.5 in (8.0 ft)
Overall height138 in (11.5 ft)
Net weight≈ 68,000–69,000 lbs (31,000 kg)
Machine frameOne-piece welded steel, stress relieved
Floor loadingMin. 250 psi concrete

Power, Hydraulics & Electrical

Main motor36 HP (26.9 kW) Siemens
Power supply (typical)460V / 3-Phase / 60 Hz
Hydraulic pumpSUNNY (USA) gear / piston pump
Hydraulic valvesBosch-Rexroth proportional valves
System pressure (typ.)≈ 2900–3200 psi (200–220 bar)
Hydraulic tank (typ.)≈ 100–130 gal
Ram approach speed (typ.)≈ 7.1 in/sec (180 mm/s)
Ram bending speed (typ.)≈ 0.3 in/sec (8 mm/s)
Ram return speed (typ.)≈ 7.1 in/sec (180 mm/s)
ElectricsSchneider contactors, breakers, protection

Note: All values represent typical configuration for North American market. Bending charts per material/thickness, foundation drawings, and detailed component specifications are provided with formal quotation. Machine complies with ANSI B11.3 and OSHA standards.

Advanced Engineering & Design Philosophy

The MBT 450/13 represents the pinnacle of press brake engineering, combining German precision standards with American industrial durability for unmatched performance in the most demanding production environments.

Precision & Control

  • FAGOR optical scales mounted directly to the frame – measurement independent of cylinder stretch and oil temperature drift.
  • Closed-loop Y1/Y2 with high-resolution feedback (≈ 0.0001–0.0002" range) for stable parallelism along the full 13 ft bed.
  • DELEM DA-53T CNC: US-friendly units, angle and depth programming, material libraries and job storage for repeat work.
  • Electromechanical crowning as standard – CNC-controlled compensation curve to keep angles consistent across the working length.
  • Advanced bend sequencing with automatic tool selection and collision detection.

Frame & Mechanical Platform

  • One-piece welded monoblock frame, stress-relieved by heat treatment for long-term geometry stability.
  • Bed and ram machined in a single setup to maintain parallelism and minimize twist over time.
  • Backgauge on HIWIN linear guides and ball screws for smooth, repeatable positioning even at high duty cycles.
  • Finite Element Analysis (FEA) used to balance stress distribution under full load and reduce deflection in critical areas.
  • Reinforced frame design with additional ribbing in high-stress areas for extended service life.

Hydraulics, Reliability & Maintenance

  • SUNNY hydraulic pump sized for continuous industrial duty with generous tank volume for thermal stability.
  • Bosch-Rexroth proportional valves for smooth pressure and speed control during approach, bend and return.
  • NOK (Japan) sealing on cylinders and critical interfaces to reduce leakage and unplanned downtime.
  • Accessible filtration, level and temperature monitoring for straightforward preventive maintenance and diagnostics.
  • Intelligent hydraulic system with automatic air bleeding and contamination monitoring.

Industry Applications & Capabilities

The MBT 450/13 excels across multiple industries, delivering precision, reliability, and productivity for the most demanding applications.

Aerospace & Defense

Critical components with tight tolerances, complex geometries, and premium materials including titanium and high-strength alloys.

Heavy Equipment

Structural frames, chassis components, and heavy-duty brackets for construction, mining, and agricultural machinery.

Energy & Infrastructure

Power generation components, transmission towers, and structural elements for renewable energy and utility applications.

Contract Manufacturing

High-mix, low-volume production with quick changeovers, diverse material capabilities, and consistent quality across batches.

Machine & Component Gallery

Explore the premium features and components that make the MBT 450/13 the flagship choice for demanding production environments.

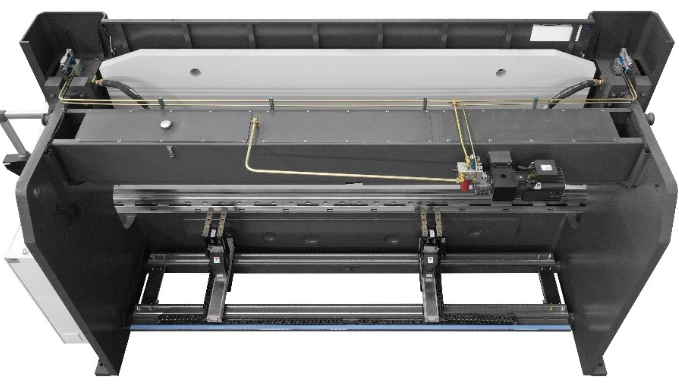

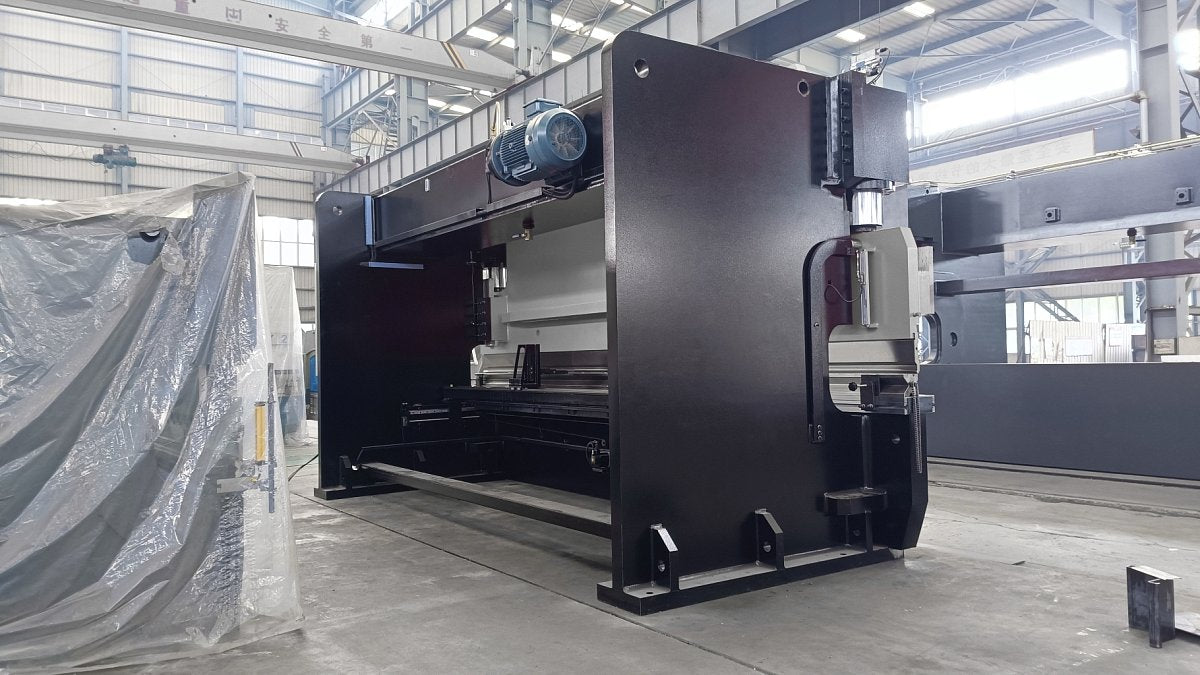

MBT 450/13 frame and overall machine view
Frame & Machine View
One-piece welded frame of the MBT 450/13 with front working area and premium guarding concept.

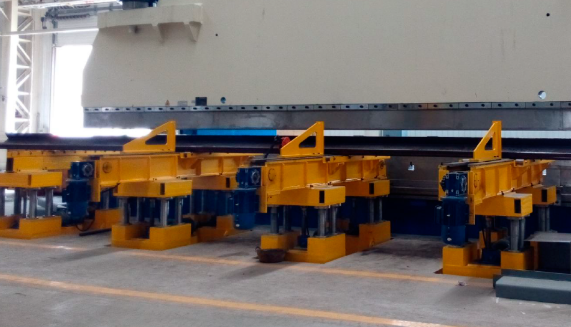

MBT 450/13 operator side with CNC control
Operator Workstation
Premium operator environment with DELEM DA-53T CNC control and ergonomic loading/unloading zone.

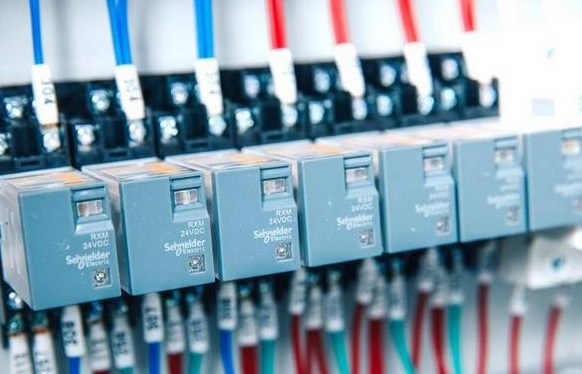

Parts and components produced on the MBT 450/13
Production Capabilities
Complex parts and high-volume production batches suitable for the MBT 450/13 tonnage and bending length.

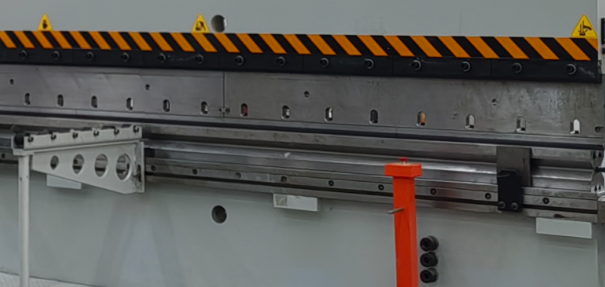

Press brake tooling for MBT 450/13
Premium Tooling System
Advanced tooling layout with hydraulic clamping and application-specific tools for maximum versatility.

Configure Your MBT 450/13 Flagship Press Brake

Customize your flagship MBT 450/13 with premium options designed for maximum productivity, precision, and reliability. All options are engineered for seamless integration with U.S. electrical, safety, and plant standards.

What the Flagship MBT 450/13 Base Package Includes
  • 450-ton, 13 ft monoblock frame with closed-loop Y1/Y2 control and FAGOR optical scales
  • DELEM DA-53T CNC with 3D simulation, collision detection, and advanced programming
  • Standard X-axis backgauge with 31.5 in travel and precision finger stops
  • Electromechanical crowning as standard for accurate angles along the full bending length
  • Premium hydraulic and electrical system using BOSCH-Rexroth, SUNNY, Siemens, Schneider components
  • Enhanced frame design with additional ribbing for extended service life

Productivity & Handling

CNC Axes & Motion

Tooling & Clamping

Safety, Laser & Compliance

Safety packages are always reviewed together with your risk assessment, parts and plant standards to arrive at a compliant, practical guarding concept for your operators. All safety systems include comprehensive documentation and training.

Software, Connectivity & Support

Advanced Bending Force Calculator

Calculate Required Tonnage

Reference Formulas & Guidelines

Air Bending Force (Metric Base):
FkN = (1.42 × TS × S² × L) / (1000 × V)
FkN – force in kN, TS – tensile strength (MPa), S – thickness (mm), L – bending length (mm), V – die opening (mm). The calculator converts inch inputs to mm, evaluates force in kN using this standard air-bending formula and then converts to U.S. short tons for display.
Minimum Flange Length:
h ≈ V / 2 + S + R
h – minimum flange, V – die opening, S – thickness, R – inside radius (all in the same units, e.g. inches). Use this as a quick check when evaluating part feasibility on the MBT 450/13.
Approximate Inside Radius (Air Bending):
R ≈ (5 × V) / 32
These relationships are intended for quick engineering estimates. Final tooling selection and allowable loads are always checked against tooling catalog data and the machine's official bending charts. Consult with our engineering team for specific applications.
Ready to Configure Your Flagship MBT 450/13?

Share your configuration and sample parts (DXF / STEP / PDF) with our engineering team to receive a comprehensive U.S.-spec quotation, detailed layout drawing, complete bending chart, and production cycle time estimates tailored to your specific part mix and volume requirements.

Request Engineering Consultation
All configurations include comprehensive technical support, installation guidance, and operator training
Pricing shown here is indicative only. Final price, tooling package, safety concept, delivery terms, and installation schedule will be confirmed in a formal quotation by our sales and engineering team. Includes comprehensive technical support and training.

Locking Joint Variants

JOINT DESIGN REFERENCE

Locking Joint Variant Chart – Sheet & Plastic Parts

This page summarizes 30 cross-sectional joint profiles. They are intended as a concept library for engineers and customers discussing how two components can snap, hook, clamp or hinge together.

The variants are arranged in five rows of six. Within each row, reading order is left to right: joints 1–6, then 7–12, and so on up to 30.

Use the filter bar and the category schematics below to quickly focus on hooks, clamps, hinges, cams or more complex locking features.

Locking Joint Variant Chart with 30 different snap and locking profiles.
Figure 1 – Locking Joint Variant Chart (30 typical profiles used in our tooling).

How to read the schematic

Legend for joint cross-sections Fixed base at the bottom, moving or formed member at the top, dark line showing the deformed sheet or rib, and arrows for assembly and pull-off directions. fixed part / base moving member dark line = formed sheet or rib assembly direction pull-off / main load
  • The lower block represents the fixed base or mating component (sheet metal flange, plastic housing, machined boss, etc.).
  • The upper slender shape is the moving part or punch forming the joint. The thick dark line shows the deformed sheet / rib.
  • Joints are normally assembled in the arrow direction (push-in or snap-in) and resist the opposite pull-off direction.
  • Sketches are not to scale – final geometry depends on material, thickness, tolerances and loads.

Category schematics – quick view for engineers and customers

Each tile below shows a simplified cross-section of a joint family. Click a tile to filter the table to that category. The notes explain it in client language and highlight the engineering focus.

Hook / Snap joints HOOK / SNAP
snap-in pull
  • Client view: parts click together with an audible “snap”, no tools.
  • Engineering view: geometry tuned for deflection, pull-off load and number of cycles.
Clamp / Locator joints CLAMP / LOCATE
load
  • Client view: joint aligns parts and holds them tightly in position.
  • Engineering view: reference surfaces; key points are tolerance stack-up and contact pressure.
Pocket / Housing joints POCKET / BOX
  • Client view: one part “sits inside” the other with side support.
  • Engineering view: defines position in X/Y/Z; often combined with screws, staking or adhesive.
Hinge / Curl joints HINGE
rotation
  • Client view: small built-in hinge / pivot.
  • Engineering view: check minimum bend radius, wear and assembly (open vs. closed curl).
Cam / Ratchet joints CAM / RATCHET
cam action
  • Client view: closing movement pulls parts together and preloads a seal or joint.
  • Engineering view: cam angle controls force amplification and closing effort.
Complex / multi-direction lock MULTI-LOCK
side pull
  • Client view: joint blocks movement in several directions at once.
  • Engineering view: used where safety or vibration require redundancy in the lock.

Joint variants with categories and design intent

Use the filters or click a category tile above to show only a certain family of joints. Categories are indicative and several joints can fit more than one category.

Filter by type:
Joints 1–30 in the same order as in Figure 1 (five rows of six).
No. Short name Category Function & notes
1 Simple hook tab Hookone-way snap Primary lock in vertical pull-off direction. Short hook under a shoulder; easy to mold and form. Best for light to medium loads, plastic housings or thin sheet.
2 Deep hook tab Hookincreased retention Longer vertical leg increases engagement length and pull-off strength. Use where the joint must not release unintentionally but tool access is limited.
3 Multi-step hook HookComplex Z-shaped hook with several steps; difficult to disengage without deformation. Near-permanent joint; good where tamper resistance is required.
4 Straight V-wedge Clamp V-shaped wedge that centers and clamps the mating edge. Self-locating; loads mainly compressive.
5 Long lever hook Hookflexible arm Long arm provides elastic travel and controlled snap-in. For covers that need to be opened repeatedly without tools.
6 Wave spring latch Cam / spring Wavy contact at the base works as an integrated spring. Provides soft tactile feedback and tolerance compensation.

Application notes

The profiles shown are concept sketches. Before releasing a production design, each joint is adapted to:

  • material (steel, aluminum, stainless, ABS, PC/ABS, etc.),
  • thickness and forming process (stamping, laser + forming, molding),
  • required load and safety margin,
  • tolerances, assembly method and tool access.

We can review your 3D models or sketches and recommend the most suitable joint variant from this library – or a combination of them – tailored to your application.

  • Covers & doors
  • Electronics housings
  • HVAC & ducting
  • Automotive trim
  • Enclosure hinges
  • Tool-free assembly

MBT 450/13 FAQ

MBT 450/13 – CNC Hydraulic Press Brake FAQ

Answers to the most common questions about the MBT 450/13 – our 450-ton, 13 ft flagship CNC hydraulic press brake, engineered for the North American market and 24/7 production.

1. Basics & Applications

What is the MBT 450/13?

The MBT 450/13 is a heavy-duty 450-ton, 13 ft CNC hydraulic press brake designed for industrial-grade production. It combines closed-loop Y1/Y2 control, a DELEM DA-53T touch CNC, Bosch-Rexroth hydraulics and SUNNY industrial pumps in a one-piece welded, stress-relieved frame. The machine is configured specifically for the U.S. market (typical 460 V / 60 Hz power, ANSI B11.3 and OSHA-oriented safety concepts).

What types of work is this press brake designed for?

The MBT 450/13 is built for demanding multi-shift operations in:

  • Aerospace and defense components that require tight tolerances and high repeatability
  • Heavy equipment – construction, mining and agricultural frames, brackets and structural parts
  • Energy and infrastructure – power generation, towers and utility structures
  • Job shops and contract manufacturers running high-mix / low-volume work

The 13 ft bending length and 450-ton nominal force make it suitable for both long profiles and heavy plate fabrication.

What materials can the MBT 450/13 bend?

Typical materials include mild steel, high-strength steels (including AR grades), stainless steel and aluminum. Exact thickness capability depends on material tensile strength, die opening and bending method (air bend vs. bottoming/coinage). We provide bending charts and can pre-check your sample parts during the quotation stage.

2. Capacity & Technical Specifications

What are the main technical specs of the MBT 450/13?

Key specifications (typical U.S. configuration):

  • Press force: 450 U.S. tons (nominal)
  • Bending length: 13 ft (≈ 157 in)
  • Distance between frames: 122 in
  • Throat depth: 15.7 in
  • Ram stroke: 11.8 in
  • Open height / max opening: 23.6 in
  • Backgauge travel (X): 31.5 in
  • Y-axis repeatability (typ.): ≤ ±0.0004 in (±0.01 mm)

Full specification sheets and GA drawings are included with the formal quotation package.

What is the footprint and weight of the machine?

Typical overall dimensions:

  • Overall length: approx. 177 in
  • Overall width: approx. 96.5 in
  • Overall height: approx. 138 in
  • Net weight: ≈ 68,000–69,000 lb (around 31,000 kg)

The frame is a one-piece welded, stress-relieved construction. We recommend a reinforced concrete foundation with at least 250 psi floor loading capability. A detailed layout and foundation drawing are provided before installation.

What power and utilities are required?

Standard U.S. configuration:

  • Main motor: 36 HP (approx. 26.9 kW) Siemens
  • Power: 460 V, 3-phase, 60 Hz (other voltages on request)
  • Hydraulic system: SUNNY pump, Bosch-Rexroth proportional valves, NOK sealing, hydraulic tank typically 100–130 gal

We will review your plant power and grounding conditions before shipment to make sure the configuration matches your facility.

3. Control, Precision & Options

How accurate is the machine?

The MBT 450/13 uses FAGOR optical scales with 0.0001" resolution and a closed-loop Y1/Y2 system. The scales are mounted directly on the frame, so positioning is independent of cylinder stretch and oil temperature. Typical Y-axis repeatability is ≤ ±0.0004 in. Electromechanical crowning is standard, keeping the bend angle consistent across the full 13 ft length.

What CNC control does the MBT 450/13 use?

The standard control is the DELEM DA-53T touch CNC. It offers angle and depth programming, 3D simulation, collision detection, material libraries, job storage, and easy switching between U.S. and metric units. Offline programming and Industry 4.0 connectivity packs are available as options if you want to prepare programs from the office or connect the machine to MES/ERP systems.

Which backgauge axes are included and which are optional?

The base machine includes an X-axis backgauge with 31.5 in travel and precision fingers. Optional CNC axes include:

  • R-axis: programmable finger height for stepped parts and return flanges
  • Z1/Z2 axes: lateral positioning for working with multiple parts and segmented tooling
  • X1/X2 axes: independent left/right depth for tapered and asymmetric bends

These options reduce setup time and make complex profiles repeatable in production.

What productivity and handling options are available?

Typical productivity options:

  • Heavy-duty front sheet support arms with ball transfers and length scales
  • Motorized sheet followers for thick plate and long flanges
  • Extended backgauge systems for deep boxes and non-standard parts

During the proposal we match these options to your part sizes, thicknesses and staffing plan (single-operator vs. team handling).

What tooling and clamping systems can be supplied?

The MBT 450/13 supports common U.S. and European tooling styles. We offer:

  • Hydraulic WILA-style clamping on ram and bed for fast tool changes
  • Universal starter tooling packages for common gauges and angles
  • Application-specific tooling based on your part drawings (boxes, channels, large radii, offsets, hems, etc.)

All tooling is checked against machine tonnage and bending charts to stay within safe load limits.

4. Safety & Compliance

Is the MBT 450/13 compliant with U.S. safety standards?

The machine is engineered to comply with ANSI B11.3 and OSHA press brake safety requirements when equipped with an appropriate guarding package. We always review your risk assessment, parts and plant standards to finalize the safety concept before installation.

What safety and laser guarding options are available?

Available safety options include:

  • Front laser safety / light curtains for the bending zone
  • Side-mounted laser scanners for long profiles that extend past the side frames
  • Laser bend-line projection for visual alignment and quick setup

All systems are supplied with documentation, parameter settings and operator training so your safety and maintenance teams know exactly how the guarding works.

5. Installation, Training & Service

What is included with installation and training?

An installation and training package can be added to your order. Typical scope includes machine placement and leveling, hydraulic and electrical checks, initial tooling setup, basic and advanced part programming, safety review and daily/weekly maintenance procedures. Training is tailored to your operator skill level and part mix.

What kind of warranty and support are offered?

The MBT 450/13 is supplied with a standard U.S. warranty, and an extended warranty package is available for customers running multi-shift or critical-path production. We support the machine with remote technical assistance, spare parts and (where applicable) on-site service. Exact warranty terms will be confirmed in your quotation.

Are spare parts standard and available in North America?

Yes. Major components are from globally recognized brands such as Siemens, Bosch-Rexroth, SUNNY, FAGOR, DELEM and Schneider. This reduces lead time for replacement parts and makes long-term maintenance easier for U.S. facilities.

6. Engineering Support & Joint Library

Can you help us validate our parts and bending strategy?

Yes. As part of the engineering consultation we can review your DXF/STEP/PDF files, recommend tooling, estimate tonnage, check minimum flange lengths and suggest the most efficient bend sequences. For repeat production we can also help optimize setups around your tooling library and available automation.

What is the “Locking Joint Variant” library mentioned in your documentation?

Our Locking Joint Variant chart is a design reference with 30 typical hook, snap, clamp, hinge and pocket-style joints used in sheet metal and plastic parts. It is a concept library for engineers and customers to discuss how components can snap, hook, clamp or hinge together. We use it to align engineering language with customer language and to select appropriate tooling and forming strategies on machines like the MBT 450/13.

7. Bending Force & Calculator

How do you calculate the required bending force for a part?

For air bending we use a standard metric-based formula:

FkN = (1.42 × TS × S² × L) / (1000 × V)

where TS is tensile strength (MPa), S is thickness (mm), L is bend length (mm), and V is die opening (mm). The on-page calculator converts your inch inputs to metric, evaluates force in kN and then shows the result in U.S. short tons, plus the percentage of MBT 450/13 capacity used. For bottoming, coinage, high-strength steels or special tooling, additional safety factors and catalog limits must be applied.

How much of the 450-ton capacity can I safely use in production?

As a general guideline for air bending we recommend staying comfortably below about 80 % of nominal capacity for repetitive production work. The calculator on the product page will flag jobs that are close to or above the nominal 450-ton limit so we can review tooling and process together before you commit to a specific setup.

8. Purchasing & Quotation

What is included in the base price of $188,500?

The indicated base price refers to the premium U.S. configuration of the MBT 450/13 and typically includes:

  • 450-ton, 13 ft monoblock frame with closed-loop Y1/Y2 and FAGOR scales
  • DELEM DA-53T CNC with 3D simulation and collision detection
  • Standard X-axis backgauge with 31.5 in travel
  • Electromechanical crowning as standard
  • Premium hydraulic and electrical component package (Bosch-Rexroth, SUNNY, Siemens, Schneider, etc.)

Exact scope, tooling, safety package, freight and installation are confirmed in a formal quotation.

How do I request a detailed quote and ROI analysis?

You can submit your configuration from the product page and share sample parts in DXF/STEP/PDF format. Our engineering and sales team will prepare a U.S.-spec quotation, a proposed safety concept, layout drawing, bending charts and estimated cycle times and payback period based on your material mix, labor rates and production volume.

Do you offer financing or installment options?

Yes, installment and leasing options may be available through our partners for qualifying customers. Details, terms and limits (such as maximum order value) are shown at checkout and can be discussed directly with our sales team.


Don’t see your question here? Use the contact form or “Request Engineering Consultation” button on the product page and our team will be happy to review your application in detail.
