FlexLine CF1530 Pro Coil-Fed Fiber Laser Cutting System NEW
Couldn't load pickup availability
- Max Coil Weight: 22,000 lbs
- Max Feeding Speed: 393β³/min
- π‘οΈ 2-Year U.S. Warranty
- π Advanced Safety & Environmental Protection
- β CE, FDA, ETL Certified for U.S. Market
- π° 30-Day Money-Back Guarantee
- π LIVE U.S. Support β 24/7/365
- π Instant delivery from Illinois warehouse
Share

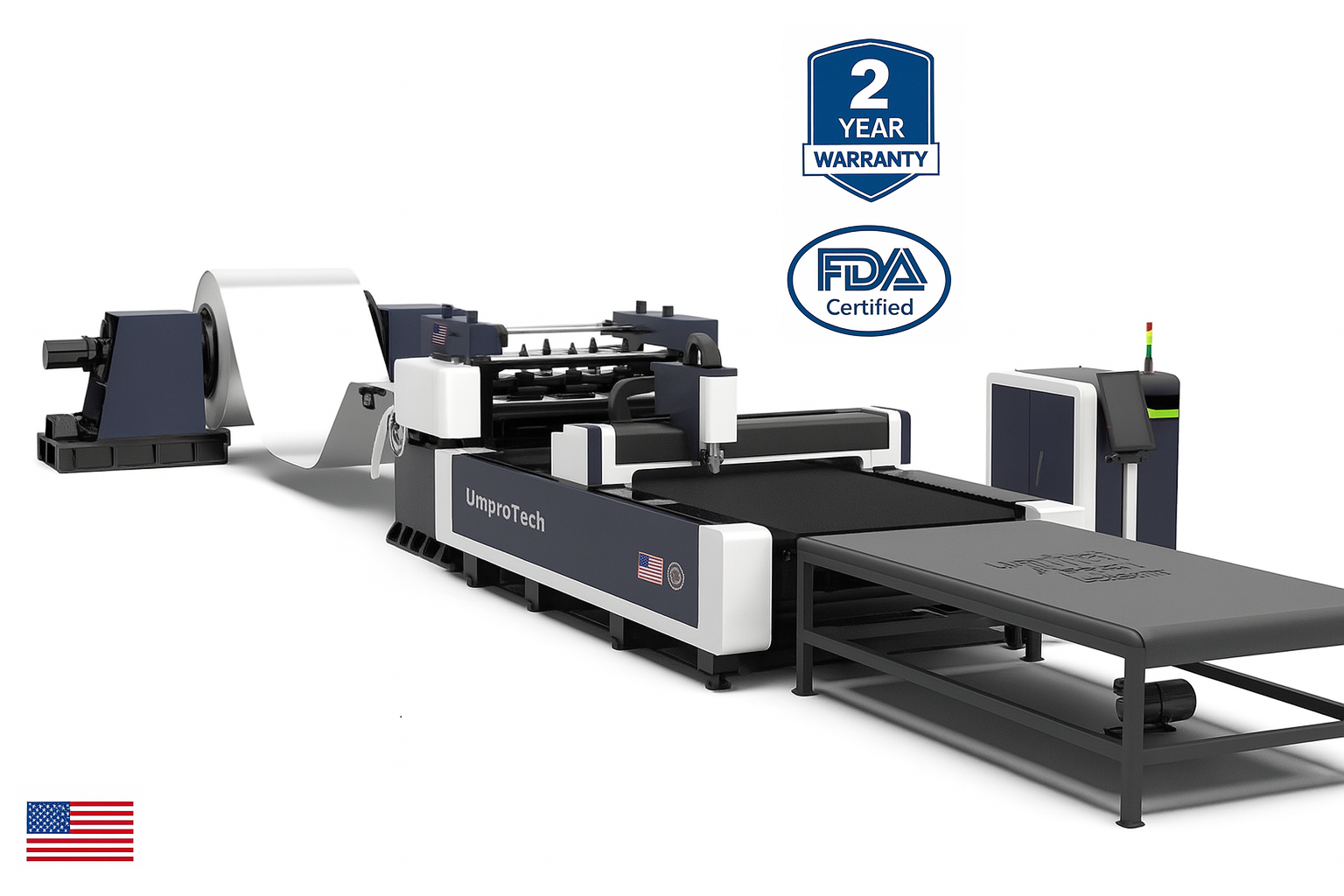

FlexLine CF1530 Pro Coil-Fed Fiber Laser Cutting System
Unleash the Power of Automated Sheet Metal Fabrication
Introducing the UmproTech FlexLine CF1530 Pro
America's Most Advanced Coil-Fed Fiber Laser Cutting System
Experience Next-Level Productivity
The UmproTech FlexLine CF1530 Pro is purpose-built for U.S. manufacturers who demand speed, accuracy, and full automation in sheet metal processing. This state-of-the-art system transforms your workflow β from raw coil loading to precision laser cutting β with minimal operator intervention. Engineered for high-volume production and seamless integration into your shop, FlexLine maximizes labor efficiency, improves yield, and guarantees consistent, high-quality results shift after shift.
Full Automation
From coil loading, uncoiling, leveling, and material positioning to laser cutting β the FlexLine manages every step.
High-Speed Precision
Achieve feed rates up to 393β/min and cutting speeds up to 5500 in/min, with Β±0.002" accuracy.
Heavy-Duty Construction
Robust steel tubular frame, rolling blade worktable, and premium drive components ensure long-term reliability.
Flexible Laser Power
Choose from 1.5kW up to 6kW to match your production needs and material types.
Intelligent Material Handling
Auto-guidance maximizes yield, reduces waste, and eliminates costly operator errors.
Advanced Leveling
Precision leveling and stress relief create consistently flat sheets for top-quality finished parts.
Comprehensive U.S. Support
24/7/365 technical assistance, maintenance reminders, and preventative care programs.
Integrated Safety & Compliance
Meets all U.S. and international standards β your insurance against risk.
Why Choose UmproTech FlexLine?
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FlexLine CF1530 Pro |
| Max Coil Size (LΓWΓT) | 118β³ Γ 59β³ Γ up to 0.12β³ |
| Standard Coil Inner Diameter | 20β³ |
| Max Coil Outer Diameter | 55β³ |
| Max Coil Weight | 22,000 lbs |
| Max Feeding Speed | 393β³/min |
| Leveling Accuracy | Β±2 mm/mΒ² |
| Max Cutting Area (LΓW) | 118β³ Γ 59β³ |
| Laser Power Options | 1.5kW β 6kW |
| X/Y-Axis Positioning Accuracy | Β±0.002β³ (Β±0.05 mm) |
| X/Y-Axis Repeatability | Β±0.0008β³ (Β±0.02 mm) |
| Power Supply | 3-Phase 480V, 60Hz (U.S. Standard) |
| Certifications | CE, FDA, ETL Approved |
| Max Acceleration | 1.5G |
| Worktable Type | Heavy-Duty Rolling Blade |
| Repositioning Accuracy | Β±0.001β³ (Β±0.03 mm) |
| Coil Sheet Thickness | 0.03β³β0.1β³ (0.8β2.5 mm) |
| Machine Frame | Welded Steel Tubular Bed |
| Laser Source | Multiple Options Available |
| Focusing | Auto / Manual |
| Max X/Y Axis Speed | 5500 in/min (140 m/min) |
| Leveling Speed | up to 790 in/min (20 m/min) |
Real Results. Real American Manufacturers.
We upgraded to FlexLine and immediately doubled throughput. Installation was seamless, and the support team went above and beyond.
β M. Scott, Illinois
Laser accuracy is outstanding. We're cutting with minimal waste and hitting tolerances every time.
β R. Evans, Texas
U.S.-based support gives us total confidence. Any issue β they're on it, fast.
β J. Wright, Michigan
Applications & Industries
The FlexLine CF1530 Pro is built for versatility and high-volume production across:
Materials
- Stainless steel
- Carbon steel
- Aluminum
- Titanium
- Copper
- And more
Industries
- Automotive
- HVAC
- Aerospace
- Electronics
- Construction
- Appliances
Typical Parts
- HVAC ductwork
- Electrical cabinets
- Automotive panels
- Appliance frames
- Building panels
- Custom sheet metal components
Complete U.S. Service & Support
Why Leading Shops Trust UmproTech
Local Inventory & Rapid Delivery
Machines in stock β ships anywhere in the U.S. in just 7β14 days.
Full Transparency
All quotes include delivery, install, training, and warranty β no hidden fees.
Flexible Financing
0% APR, equipment leasing, and trade-in options β upgrade your operation, not your cashflow headaches.
Made for the U.S. Market
Power supply, certifications, and safety built to U.S. standards.
Turnkey Experience
From first call to full production β we're your single point of contact.
Ready to Upgrade Your Shop?
Get America's most advanced coil-fed laser β and a partner for your success.
