8' 90-Ton E22 Hydraulic Press Brake | UmproTech HBM 90/2500 – Precision & Reliability NEW

High-Speed Fiber Laser Cutter — USA Warranty
$29,900.00 USD
$45,500.00 USD $29,900.00 USD
Sale Sold out
Shipping calculated at checkout.

🇺🇸 UmproTech HBM 90/2500 — 8' 90-Ton Hydraulic Press Brake

Precision hydraulic press brake engineered for U.S. fabricators • E-series CNC control • Local service & financing


Key Specifications

Press Force
90 tons (830 kN)
Bending Length
98.4" (2500 mm)
Motor Power
10 HP
Working Speed
0.43 in/s (11 mm/s)
Machine Weight
10,127 lbs
Controller
E-series (E22/E21S) CNC — quick setup, angle programs
In-Stock USA (Chicago) 2-Year Parts & Electronics Warranty Setup & Operator Training Included Financing & Leasing Available

U.S.-backed industrial equipment, made affordable with local service and financing.


See more hydraulic press brakes for sale or explore our fiber laser cutting machines.



View full details

8' 90 Ton E22 HBM 90/2500

COMPACT POWER. ULTIMATE PRECISION. BUILT FOR AMERICAN METAL FABRICATION.

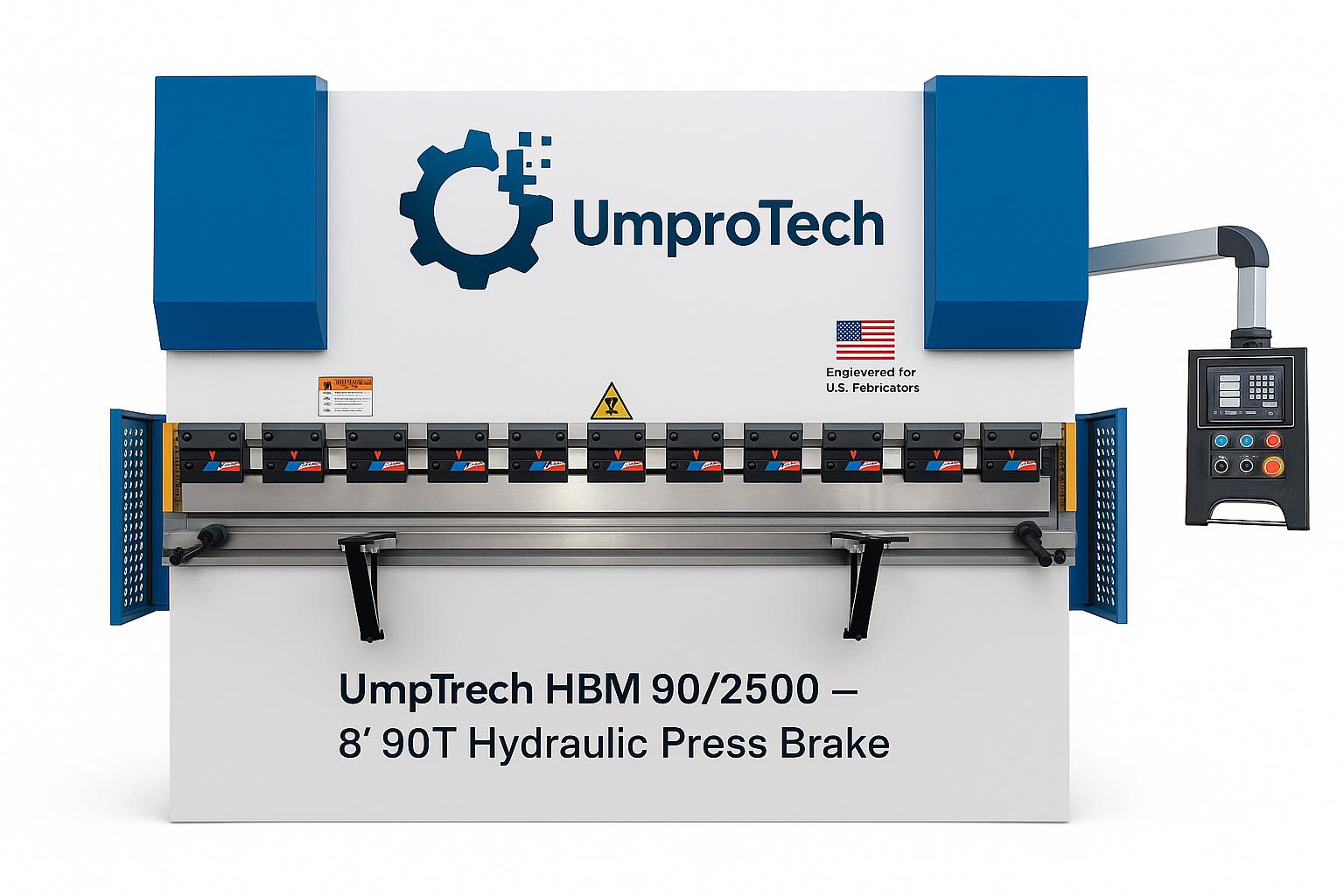

COMPACT CNC UmproTech HBM 90/2500 8-foot 90-ton CNC hydraulic press brake with E22 controller
2-Year Premium Warranty
ISO 9001 Certified
American-Owned
Nationwide Installation

Compact Footprint

Space-efficient 8' design for small and mid-size shops

E22 Controller

Intuitive CNC with quick setup and angle programs

8' 90-Ton CNC Hydraulic Press Brake

Model HBM 90/2500 • E22 Controller

Unlock next-level performance with the UmproTech HBM 90/2500. Built for job shops and light production, it delivers 90-ton forming power, CNC automation, and reliable U.S. support — all in a compact, operator-friendly footprint.

In Stock — Fast Shipping from Illinois

Standard Features

  • Ram Deflection Adjustment: consistent, accurate bends every cycle
  • Mechanical Ram Depth + Torsion Bar: parallelism and repeatability
  • Forged Cylinders & All-Steel Frame: industrial durability
  • Three-Speed Ram: rapid approach, precise bend, fast return
  • Programmable Bottom Dwell: for complex forming
  • Operation Modes: inching • single • continuous
  • American Tang Tooling: 1/2" × 5/8", supports deep box bending
  • Bed Tooling Slots & Capture Clamps: flexible setups

Key Specifications

Press Force
90 tons (830 kN)
Bending Length
98.4 in (2500 mm)
Distance Between Housings
81.8 in
Throat Depth
9.8 in
Ram Stroke Adjustment
1.96 in
Ram Travel
3.93 in
Open Height
13.7 in
Rapid Approach Speed
2.4 in/s
Rapid Return Speed
2.0 in/s
Backgauge Travel
24 in
Hydraulic Oil Capacity
60 gal
Motor Power
10 HP
Net Weight
10,127 lb
Machine (L × W × H)
120 × 64 × 90 in

Why Choose UmproTech?

Engineered for U.S. shops: compliant safety & operation • E22 automation: faster setups & repeatability • Industrial build: forged hydraulics • Operator safety: light curtain included • U.S. support: ships from Illinois, nationwide training/service.

Request Custom Quote Book a Live Demo – Chicago
Speak with an Expert: +1 (800) UMPROTECH

See more hydraulic press brakes for sale, explore our fiber laser cutting machines, or check financing from $5xx/mo*.
