6000W S22 Fiber Laser Cleaning Rust Removal Machine NEW

High-Speed Fiber Laser Cutter — USA Warranty
$19,999.00 USD
$29,900.00 USD $19,999.00 USD
Sale Sold out
Shipping calculated at checkout.

🇺🇸 UmproTech S23 — 6000W Fiber Laser Cleaning & Rust Removal

The 6000W continuous-wave laser cleaning system sets a new standard for industrial surface prep. Remove rust, paint, varnish, grease, oxides, carbon build-up, and stubborn coatings from metals and more — fast, repeatable, and chemical-free.

Faster & more versatile: Continuous-wave delivery enables significantly higher processing speeds than typical pulsed systems. Flexible parameters, ergonomic handheld head, and clean-at-any-angle access boost productivity on large parts and tight spaces.
Eco-friendly
No chemicals or media. Minimal secondary waste — primarily dry particulates.
Flexible deployment
Operate on the shop floor without a blast booth; use standard PPE & laser safety controls.

Comes fully equipped: step transformer (step-down from 480 V or step-up from 220 V to 380 V three-phase) and integrated air compressor with filtration protect optics and extend lens life.

Key Specifications
Laser Power
6000 W (continuous; adjustable modulation/frequency)
Wavelength
≈ 1064 nm (near-IR fiber laser)
Cleaning Width
Up to ~150–200 mm (S23 scanning head; pattern-selectable)
Typical Throughput
~20–40 m²/hour (material, coating & settings dependent)
Input Power
380–480 V, 50/60 Hz, 3-phase (see nameplate for amperage)
Cooling
High-capacity industrial chiller, auto interlocks
Included
S23 handheld scan head, 10 m armored fiber, chiller, transformer, air compressor/filtration, starter PPE kit, U.S. setup & training
In-Stock USA (Chicago) 2-Year Parts & Electronics Warranty Setup & Operator Training Included Financing & Leasing Available
Safety: Class 4 laser product. Follow ANSI Z136.1 practices, use appropriate PPE (laser eyewear, gloves, respirator as needed), and ensure controlled access & fume extraction.

See more laser cleaning machines or explore our fiber laser cutters.

View full details

UmproTech 6000W Laser Cleaning CW UT-LCM60CW

UmproTech CW 6000W Handheld Laser Cleaning System

The UmproTech CW 6000W Handheld Laser Cleaning System offers unmatched power, productivity, and control for large-scale, industrial cleaning and surface preparation. Engineered with FMC 6000 and RUIDA FWH60 C30A core technology, this system delivers rapid, precise, and contactless cleaning of rust, coatings, paint, and more.

Key Features

⚡ Extreme 6000W Cleaning Power
FMC 6000 and RUIDA FWH60 C30A deliver stable, continuous or modulated output for the most demanding industrial tasks.
🎛️ Multi-Mode Operation
Switch instantly between continuous (CW) and modulated cleaning, with power tunability from 10% to 100%.
🔄 Ultra-Fast Scanning
Handheld gun supports advanced swing patterns — line, circle, infinity, dot, oval, triangle — up to 40,000 mm/s scan speed.
💧 Robust Water Cooling
High-capacity water cooling maintains performance and stability for extended, nonstop operation.
📏 Extra-Long Fiber Delivery
20m delivery fiber (50 μm / 100 μm core) with QBH interface for maximum reach and flexibility on any jobsite.
📦 Heavy-Duty, Compact Design
Industrial housing and portable handheld gun — easy to deploy for mobile or in-plant applications.

📐 Technical Specifications

🆔 Laser Source
FMC 6000 / RUIDA FWH60 C30A
⚡ Nominal Output Power
6000W
🔄 Operation Mode
Continuous (CW) / Modulated
🌈 Central Wavelength
1080 ± 3 nm
🔄 Power Tunability
10% – 100%
🔁 Max Modulation Frequency
20 kHz
📈 Output Power Instability
< 3%
🟠 Fiber Core Diameter
50 μm / 75 μm
🔴 Red Laser Pointer
Yes
🔌 Beam Delivery Optics
QBH Interface
🟢 Output Fiber Diameter
50 μm / 100 μm
💎 Beam Quality (BPP)
< 4 mm·mrad
🔗 Delivery Fiber Length
20 m
🔌 Operating Voltage
380V ±10%, 50/60Hz
⚡ Max Power Consumption
18,000W
💻 Control Model
External AD / Local AD
🌡️ Ambient Temperature
5°C – 40°C (41°F – 104°F)
💧 Ambient Humidity
< 70%
❄️ Cooling Method
Water Cooling
📦 Dimensions (L×W×H)
483 × 125 × 870 mm (19.0″ × 4.9″ × 34.3″)
⚖️ Weight
< 83 kg (183 lbs)

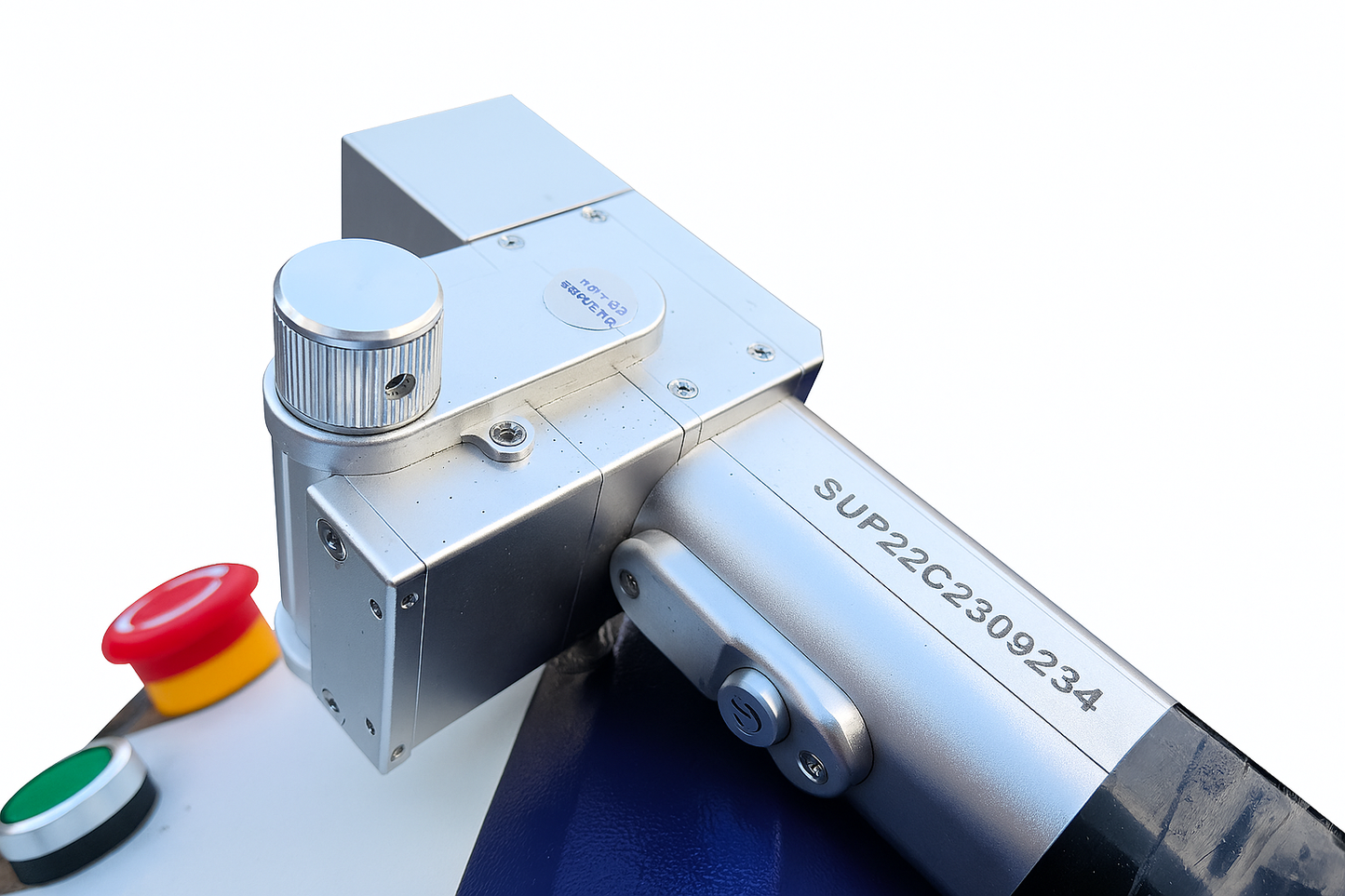

🔫 Controller & Laser Gun
RUIDA FWH60 C30A
🔌 Fiber Interface
QBH
⚡ Rated Power
≤ 6000W
🌈 Wavelength
1080 ± 5 nm
🔭 Collimation Focal Length
75 mm
🎯 Focus Focal Length
1500 mm
🔄 Swing Types
Line, Circle, Infinity, Dot, Oval, Triangle
📏 Scanning Width
200 – 500 mm
⚡ Scanning Speed
40,000 mm/s
💨 Auxiliary Gas Pressure
≥ 0.5 – 0.8 MPa
🪶 Gun Net Weight
2.2 kg (4.85 lbs)
🔎 Effective Clear Aperture
20 mm (0.79″)

Why Choose UmproTech?

🏭
U.S. Based Support
Local warehouse, technical support, and installation services across North America.
🛡️
Comprehensive Warranty
2-year warranty coverage with lifetime technical service support.
🎓
Operator Training
Free comprehensive operator training included with every system purchase.
Ready to Transform Your Production?
Request a personalized demo or detailed technical specifications for the Laser Cleaning CW 6000W UT - LCM60CW today.
