5'x10' Fiber Laser for Metal Sheet Cutting Machine 1530S Open Type NEW
High-Speed Fiber Laser Cutter β USA Warranty
Regular price
$32,500.00 USD
Regular price
Sale price
$32,500.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

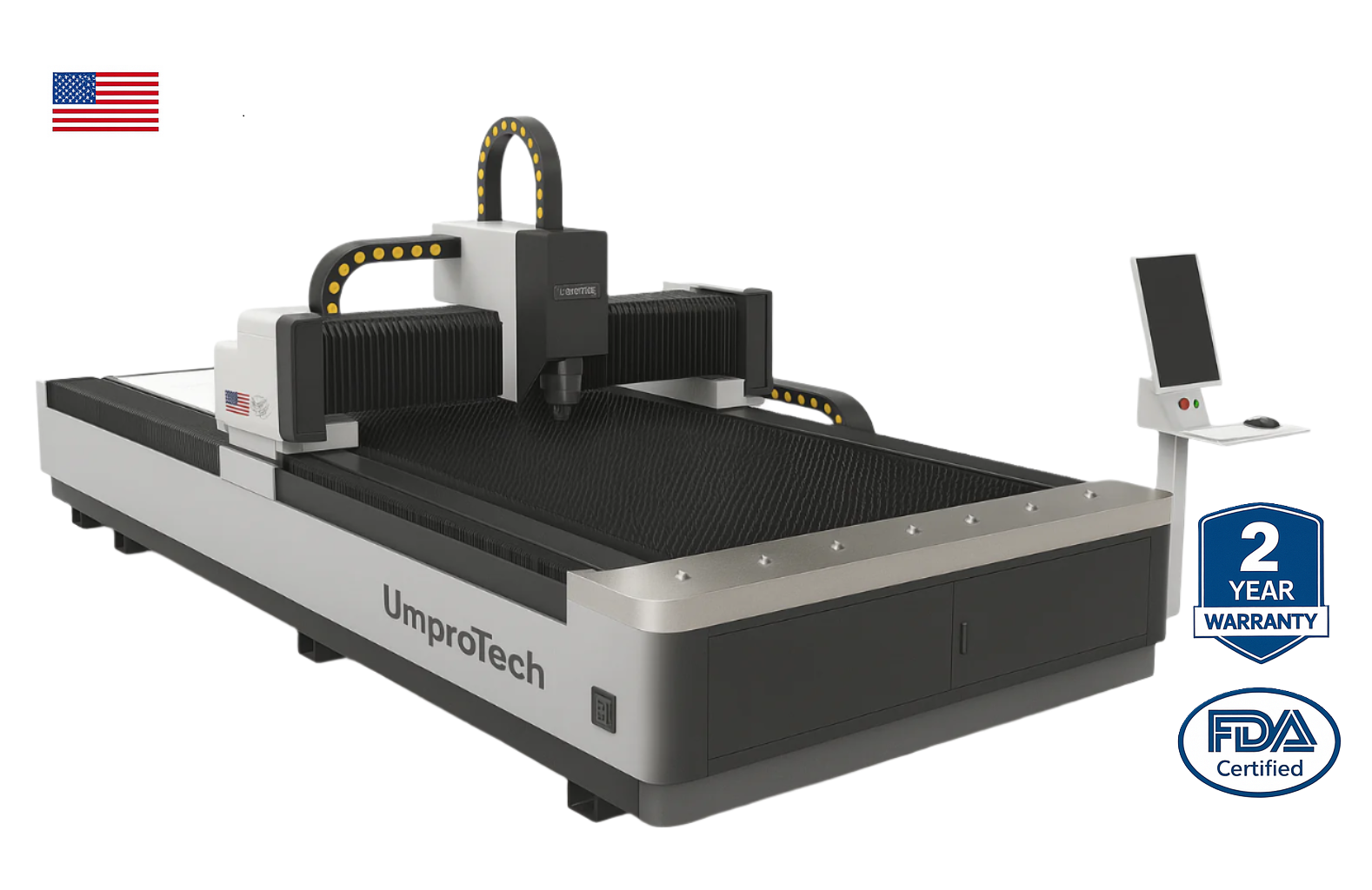

5'x10' Fiber Laser for Metal Sheet Cutting Machine 1530S Open Type Fiber Laser Cutter
5' x 10' Flatbed High-Speed Fiber Laser Cutting Machine
The UMP-1530S is a 5' x 10' flatbed laser cutting machine designed for high-speed, precision cutting of sheet metal. Built to deliver fast, accurate cuts, this fiber laser cutter is essential equipment for any sheet metal fabricator. Benefit from low operating costs, minimal maintenance, and reliable performance that keeps your production moving efficiently.
- High-speed, high-precision fiber laser cutting for steel, stainless, aluminum, and more
- Large 5' x 10' working area for maximum productivity
- Low operating costs and minimal maintenance
- User-friendly controls for quick setup and operation
- Rugged construction for 24/7 industrial use
- Includes US warranty, expert support, and fast delivery from our Illinois warehouse
Ready to take your fabrication to the next level?
Contact our team for expert advice, a quote, or to schedule a live demo.
Contact our team for expert advice, a quote, or to schedule a live demo.
Share
5'x10' Fiber Laser for Metal Sheet Cutting Machine 1530S Open Type
UmproTech 1530S Fiber Laser Cutting System
Closed Commercial Specification (U.S. Market). Precision fiber laser cutter for industrial fabrication, engineered with premium global components for maximum accuracy, reliability, and long service life. Full U.S. support, training, and warranty included.
β‘ Raycus Fiber Laser Source
Available in 1500W / 2000W / 3000W / 6000W. 100,000 hours lifetime, 2-year warranty.
π BOCI / Raytools Autofocus Head
Precise, adaptive cutting with BCS100 height controller, integrated water cooling.
ποΈ All-Welded Steel Frame
Stress-relieved, heat-treated for maximum rigidity and vibration resistance.
βοΈ Aviation Aluminum Gantry
Cast, thick-walled, ultra-rigidβzero deformation over time.
π€οΈ LAAK Linear Guides
High-precision, square-section, Taiwan-made for smooth, accurate motion.
βοΈ Helical Rack & Pinion (YYC, Taiwan)
On X and Y for high speed and accuracy, zero backlash.
β¬οΈ TBI Ball Screw Z-Axis
Precision, zero-backlash vertical control for complex jobs.
π§ S&A Industrial Chiller
Automatic water cooling for continuous performance and long life.
π§° Centralized Lubrication
Automatic, extends service life, reduces maintenance.
πΉοΈ Raytools Control System
Windows-based console, ergonomic remote for easy setup and safe operation.
π Model
1530S
π Working Area
1530 Γ 3050 mm (60β³ Γ 120β³)
β‘ Laser Source
Raycus, 1500W / 2000W / 3000W / 6000W
π¬ Laser Head
BOCI / Raytools (Autofocus)
π Laser Wavelength
1070 nm
β³ Expected Laser Lifetime
100,000 hours
π‘οΈ Source Warranty
2 years
βοΈ Cooling System
S&A Industrial Chiller
π€οΈ Linear Guides
LAAK, Taiwan, square profile
βοΈ Drive System X/Y
Dual-driven helical rack & pinion, YYC (Taiwan)
β¬οΈ Drive System Z
TBI Ball Screw (Taiwan)
βοΈ Reducer
SHIMPO / MOTOREDUCER (Japan)
π Pneumatics
SMC / AirTac (Japan)
π Electrical
Delixi / SCHNEIDER
π Height Sensor
Automatic
π§° Lubrication
Centralized automatic system
πΉοΈ Control System
Raytools
π Supported Formats
CAD, CorelDRAW, PLT, AI, DXF
π― Positioning Accuracy
Β±0.03 mm
π Repeatability
Β±0.02 mm
π Max Acceleration
up to 1G
π Input Voltage
380V, 50Hz
ποΈ Max Cutting Speed
30 m/min (1,181 in/min)
π£οΈ Max Rapid Traverse
100 m/min (3,937 in/min)
π Minimum Kerf Width
0.12 mm
π¦ Dimensions
4700 Γ 2300 Γ 1600 mm (185β³ Γ 91β³ Γ 63β³)
βοΈ Total Weight
2,700 kg (5,950 lbs)
Why Choose UmproTech?
π
U.S. Based Support
Local warehouse, technical support, and installation services across North America.
π‘οΈ
Comprehensive Warranty
2-year warranty coverage with lifetime technical service support.
π
Operator Training
Free comprehensive operator training included with every system purchase.
Ready to Transform Your Production?
Request a personalized demo or detailed technical specifications for the UmproTech 5'x10' Fiber Laser for Metal Sheet Cutting Machine 1515S Open Type today.
