5' 30T HBM 30/1600 E22 Hydraulic Press Brake with E22 Controller NEW

High-Speed Fiber Laser Cutter — USA Warranty
$8,900.00 USD
$8,900.00 USD
Sale Sold out
Shipping calculated at checkout.

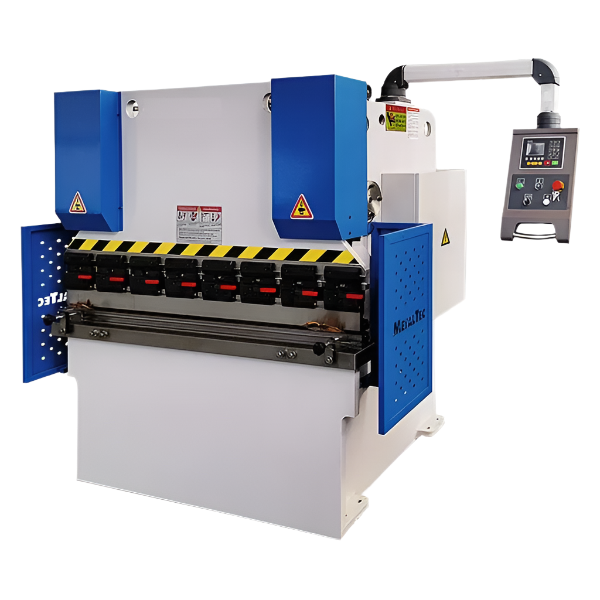

UmproTech 5' 30T HBM 30/1600 E22 Hydraulic Press Brake with E22 Controller
Precision Hydraulic Press Brake
  • Press Force: 30 tons (300 kN)
  • Bending Length: 63" (1600 mm)
  • Motor Power: 5.4 HP (4 kW)
  • Working Speed: 0.31 in/sec (8 mm/sec)
  • Weight: 5,700 lbs
Financing:
  • Request a Quote
  • Leasing Options Available
🇺🇸2-Year Warranty Included
Built for American Industry
View full details

5' 30T HBM 33/1600 E22

COMPACT POWER. AMERICAN PRECISION. ENGINEERED FOR MODERN FABRICATION.
COMPACT CNC UmproTech 5' 44 Ton CNC Hydraulic Press Brake
3-Year Premium Warranty
ISO 9001 Certified
American-Owned
Nationwide Installation

Space-Saving Design

5' footprint fits in tight workshop spaces


E22 Controller

Advanced CNC with intuitive programming interface

30Ton
Power
5'
Footprint
5,700 lbs
Weight

5' 30 Ton CNC Hydraulic Press Brake

Model  5' HBM 30/1600 E22

Bring advanced precision and reliability to your metal shop with the UmproTech 5' 30T CNC Hydraulic Press Brake. Designed for tight spaces, prototype work, and small-to-medium production, this machine delivers robust performance, top-tier safety, and user-friendly CNC automation — all in a compact footprint.

IN STOCK — SHIPS FROM ILLINOIS

Standard Features


  • Ram Deflection Adjustment: Guarantees straight, consistent bends every cycle

  • Mechanical Ram Depth Control & Massive Torsion Bar: Maintains perfect parallelism and repeatability

  • Forged Heavy Duty Cylinder & All-Steel Construction: Built for continuous industrial use

  • Three-Speed Ram: Rapid approach, high-speed bending, and fast retreat for productivity

  • Programmable Bottom Time Delay: Customizable for specialty and complex forming

  • Multiple Operation Modes: Inching, single cycle, and continuous for total process flexibility

  • American Tang Tooling Compatibility: Ram fits standard 1/2" x 5/8" tooling for deep box bending

  • Bed with Tooling Slots & Capture Clamps: Supports a wide variety of tooling and applications

Included Options

CNC 2-Axis Graphic Control (E22)
Sick Model 4000 Light Curtain

Optional Upgrades

Fiessler Akas II Laser Guarding

Pilz PSENvip LED Safety Guarding
Third Axis (Back Gauge Height)
CNC Controlled Mechanical Auto Crown
High Speed Servo Back Gauge
On-site or showroom training packages

Key Specifications

Working Pressure:
30 Tons
Working Table Length:
62"
Distance Between Housings:
52"
Throat Depth:
7.8"
Stroke Adjustment of Ram:
1.96"
Ram Travel:
3.93"
Open Height:
12.5"
Rapid Ram Travel Speed:
2.4"/Sec
Rapid Ram Retreat Speed:
2.0"/Sec
Backgauge Travel:
24"
Pressing Speed:
Tool dependent
Hydraulic Oil Capacity:
36 Gal
Motor Horsepower:
7.5 HP
Net Weight:
5,700 lbs
Machine Length:
65"
Machine Width:
55"
Machine Height:
80"

Why Choose UmproTech 5' 33T CNC Press Brake?

Designed for U.S. Fabricators: 100% American safety and performance standards
Advanced CNC Automation: E22 controller streamlines setup, programming, and repeat production
Heavy-Duty Build: All-steel frame, forged components, and industrial hydraulics for maximum reliability
Operator Safety: Sick light curtain included; advanced laser/LED guarding available
Compact, Powerful, and Flexible: Perfect for prototyping, small runs, and space-constrained shops
U.S. Warehouse & Support: Fast delivery from Illinois, nationwide service and training

Speak with an Expert: 1-800-UMPROTECH
