MAXphotonics Laser Source (500–8 kW)
Stable single-module CW beam; thin-to-thick metals, U.S. duty.
1
/
of
3
UmproTech
UmproTech UM 1515e — 4×4 Fiber Laser Cutter NEW
High-Speed Fiber Laser Cutter — USA Warranty
Regular price
$19,500.00 USD
Regular price
Sale price
$19,500.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

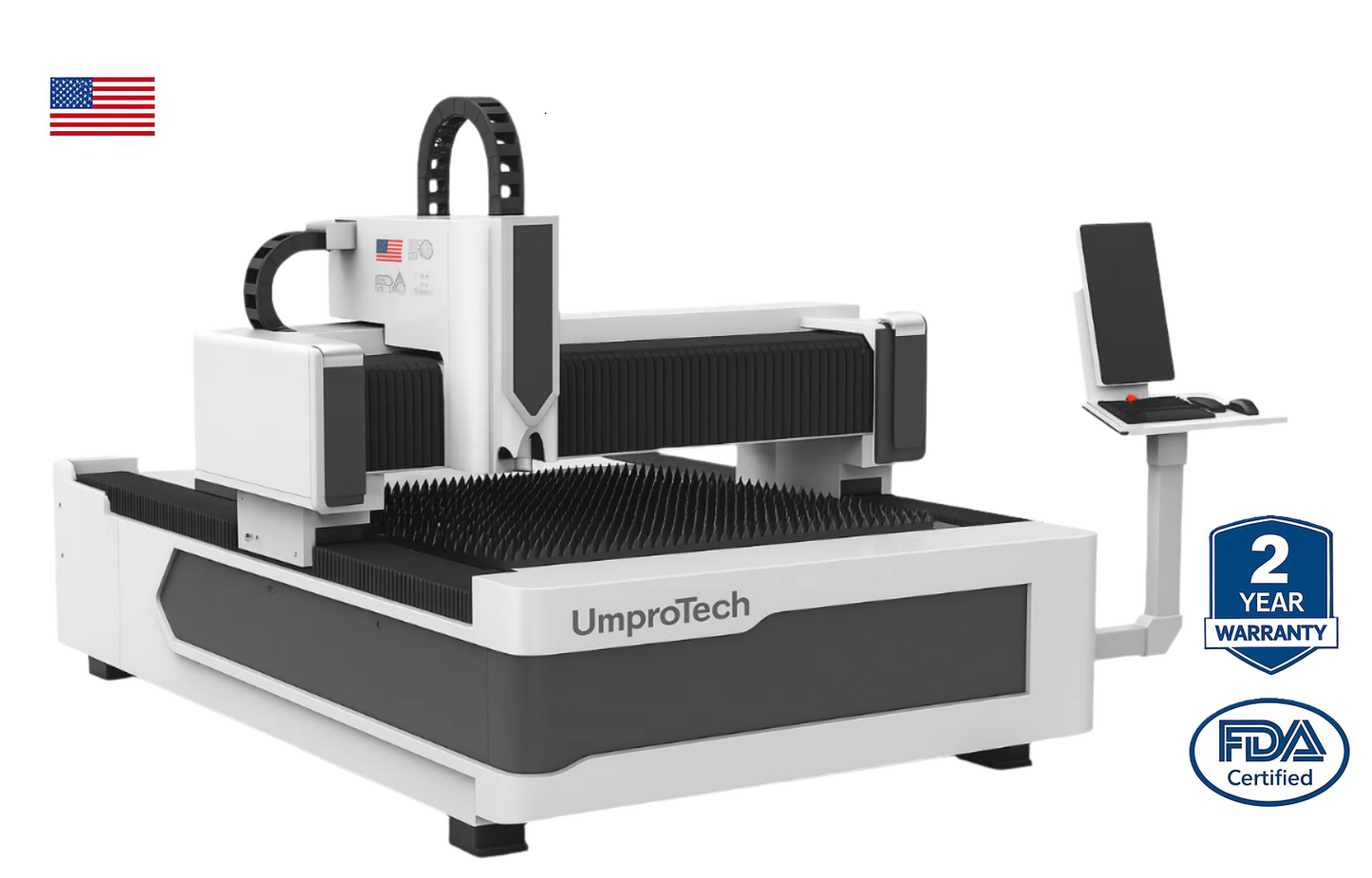

🇺🇸 UMP-1515E — 4'×4' Fiber Laser Cutter
4'×4' Flatbed High-Speed Fiber Laser Cutting Machine
The UMP-1515E is a compact, production-ready fiber laser built for fast, accurate sheet-metal cutting. Expect low operating costs, simple setup, and reliable performance backed by U.S. service & warranty.
- High-speed, high-precision cutting on steel, stainless, aluminum, copper, and more
- Compact 4'×4' working area for prototyping, short-runs, and tight floor plans
- Low operating costs and minimal routine maintenance
- User-friendly CNC with DXF import, nesting, and auto-height control
- Heavy welded frame and precision drives for stable 24/7 operation
- U.S. warranty, expert support, and fast delivery from our Illinois warehouse
Key Specifications
- Working Area
- 1300 × 1300 mm (4' × 4')
- Laser Power Options
- 1000–3000 W fiber source (select configuration)
- Positioning Accuracy
- Up to ±0.001–0.002" (±0.03–0.05 mm) typical
- Max Traverse Speed
- ~80–120 m/min (application dependent)
- Assist Gas
- O2, N2, or Air (compressor/nitrogen options)
- Drive System
- AC servo drives, precision rack & pinion, linear guides
- Controller
- Industrial CNC with pierce libraries, lead-in/out, micro-joints
In-Stock USA (Chicago) 2-Year Parts & Electronics Warranty Setup & Operator Training Included Financing & Leasing Available
Safety: Class 4 laser system. Follow ANSI Z136.1, use rated eyewear and fume extraction, and secure the work area.
See more fiber laser cutters, laser cleaners, and laser welders.
Share
UmproTech UM 1515e eco — 4×4 Fiber Laser Cutter
UmproTech UM 1515e eco — 4’×4’ MAX Fiber Laser Cutting System
U.S.-ready fiber laser for job shops, prototyping, and production with MAXphotonics source, RayTools head, and Yaskawa motion for reliable accuracy and low cost-per-part.
RayTools BM110 Cutting Head
Enclosed beam path, dual water cooling; longer optics life.
Yaskawa + Shimpo Motion
High speed, repeatability, low maintenance.
CypCut / CypOne Control
Easy nesting, AVC height control; common CAD/CAM formats.
Aviation Aluminum Gantry
Heat-treated rigidity; corrosion-resistant accuracy.
Rack & Pinion Rails
Smooth motion and long service life.
Technical Specifications
Model
UM 1515e eco 4’×4’
Working Area
1300 × 1300 mm (51″ × 51″)
Laser Power
500 W – 8 kW (MAXphotonics)
Cooling
Industrial water chiller
Positioning Accuracy
±0.01 mm (0.0004″)
Max Acceleration
1 G
Max Travel Speed
110 m/min (4,330 in/min)
Drive Power
X 750 W • Y 750 W • Z 400 W
Transmission
Dual rack & pinion
File Formats
DXF, DWG, AI, PLT, Gerber, LXD
Machine Size
1550 × 1550 × 1230 mm (61″ × 61″ × 48″)
Control Cabinet
1150 × 1550 × 750 mm (45″ × 61″ × 30″)
Operating Temp
0–45 °C (32–113 °F)
Operating Humidity
5–95%
Gross Power
17 kW
Gross Weight
≈1200 kg (2,645 lbs)
Options
Rotary for tube cutting
Why Choose UmproTech
U.S.-Based Support
Warehouses in Chicago/LA, on-site install & service nationwide.
Strong Warranty
2-year coverage + lifetime remote tech assistance.
Operator Training
Commissioning and certified operator training included.
Ready to Cut Faster — and Smarter?
Get a U.S.-spec quote, lead time, and sample-cut report for your materials.
FAQ
What materials can it cut?
Carbon/stainless steel, aluminum, brass, copper (power-dependent). Request a sample-cut for your thicknesses.
Lead time & installation?
Typical lead time 4–10 weeks (build + freight). U.S. on-site install, setup, and training included in quote.
Power & gas requirements?
Three-phase power (spec varies by kW). Assist gas: O₂/N₂; we can size compressors and N₂ generators for your shop.
