UmproTech

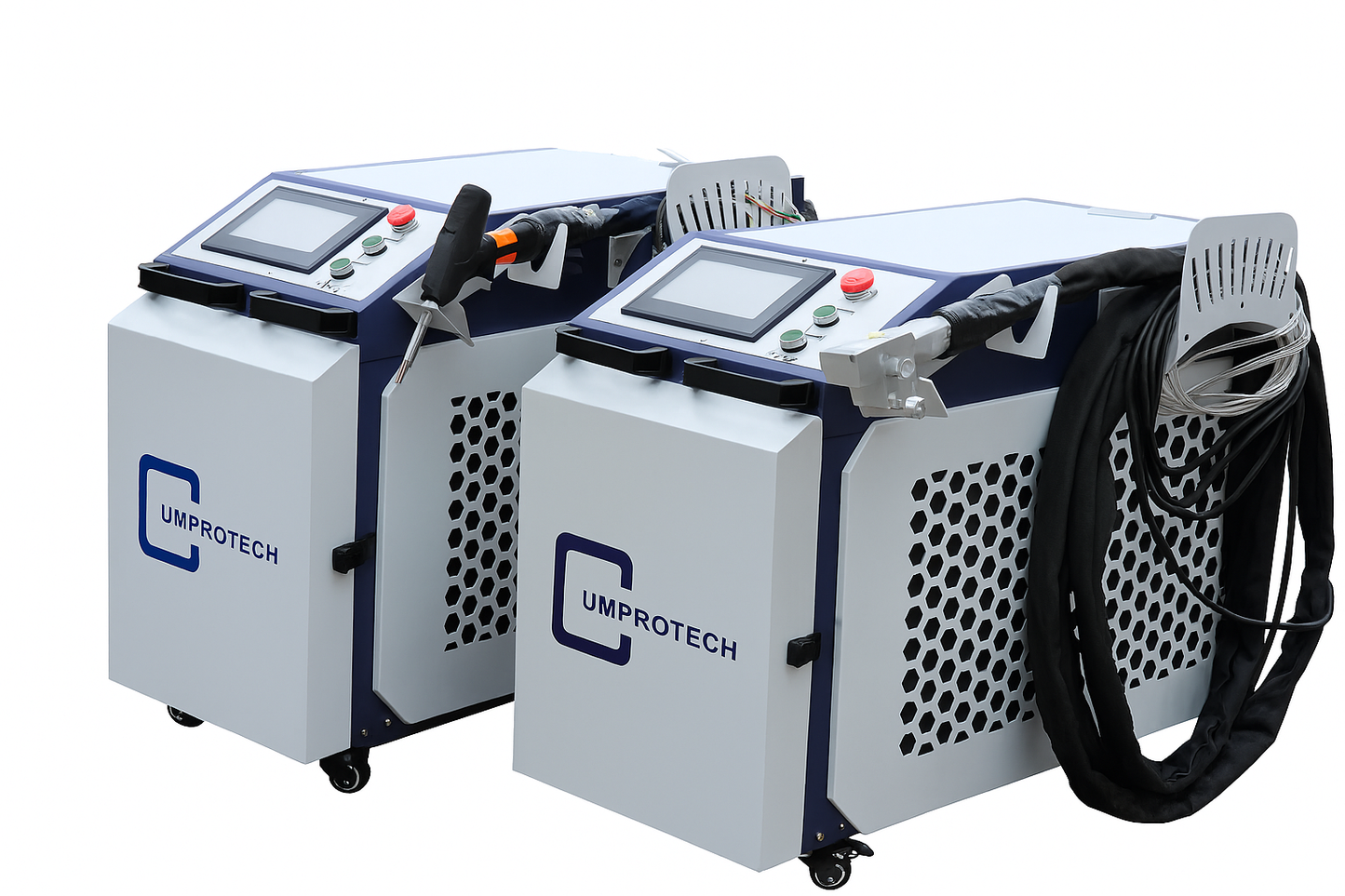

3000W S22 Fiber Laser Cleaning Rust Removal Machine NEW
High-Speed Fiber Laser Cutter — USA Warranty
Regular price
$10,499.00 USD
Regular price
$14,900.00 USD
Sale price
$10,499.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🇺🇸 UmproTech S22 — 3000W Fiber Laser Cleaning & Rust Removal
Revolutionize surface prep and restoration with the 3000W S22 fiber laser cleaner. Rapidly remove rust, paint, oxides, oils, and coatings from metals and industrial components — chemical-free, low-consumable, and production-ready for U.S. shops.
Eco-Friendly & Cost-Efficient
No chemicals or blasting media. Lower operating costs and simplified compliance.
No chemicals or blasting media. Lower operating costs and simplified compliance.
Customizable Precision
Dial in power, frequency, and scan width for delicate cleaning or heavy-duty removal.
Dial in power, frequency, and scan width for delicate cleaning or heavy-duty removal.
Fast & Hassle-Free
Minimal masking and post-cleanup. Save hours on prep across repeated jobs.
Minimal masking and post-cleanup. Save hours on prep across repeated jobs.
- Easy to operate — intuitive S22 scan-head UI and presets
- Low maintenance with industrial chiller and sealed fiber source
- Ideal for fabrication, automotive, MRO, and restoration work
- Consistent, reliable results on steel, stainless, aluminum, copper, and more
Key Specifications
- Laser Power
- 3000 W (continuous; adjustable modulation/pulse)
- Wavelength
- ≈ 1064 nm (near-IR fiber laser)
- Cleaning Width
- Up to ~120–150 mm (S22 scanning head)
- Typical Throughput
- ~12–20 m²/hour (material/contaminant dependent)
- Power Input
- ~220–380 V, 50/60 Hz (see nameplate for exact phase/amperage)
- Cooling
- Integrated industrial chiller
- Included
- S22 handheld scan head, 10 m armored fiber, chiller, starter PPE kit, U.S. setup & training
In-Stock USA (Chicago) 2-Year Parts & Electronics Warranty Setup & Operator Training Included Financing & Leasing Available
Safety: Class 4 laser product. Follow ANSI Z136.1 practices, use proper PPE, and operate by trained personnel.
See more laser cleaning machines or explore our fiber laser cutters.
Share
UmproTech 3000W Laser Cleaning CW UT-LCM30CW
UmproTech 3000W Fiber Laser Cleaning System
The UmproTech 3000W Fiber Laser Cleaning System is the ultimate solution for heavy-duty, industrial-scale removal of rust, paint, and contaminants. Powered by the RFL-C3000S-CE / SUP22C fiber laser and equipped with premium optics, it delivers superior cleaning speed, precision, and uptime for demanding applications.
Key Features
⚡ Ultra-High 3000W Power
RFL-C3000S-CE / SUP22C delivers 3000W of stable, continuous or modulated output for the toughest cleaning jobs.
💎 Superior Beam Quality
Beam quality M² < 1.5 ensures sharp, precise cleaning with minimal heat-affected zone.
❄️ Industrial Water Cooling
Efficient water cooling for 24/7 performance, even in harsh industrial conditions.
🔄 Continuous or Modulated Operation
Instantly switch between modes up to 20kHz for total cleaning flexibility on all materials.
🎯 Long-Range Fiber Delivery
20m output fiber, 50μm core, QBH (LOC) interface — safe, flexible access to hard-to-reach or large-scale areas.
📦 Heavy-Duty Compact Design
Rugged, portable, and easy to integrate into any factory or field operation.
📐 Technical Specifications
🆔 Laser Source
RFL-C3000S-CE / SUP22C Fiber Laser
⚡ Nominal Power
3000W
🔄 Operation Mode
Continuous / Modulated
🌈 Wavelength
1080 ± 5 nm
🎲 Polarization
Random
💎 Beam Quality (M²)
< 1.5
🔄 Power Tunability
10% – 100%
📈 Power Instability
±1.5%
🔁 Modulation Frequency
Up to 20 kHz
🔴 Preview Red Light
0.1–1 mW
🔌 Interface
QBH (LOC)
🟠 Output Fiber Core
50 μm
🔗 Output Fiber Length
20 m
💻 Control Interface
RS-232 / AD / Ethernet
➰ Min. Bending Radius
< 300 mm
🔌 Input Power
3-phase 380V
❄️ Cooling Method
Water Cooling
🌡️ Operating Temperature
10°C to +40°C (50°F to 104°F)
❄️ Storage Temperature
-10°C to +60°C (14°F to 140°F)
💧 Humidity
< 70%
📦 Dimensions (L×W×H)
440 × 586 × 149 mm (17.3″ × 23.1″ × 5.9″)
⚖️ Weight
< 28 kg (62 lbs)
🔬 Applicable Wavelength
1064 nm (+10 nm)
⚡ Applicable Power
Up to 3000W
🔭 Collimating Lens
D16×5 / F60
🔬 Focusing Lens
D20×3.5 (F400 / F600 / F800)
🪞 Reflective Mirrors
20×15.2×T1.6 mm
🛡️ Protective Window Transmission
>90%
🎯 Beam Pointing Stability
D30×T5
💨 Maximum Support Pressure
15 Bar
Why Choose UmproTech?
🏭
U.S. Based Support
Local warehouse, technical support, and installation services across North America.
🛡️
Comprehensive Warranty
2-year warranty coverage with lifetime technical service support.
🎓
Operator Training
Free comprehensive operator training included with every system purchase.
Ready to Transform Your Production?
Request a personalized demo or detailed technical specifications for the Laser Cleaning CW 3000W UT - LCM30CW today.
Request Technical Specifications
