Allindustrial > Graphical hmi devices > Hmi (human machine interface)

CM5-T7W

C-more

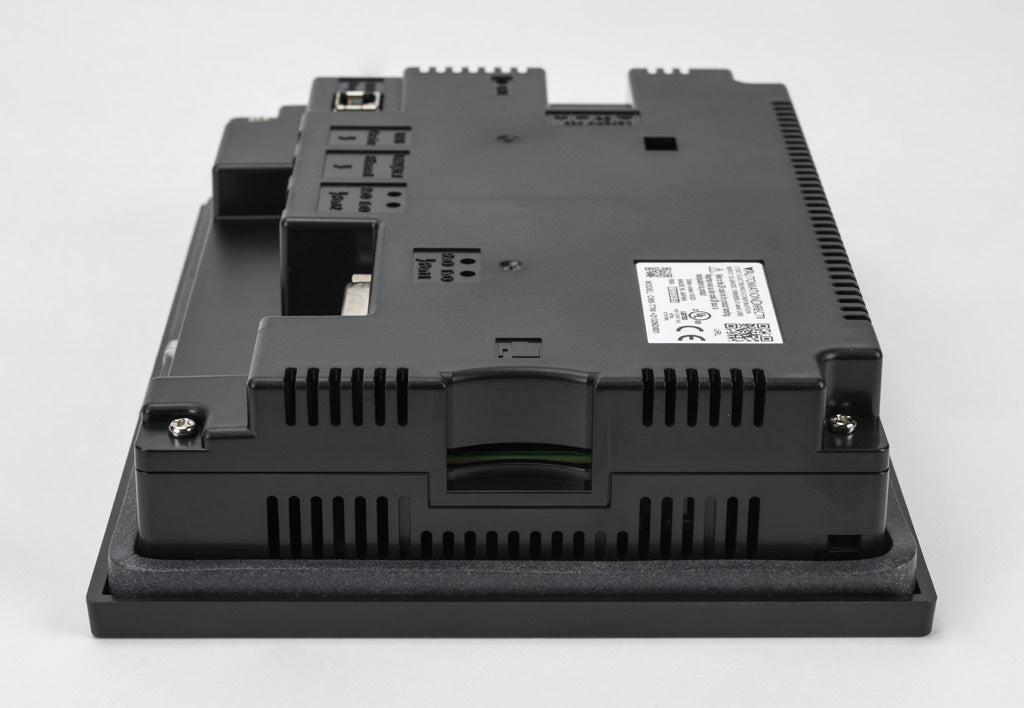

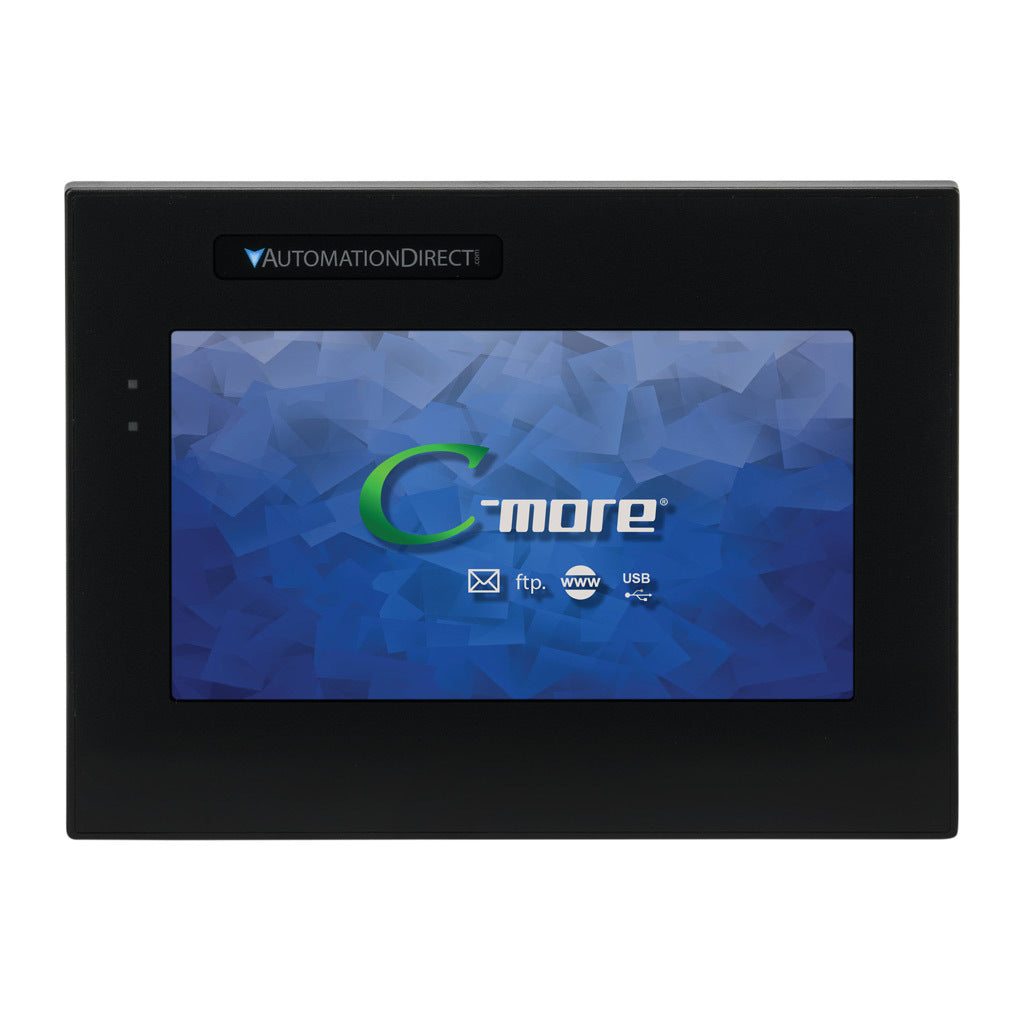

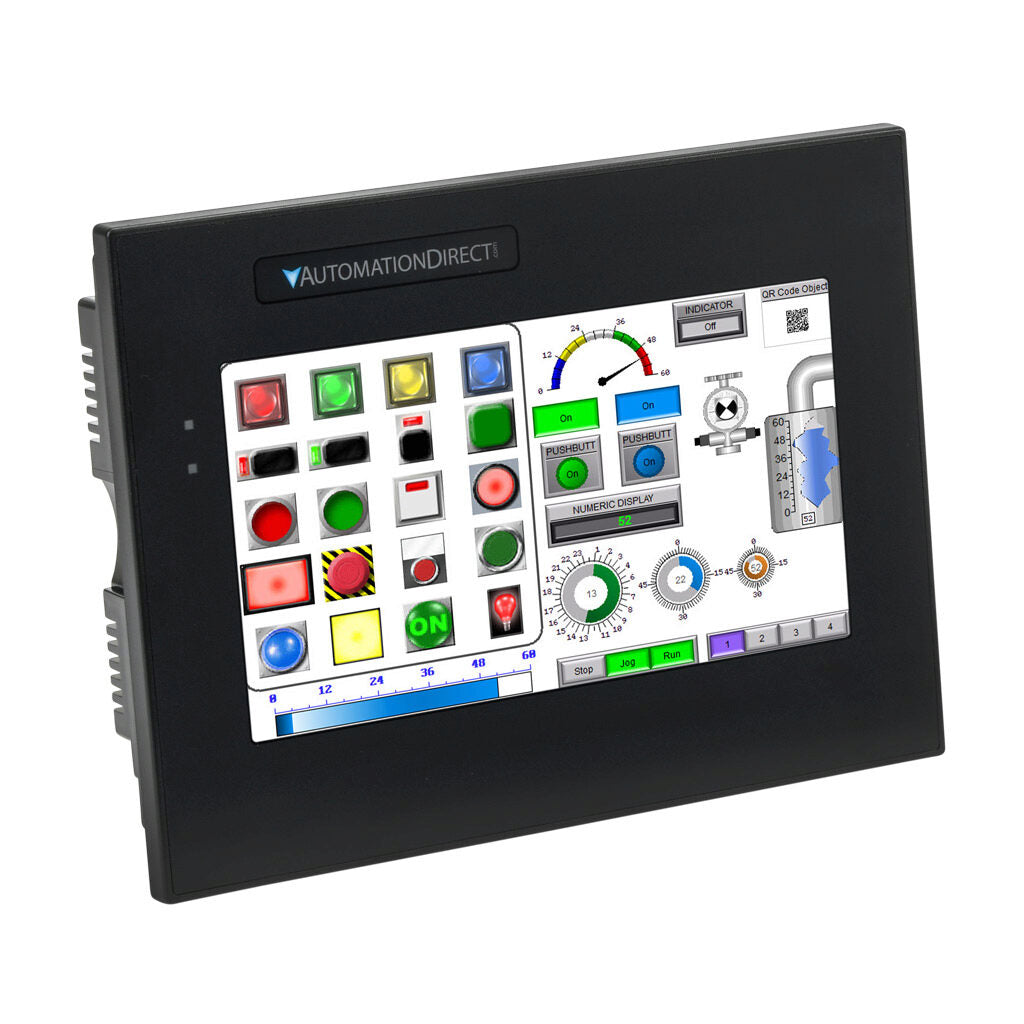

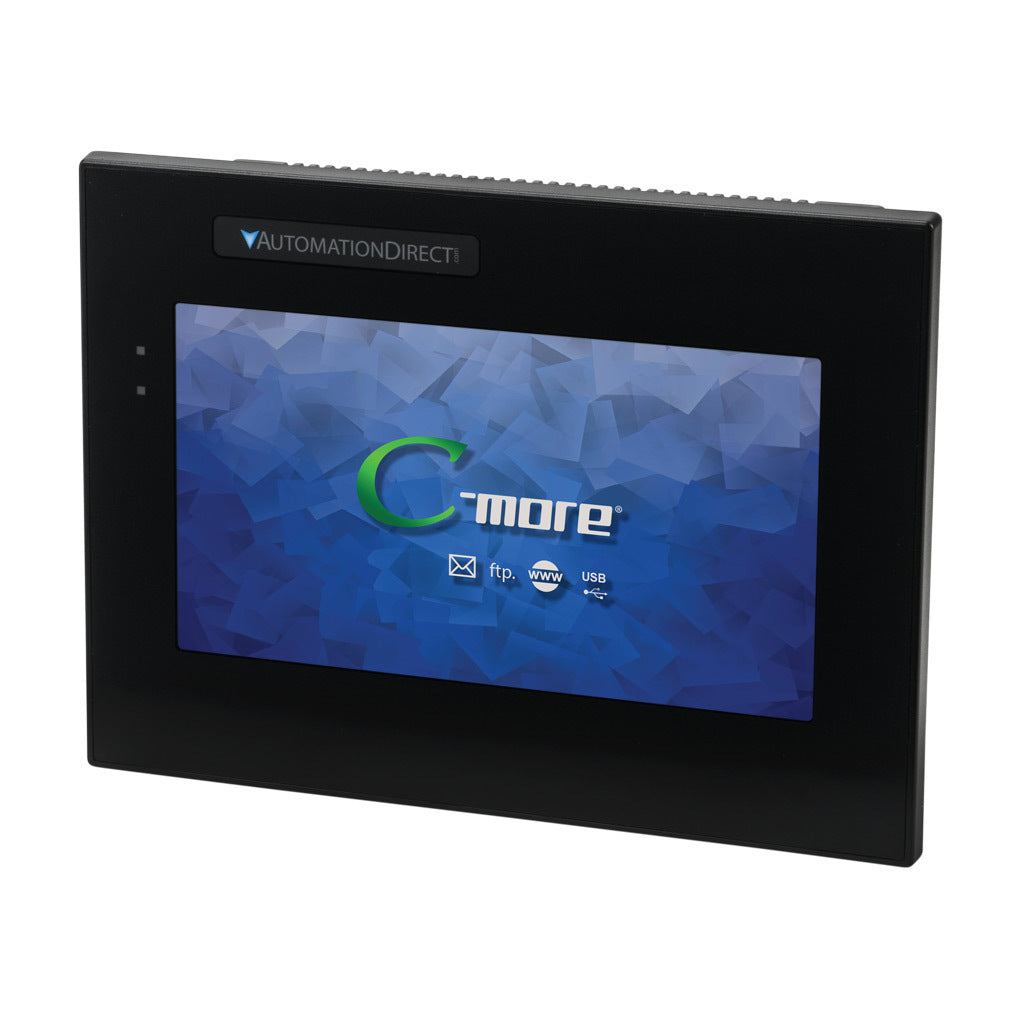

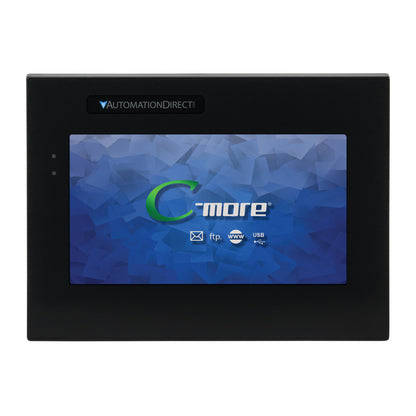

C-more CM5 series touch screen HMI, 7in color TFT LCD, resistive single-touch, widescreen, 800 x 480 pixel, WVGA, LED backlight, (1) Ethernet, (2) serial and (2) USB ports and (1) memory card slot. NEW

High-Speed Fiber Laser Cutter — USA Warranty
$574.80 USD
$574.80 USD
Sale Sold out
Shipping calculated at checkout.
Product Attribute Table

Technical Attributes
Brand C-more
Item HMI
Series CM5
Touch Screen Yes
Display Size 7in
Viewable Size 7in
Display Type Color TFT LCD
Widescreen Yes
Display Maximum Colors 16.7M colors
Display Resolution 800 x 480 pixel
Display Video Standard WVGA
Touch Panel Type Resistive single-touch
Brightness 310nits
Display Orientation Landscape/portrait
Backlight Type LED
CPU Clock Speed 800 MHz

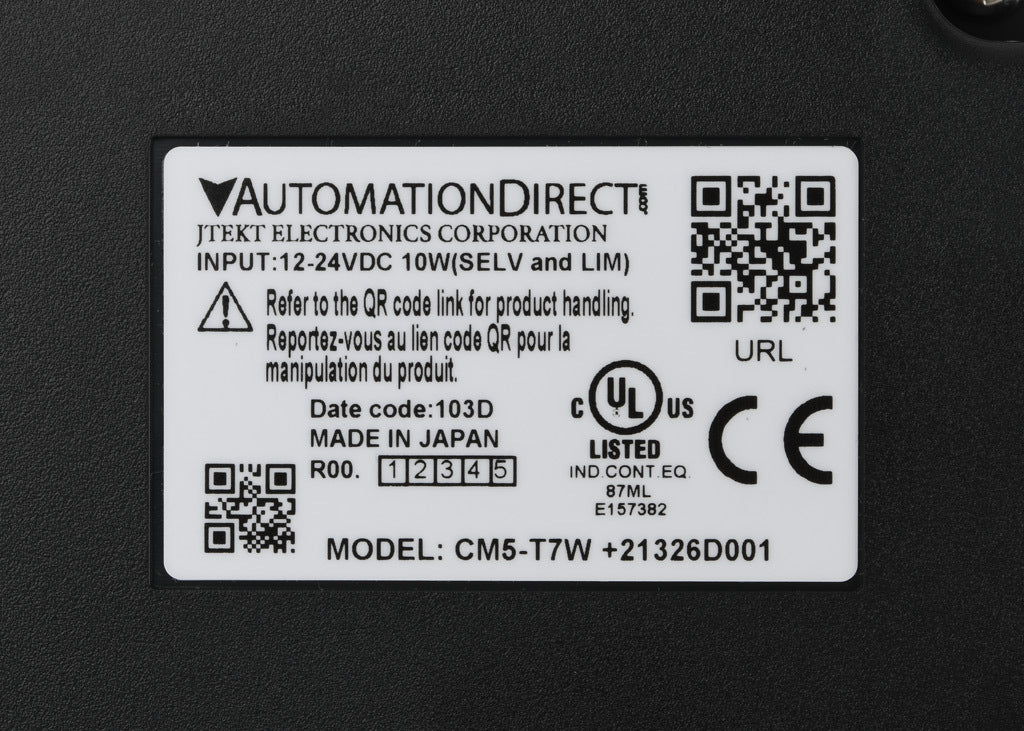

External Power Requirement 12-24 VDC
Housing Rating NEMA 4/4X
Environmental Requirements Indoor use only
IP Rating IP65
Mounting Panel

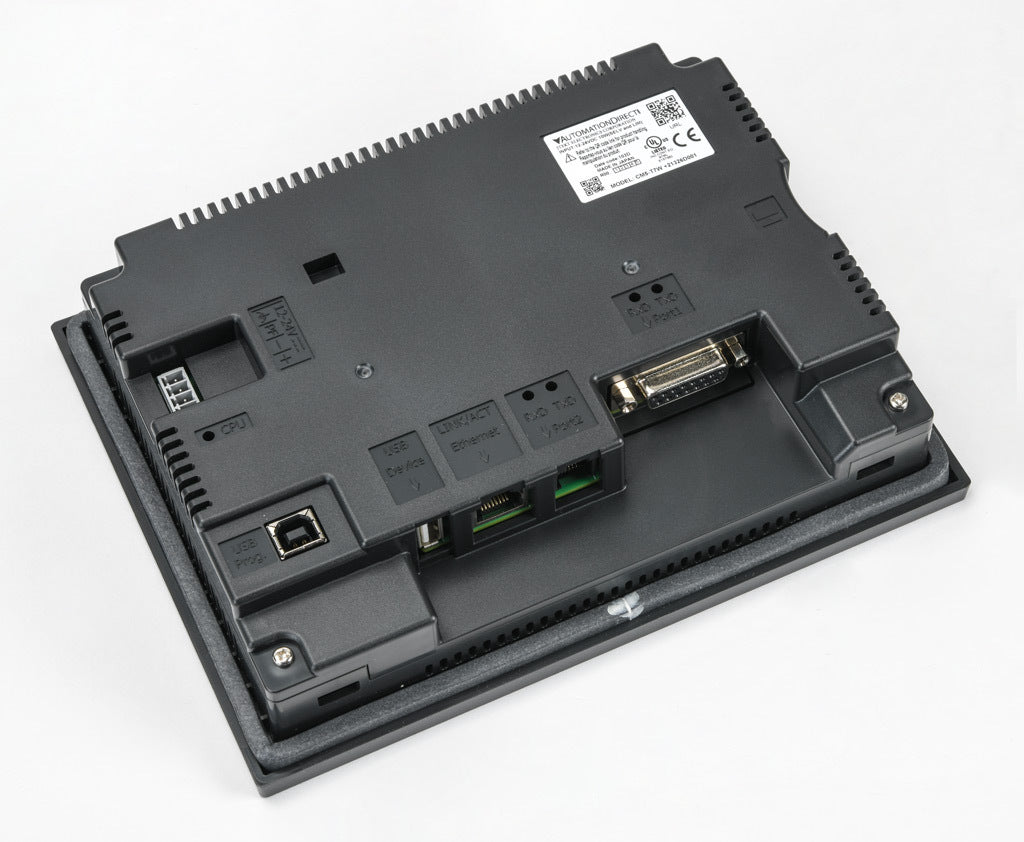

Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-232/422/485 (DB15 female)
  • (1) USB A
  • (1) USB B
Port Protocol(s)
  • Allen-Bradley DF1 full duplex
  • Allen-Bradley DF1 half duplex
  • Allen-Bradley EtherNet/IP Client
  • Allen-Bradley EtherNet/IP Client (tag-based for ControlLogix)
  • Allen-Bradley EtherNet/IP Server (generic I/O messaging)
  • AutomationDirect CLICK Ethernet
  • AutomationDirect CLICK serial
  • AutomationDirect DirectLOGIC K-Sequence
  • AutomationDirect DirectLOGIC DirectNET
  • AutomationDirect DirectLOGIC Ethernet
  • AutomationDirect Do-more/BRX serial
  • AutomationDirect Do-more/BRX Ethernet
  • AutomationDirect ECOM Ethernet
  • AutomationDirect GS drives serial
  • AutomationDirect GS drives Ethernet
  • AutomationDirect Productivity Series Ethernet
  • AutomationDirect Productivity Series serial
  • AutomationDirect SOLO temperature controller
  • AutomationDirect SOLO modular temperature controller
  • Entivity WinPLC Modbus RTU Master
  • Entivity WinPLC Modbus TCP/IP Client
  • FTP Client/Server
  • GE SNPX (90/30, 90/70, Micro 90, Versa Max Micro)
  • GE SRTP (90/30) Ethernet
  • GE SRTP (Fanuc R-30iB) Ethernet
  • Mitsubishi FX Direct
  • Mitsubishi Q
  • Mitsubishi QnA Ethernet
  • Mitsubishi QnA serial
  • Modbus RTU Master
  • Modbus TCP/IP Client
  • MQTT Client
  • MQTTs Client
  • SMTPs Client
  • NTP Client/Server
  • Omron FINS Ethernet
  • Omron FINS serial
  • Omron Host Link
  • Siemens S7-200 Ethernet ISO over TCP
  • Siemens S7-200 Serial-PPI
  • Siemens S7-300/400/1200/1500 Ethernet ISO over TCP
  • webserver (secure HTTPs)
Mobile App Enabled Android/iOS Remote HMI App
Port Speed(s)
  • up to 38.4k baud
  • 10/100 Mbps
Removable Media Type SD card slot
Programming Software CM5-PGMSW programming software v8.0 or later

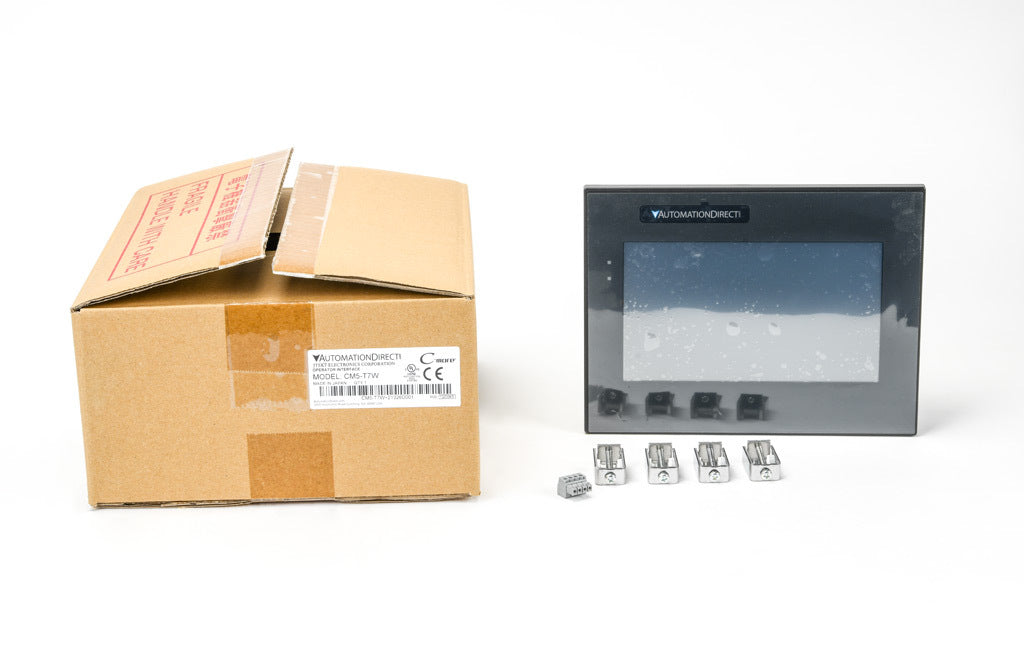

Includes Mounting hardware and gasket
