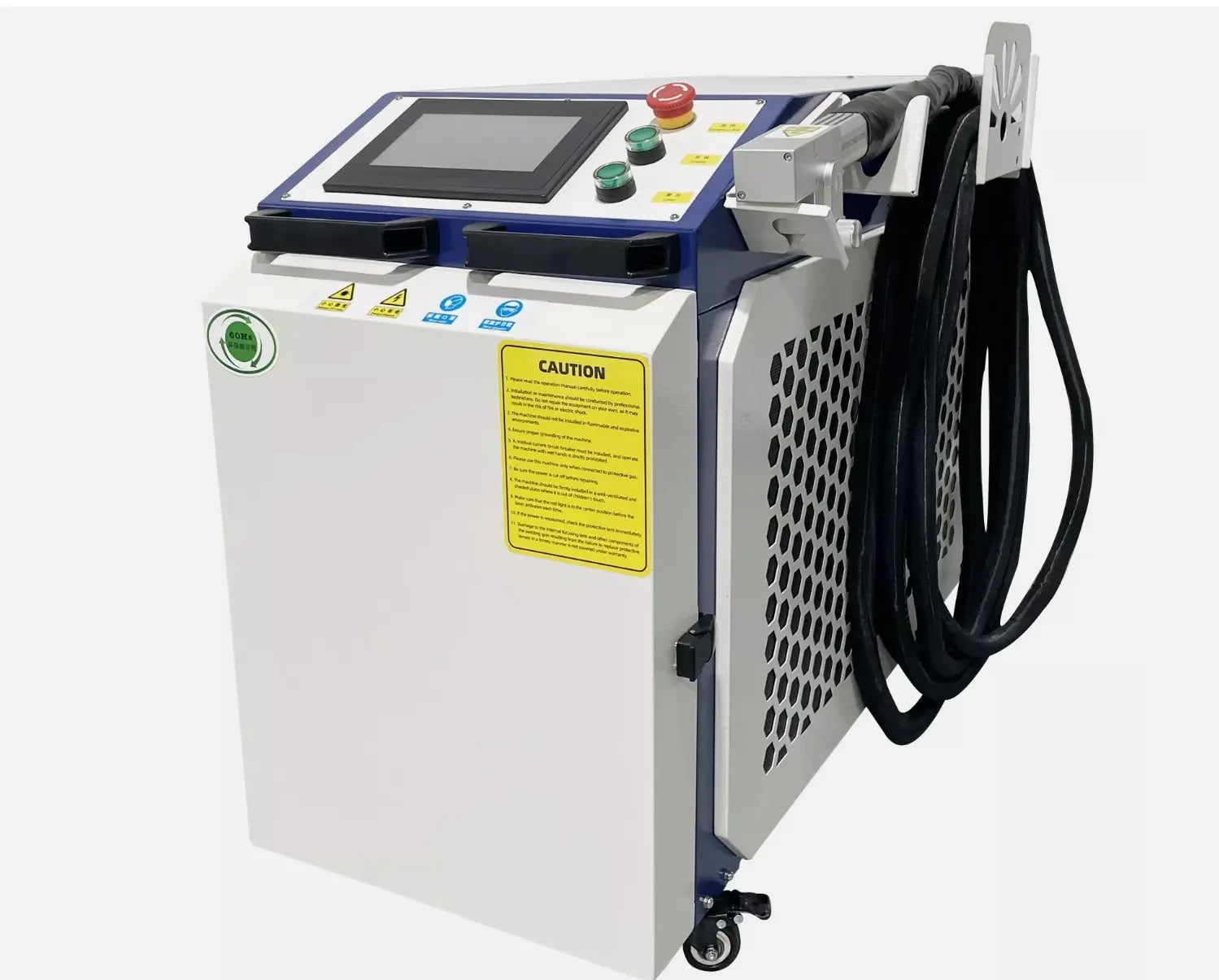

3000 W Handheld Fiber Laser Cleaning Machine
High-power handheld fiber laser cleaner for fast, controllable removal of heavy rust, mill scale, paint/coatings, and contaminants—built for US fabrication, OEM, and maintenance teams as a cleaner alternative to blasting, grinding, and chemical stripping.
Power: 3000 W · Scan width: 10–250 mm (0.4–9.8 in) · Head: ~0.8–1.2 kg (1.8–2.6 lb) · Cooling: water chiller (included)
Electrical: 380–400V 3-phase 50/60Hz (regional build) or 480V 3-phase 60Hz (US option) · Speed: up to ~20–45 m²/h (coating-dependent)
Key advantages
- Heavy-duty removal: strong performance on thick coatings and deep rust (power adjustable).
- Wide coverage control: 10–250 mm with line/rectangle/circle/hatch patterns for seams or large panels.
- Handheld flexibility: frames, beams, tanks, weldments, and installed equipment.
- Production-ready cooling: chiller supports long duty cycles and stable output.
- Automation-ready: robot mount + extended fiber options for future automated cells.
Technical summary (typical)
- Laser type: fiber laser cleaning system (handheld)
- Mode: ~1064 nm; CW with modulation (options vary by build)
- Fiber cable: 10 m (~33 ft) standard (longer options available)
- Scan patterns: line / rectangle / circle / hatch
- Throughput: up to ~20–45 m²/h depending on coating type, thickness, and required cleanliness level
Typical applications
- Rust & scale removal on structural steel, frames, beams, and weldments
- Paint/coating stripping on panels, tanks, vessels, and machinery enclosures
- Weld seam prep / post-weld cleanup before inspection or coating
- Tools, molds, fixtures: remove buildup without aggressive blasting
- Maintenance cleaning where blasting is messy or access is limited
Safety & fume handling
Class 4 laser process: laser-rated eyewear, controlled work area, and local exhaust ventilation are required. Optional fume extraction packages available.
Get a fast quote
Send: ZIP + material + coating/contaminant + target area size + your shop power (480V/380–400V). We’ll confirm the correct electrical configuration and recommend starting settings.
