CLICK PLUS

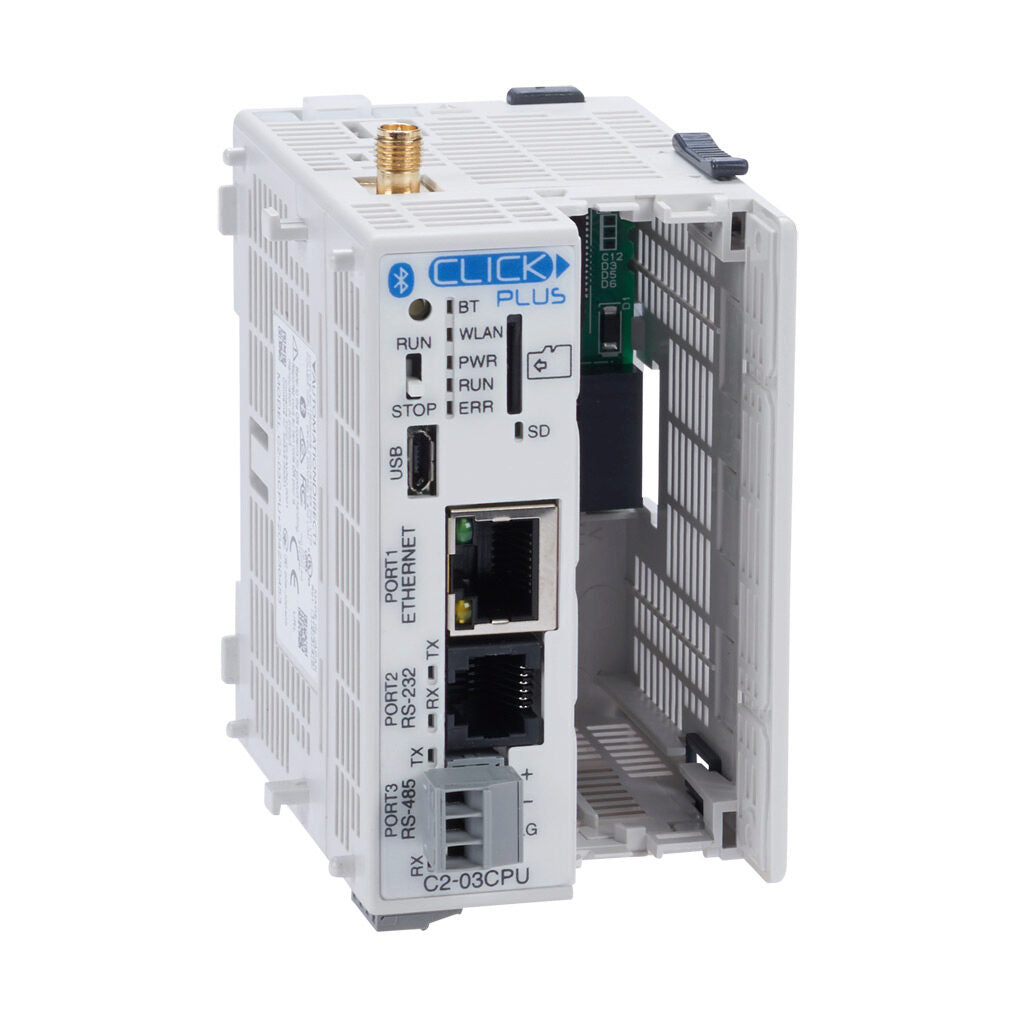

CLICK PLUS PLC, 24 VDC required, (1) option slot, WiFi LAN/Bluetooth, Ethernet, serial and microB-USB ports, battery backup, microSD card slot, no on-board I/O. NEW

High-Speed Fiber Laser Cutter — USA Warranty
$215.00 USD
$215.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Technical Attributes

Brand CLICK PLUS
Item PLC
Total Memory 8k words
Ladder Memory 8k steps
User Data Memory 16 KB
Removable Media Type MicroSD card slot
Number of Option Slots 1
Programming Language Ladder
Programming Software CLICK programming software v3.0+ and CPU firmware v3.0+
Communication Ports
  • WiFi LAN/Bluetooth (RP-SMA antenna plug)
  • Ethernet 10/100Base-T (RJ45)
  • RS-232 (RJ12)
  • RS-485 (3-pin terminal)
  • microB-USB
Port Protocols
  • MQTT Client
  • Modbus TCP Client/Server
  • Modbus RTU Master/Slave
  • ASCII In/out
  • EtherNet/IP explicit & implicit messaging adapter
  • Programming and monitoring
Port Speeds
  • 802.11 b/g/n WiFi
  • BLE 802.15.1
  • 10/100 Mbps
  • up to 115.2k baud
Frequency Bands WiFi: 2.4 GHz
Mobile App Enabled CLICK Remote PLC & CLICK PLUS Provisioning (Android/iOS)
Real Time Clock/Calendar Yes
Retentive Memory Yes
Battery Backup Yes (Purchase D0-MC-BAT separately)
Maximum Expansion Modules Allowed 8
External Power Requirement 24 VDC
Maximum Number of PID Loops 8
Additional Information Purchase (D0-MC-BAT) backup battery separately
Ver todos los detalles
