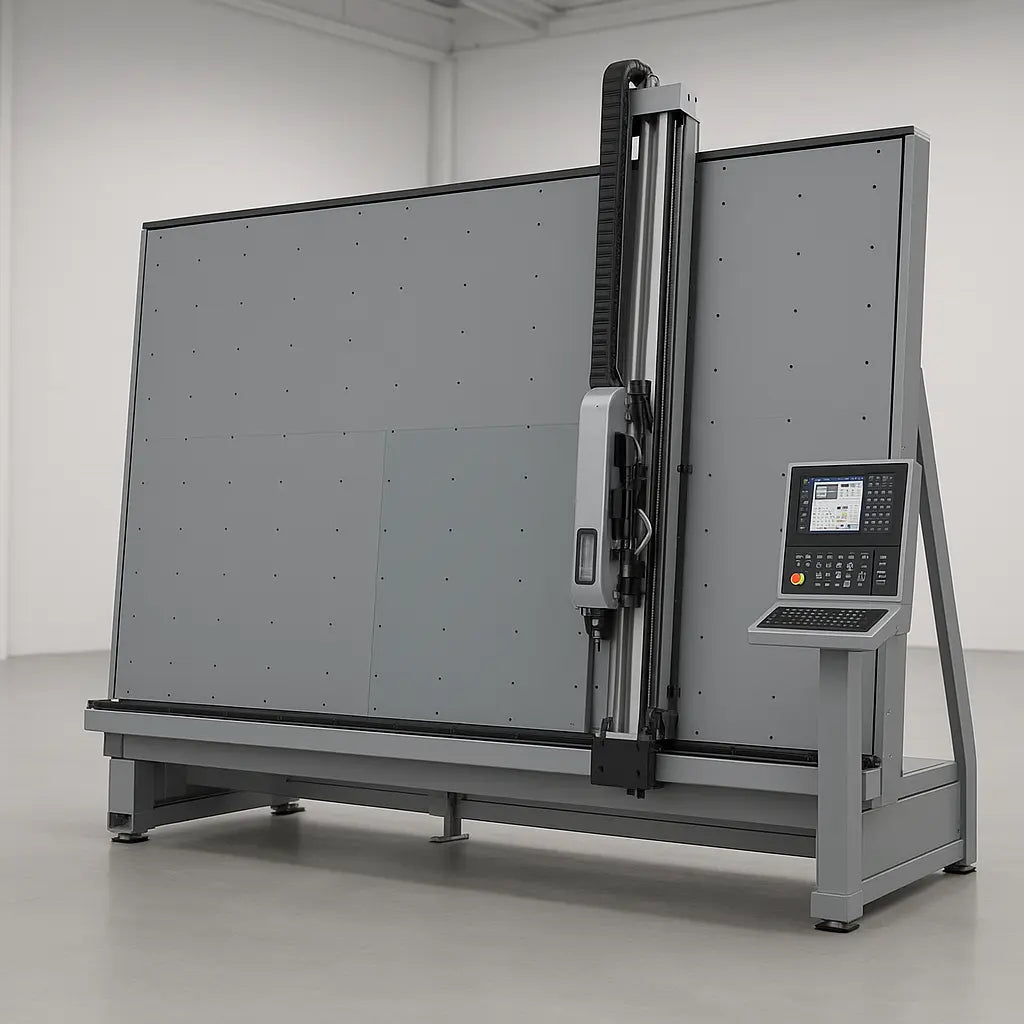

ANCHU GlassCut Vertical 6032 US — 236" x 126" CNC Vertical Glass Cutting Plotter
The ANCHU GlassCut Vertical 6032 US is a CNC automatic vertical glass cutting machine engineered for North American glass fabrication shops seeking high accuracy, automation, and efficient use of floor space. Designed for jumbo-format glass, it brings CNC precision and digital workflow integration to demanding architectural and commercial glass operations.
Cutting capacity: 236" x 126" (6000 x 3200 mm) · Power: 480 V three-phase · Operation: CNC automatic vertical
Key advantages for US buyers
- Handles full-size jumbo glass sheets up to 236" x 126" (6000 x 3200 mm) for curtain wall and facade projects.
- Vertical format saves valuable floor space compared to traditional horizontal tables.
- CNC-controlled cutting bridge and servo-driven axes deliver high accuracy and repeatability for architectural glass.
- Automatic glass positioning, clamping, and cutting cycles reduce manual handling and operator error.
- Graphical CNC interface with pattern visualization and job management streamlines workflow from optimization to cutting.
- Compatible with ANCHU PowerPhase converters for flexible installation in shops with 480 V or single-phase 240 V power.
Key technical specifications
Cutting capacity: 236" x 126" (6000 x 3200 mm)
Processes full jumbo glass lites for large architectural components and commercial glazing.
Glass thickness: Common ranges for windows, doors, and facades (exact range confirmed at order)
Supports float glass thicknesses typically used in North American fabrication.
Control system: CNC with servo-driven axes
Ensures precise, repeatable cuts and programmable cutting pressure and path.
Automation: Automatic sheet positioning, clamping, and cutting cycles
Reduces manual handling and enables consistent quality on every job.
Power requirement: 480 V three-phase (other voltages on request)
Can be installed with ANCHU PowerPhase converters for single-phase 240 V shops.
Shop requirements: Compressed air and clean, dry environment
Standard utilities for glass fabrication environments.
Capabilities & typical applications
This vertical CNC glass cutting plotter is designed as a core machine for glass fabrication shops moving to automated, high-throughput operations. It integrates with digital optimization software and supports both standalone use and cell-based manufacturing.
- Cutting jumbo glass sheets for curtain walls, facades, and architectural glazing
- Producing glass for windows, doors, partitions, and storefronts
- Transitioning from manual table cutting to repeatable, CNC-driven production
- High-mix/low-volume and batch production for commercial and residential projects
- Supporting digital job flow from nesting/optimization to finished cut parts
Implementation & support for US shops
We work closely with US glass fabrication shops to ensure a smooth implementation—covering power and air requirements, floor planning, and workflow integration. Our team reviews your part mix and glass thicknesses to confirm fit before purchase, and can assist with nesting/programming and operator training.
- Pre-installation review: power, air, floor space, and glass handling logistics
- Support for digital job flow and optimization software integration
- Operator training on CNC interface, pattern management, and maintenance
Next step: Send us your typical glass sizes and job requirements, and we’ll confirm fit and configuration for your operation.
