5' 30T HBM 30/1600 E22 Hydraulic Press Brake with E22 Controller NEW

High-Speed Fiber Laser Cutter — USA Warranty
$8,900.00 USD
$8,900.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

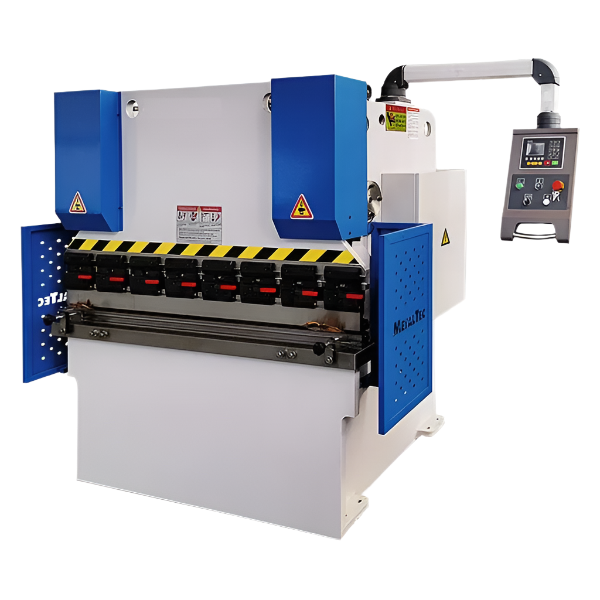

🇺🇸 UmproTech 5' 30-Ton HBM 30/1600 — E22 CNC Hydraulic Press Brake

Compact precision press brake for small-format jobs • E22 CNC controller • U.S. setup, training & support

Key Specifications

Press Force
30 tons (≈300 kN)
Bending Length
63" (1,600 mm)
Motor Power
5.4 HP (4 kW)
Controller
E22 CNC — step/angle programs, parts counter, memory programs
Working Speed (Bending)
~0.31 in/s (8 mm/s)
Machine Weight
≈5,700 lbs
In-Stock USA (Chicago) 2-Year Parts & Electronics Warranty Setup & Operator Training Included Financing & Leasing Available

See more hydraulic press brakes or explore our fiber laser cutters.



Ver todos los detalles

5' 30T HBM 33/1600 E22

COMPACT POWER. AMERICAN PRECISION. ENGINEERED FOR MODERN FABRICATION.
E22 • 2-AXIS CNC UmproTech HBM 30/1600 — 5-foot 30-ton CNC hydraulic press brake with E22 controller
2-Year Premium Warranty
ISO 9001 Certified
American-Owned
Nationwide Installation

Space-Saving Design

Compact 5′ footprint for small shops and prototype cells


E22 Controller

Intuitive 2-axis CNC with quick setup and angle programs

30 T
Press Force
5′
Bending Length
5,700 lb
Net Weight

5′ 30-Ton CNC Hydraulic Press Brake

Model HBM 30/1600 • E22 Controller

Bring advanced precision to tight spaces: the UmproTech HBM 30/1600 delivers 30-ton forming power, E22 CNC automation and an operator-friendly footprint for prototyping and small-to-medium runs.

In Stock — Ships from Illinois

Standard Features


  • Ram Deflection Adjustment: straight, consistent bends every cycle

  • Mechanical Ram Depth + Torsion Bar: parallelism & repeatability

  • Forged Cylinder & All-Steel Frame: built for industrial duty

  • Three-Speed Ram: rapid approach • precise bend • fast return

  • Programmable Bottom Dwell: for complex forming

  • Modes: inching • single • continuous

  • American Tang Tooling: 1/2″ × 5/8″, supports deep box bends

  • Bed Tooling Slots & Capture Clamps: flexible setups

Included Options

E22 2-Axis CNC Control
SICK Model 4000 Light Curtain

Optional Upgrades

Fiessler AKAS II Laser Guarding
Pilz PSENvip LED Safety Guarding
3rd Axis (Backgauge Height)
Mechanical Auto-Crown (CNC-controlled)
High-Speed Servo Backgauge
On-site or showroom training packages

Key Specifications

Press Force
30 tons
Bending Length
62 in (≈1600 mm)
Between Housings
52 in
Throat Depth
7.8 in
Ram Stroke Adjustment
1.96 in
Ram Travel
3.93 in
Open Height
12.5 in
Rapid Approach / Return
2.4 / 2.0 in/s
Working Speed
Tool-dependent
Backgauge Travel
24 in
Hydraulic Oil Capacity
36 gal
Motor Power
7.5 HP
Net Weight
5,700 lb
Machine (L × W × H)
65 × 55 × 80 in

Why Choose UmproTech 5′ 30T CNC Press Brake?

U.S.-ready: safety & electrical compliance • E22 automation: faster setups & repeatability • Industrial build: forged hydraulics, rigid frame • Operator safety: SICK light curtain included • U.S. support: ships from Illinois, nationwide service/training.

Request Custom Quote Book a Live Demo – Chicago Financing from $5xx/mo*
Speak with an Expert: +1 (800) UMPROTECH
