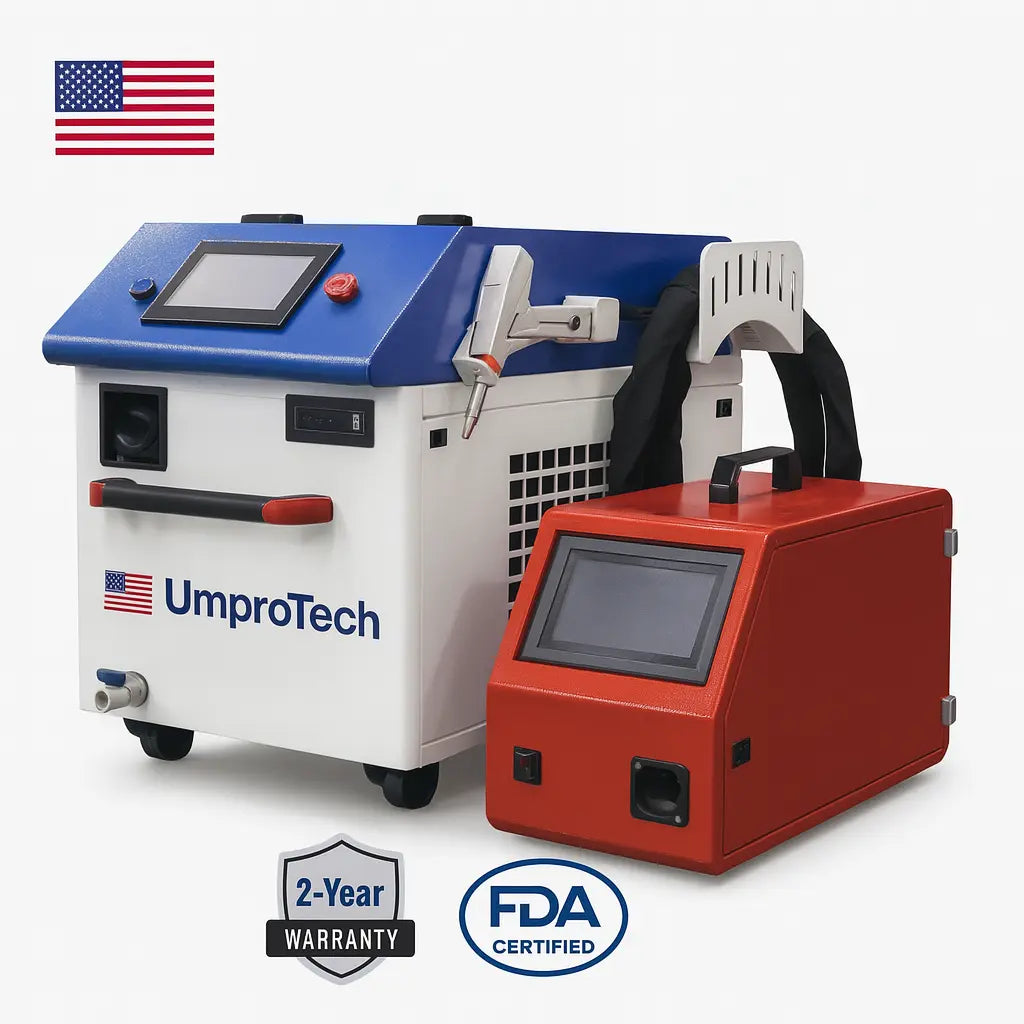

3000 W 4-in-1 Handheld Laser Welding & Cleaning Machine
Industrial 3000 W fiber laser combining welding, cleaning, rust removal, and light cutting in one mobile unit for US job shops and fabrication cells—fast setup, high travel speed, and repeatable results across multiple shifts.
Power: 3000 W (10–100%) · Weld (single-side, typical): MS up to 6.0 mm · SS up to 5.0 mm · Al up to 4.0 mm
Head: handheld wobble (0–5 mm) · Cooling: industrial chiller (included) · Input: 380–400 V 3PH (select 220 V 1PH models)
Key advantages
- One system, four processes: welding + cleaning + rust/oxide removal + light cutting from a single power source.
- Wobble welding: 0–5 mm adjustable width improves bead appearance and gap tolerance on real-world fit-up.
- Reduced post-processing: narrow HAZ and low distortion mean less grinding, blending, and rework vs MIG/stick.
- Optional wire feeder: 0.8–1.6 mm filler wire for thicker joints, root passes, and gap filling.
- Mobile cabinet: compact wheeled unit (~30"×24" footprint) for shared use across cells and bays.
Key technical specifications
- Laser: 3000 W fiber, adjustable 10–100%.
- Mode / wavelength: CW (~1064 nm) with adjustable modulation.
- Typical welding speed: up to ~0–180 mm/s (joint/material dependent).
- Shielding gas: Argon / Nitrogen / Helium (0.1–0.3 MPa) to tune penetration and appearance.
- Cleaning modes: oxide/scale removal, coating/rust removal, weld seam cleaning with controlled scanning.
- Cooling: closed-loop industrial water chiller included for stable output and duty cycle.
- Electrical: 380–400 V 3-phase 50/60 Hz (select 220 V single-phase variants—consult for derating).
- Size / weight (approx.): ~30"×24"×38"; ~220–300 kg (options dependent).
- Safety: Class 4 laser—requires PPE/eyewear, controlled zone, and guarding per site policy.
Operating modes
Welding
- Continuous mode for high-speed seams and fillets.
- Modulated mode for thin gauges and cosmetic welds.
- Wobble patterns for wider beads and better blending.
- Preset material/thickness libraries to reduce setup time.
Cleaning / rust removal
- Pre-weld cleaning (oxide/scale removal) to improve consistency.
- Rust removal for repair work and surface prep.
- Post-weld discoloration cleanup with minimal grinding.
- Adjustable scan speed/energy density to protect base metal.
Typical applications
- Fabrication: frames, brackets, guards, cabinets, handrails, panel seams.
- Repair & maintenance: mobile rust removal + weld repair on fixtures and installed equipment.
- Prototype/low-volume: fast setup and quick changeover between processes.
- Contract mfg: one unit supports multiple part families and materials.
Implementation & support
- Pre-install: power, ventilation, safety zoning, and workflow planning.
- Startup & training: programs, gas selection, daily checks, and best practices.
- Integration help: add as a shared tool, fixed station, or robot-ready process.
Next step: Send material, thickness, joint type, and photos/drawings—then we’ll confirm fit and configuration.
FAQ
Can it replace MIG/TIG?
Often it reduces MIG/TIG on suitable sheet/light plate joints; many shops run it alongside MIG/TIG for flexibility.
Do we need ventilation?
Yes—welding and cleaning generate fumes/particulates; plan source capture or portable extraction.
Is it automation-ready?
Yes, with a robot mount/integration kit it can be used in robotic or gantry cells.
