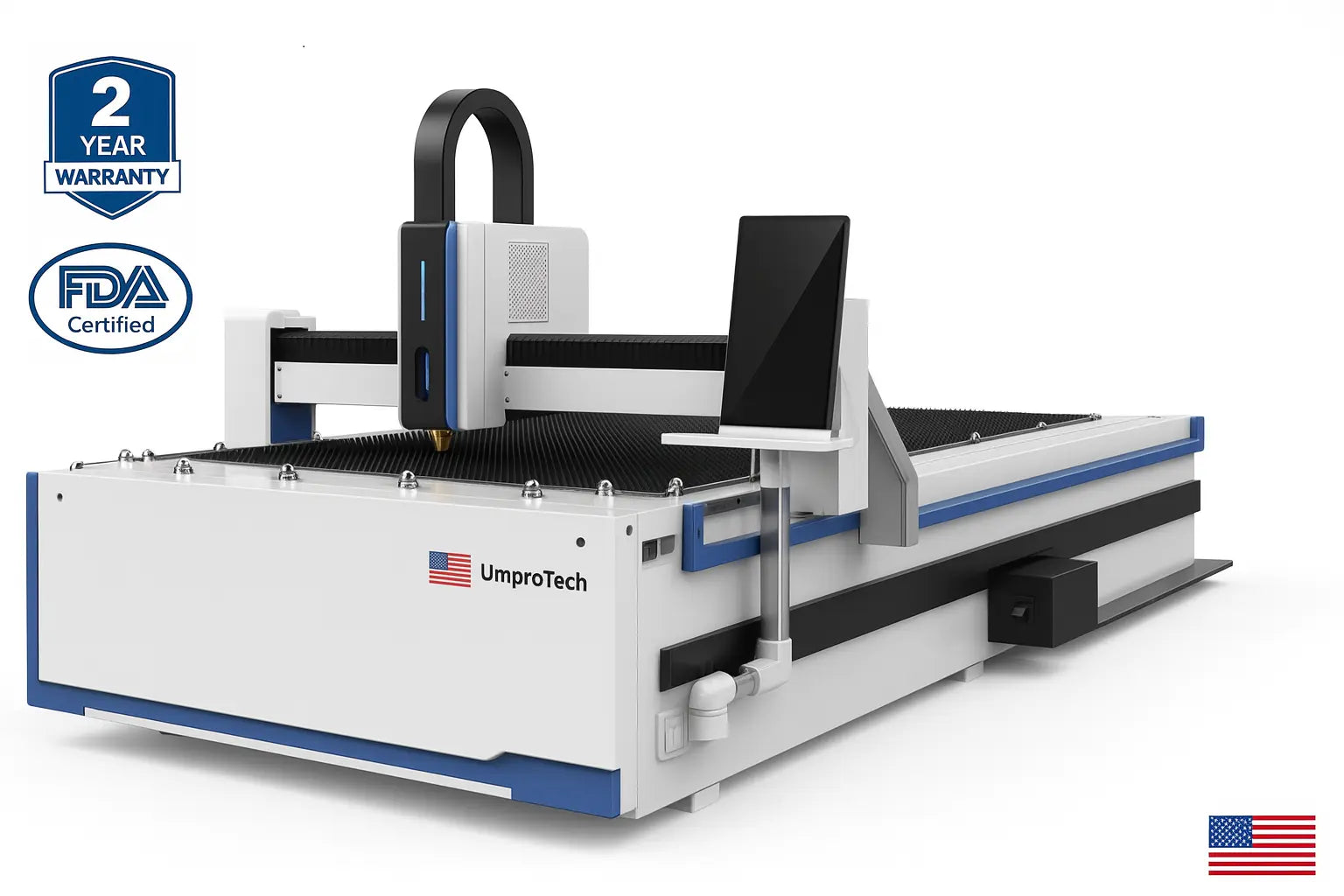

3000 W Fiber Laser Cutting Machine — 3015 (5 ft × 10 ft)
Production-grade 3.0 kW fiber laser with full 5×10 bed for US job shops, OEMs, and fabrication cells—high-speed cutting, repeatable accuracy, and clean blanks that drop straight into press brakes and weld fixtures.
Laser: 3000 W · Work area: 3000×1500 mm (5×10) · Controller: CNC nesting (CypCut/FSCUT class)
Accuracy: ~±0.03 mm/m · Repeat: ~±0.02 mm · Rapids: up to 100–120 m/min · Gases: O2/N2/Air
Overview for US shops
- Primary 5×10 cutter: replaces/extends plasma and older CO₂ systems.
- High-mix + repeat work: fast changeovers with stable edge quality across shifts.
- Cell integration: one laser can feed multiple press brakes, weld cells, and assembly stations.
For many facilities, 3.0 kW is the “sweet spot” for full-sheet cutting—strong throughput without jumping to higher-power utilities and gas consumption.
Key advantages
- Typical capacity (3.0 kW): MS 14–16 mm · SS 8–10 mm · Al 6–8 mm · selected brass/copper 4–6 mm (application dependent).
- Full 5×10 bed: run standard sheets with efficient nesting and less re-clamping.
- High dynamics: up to ~100–120 m/min rapids and ~1.0–1.5 g acceleration (config dependent) for short cycle times on dense nests.
- Nesting workflow: DXF/DWG import, part libraries, micro-tabs, common-line/bridge cutting, job queues.
- Throughput upgrades: shuttle exchange table + automation options for continuous load/unload and extended shifts.
- US-ready planning: guidance for 480 V plant power (transformer/regional build), gas sourcing, and extraction interfaces.
Quick specs
| Laser power | 3000 W fiber |
|---|---|
| Work area | 3000×1500 mm (5×10) |
| Accuracy / repeat | ~±0.03 mm/m / ~±0.02 mm |
| Motion | Up to 100–120 m/min; ~1.0–1.5 g (config dependent) |
| Drive | Dual rack & pinion X/Y; ballscrew Z; AC servos |
| Gases | O2, N2, Air |
| Table | Single pallet (standard) · Shuttle optional |
| Electrical | 380V 3PH typical; 480V via transformer/regional build |
Cut quality & throughput notes
- Mild steel: O2 strategy for speed and strong piercing on mid plate.
- Stainless/aluminum: N2 for bright, oxide-free edges ready for bending/welding.
- Complex parts: fiber beam quality supports small holes, slots, and tight contours.
Cut-speed tables and parameter libraries for your materials can be confirmed during application review and sample trials.
Implementation & support
- Pre-install: power, floor loading, rigging path, sheet handling, and extraction planning.
- Application review: confirm capacity and cycle time for your cut list and part mix.
- Training: controller, nesting, daily checks, and best practices for stable cut quality.
Next step: Send DXF/STEP/PDF + material grade/thickness + quantities, and we’ll recommend the best 3000 W 3015 configuration.
