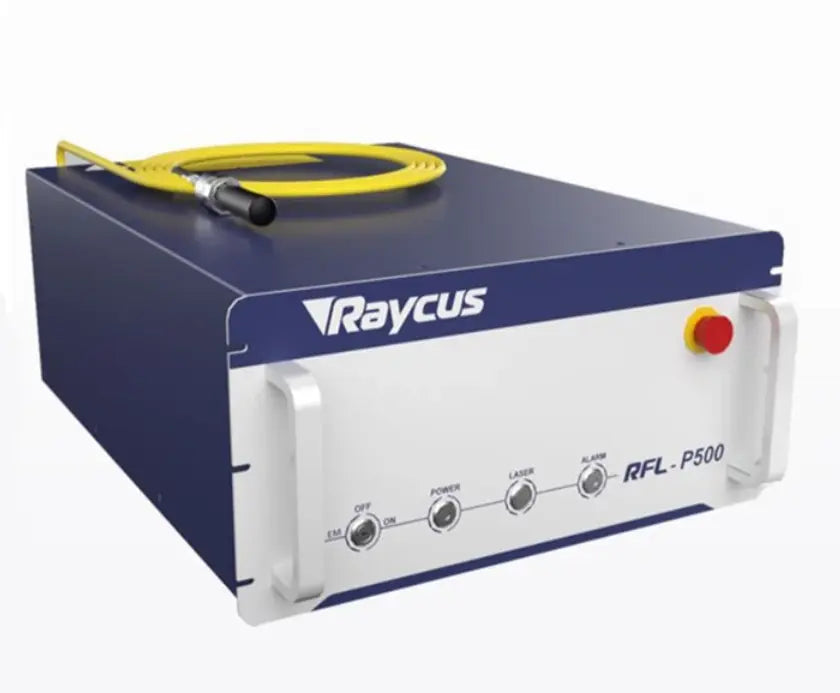

Fiber Laser Source Alarm Codes: What to Check Before Replacing the Source

A laser source alarm does not automatically mean the source is dead. Many fiber laser alarm codes are protection signals. The source may be stopping output because something else in the system is unsafe: cooling, interlock, optics, QBH connector, CNC signal, wiring, grounding or back reflection.

If your fiber laser cutting, welding, cleaning or marking system shows an alarm, the wrong move is to keep resetting it and forcing the machine to fire. The smart move is to identify why the alarm appeared before the fault turns into a bigger repair.

UmproTech provides independent fiber laser source diagnostics and repair support for U.S. industrial customers using IPG, Raycus, JPT, MAX and other fiber laser systems.

Contact UmproTech: +1 (872) 268-5842 | info@umprotech.com
Service office: 901 E Orchard St Unit G, Mundelein, IL 60060

Do Not Ignore Fiber Laser Alarm Codes

Alarm codes are the machine’s way of protecting the laser system. They can point to a source-side failure, but they can also point to a machine-side condition that must be corrected before the source is damaged.

Common alarm-related symptoms include:

  • Laser source will not become ready
  • No laser output or no beam
  • Source powers on but does not emit
  • Machine starts cutting and then stops
  • Power drops during cutting or welding
  • Water flow, temperature or chiller alarms
  • Interlock or safety circuit faults
  • Back reflection or QBH-related alarms
  • Communication fault between source and CNC controller

1. Water Flow and Chiller Alarms

Cooling alarms are among the most common reasons a fiber laser source stops output. A high-power source needs stable cooling. If water flow, pressure, temperature or conductivity is outside the safe range, the source may shut down to protect itself.

Check These Before Blaming the Source

  • Chiller is powered on and running normally
  • Correct temperature setpoints for source and optics circuits
  • Water flow and pressure are stable
  • Filters are clean and hoses are not restricted
  • No air trapped in the cooling loop
  • Correct coolant/water quality and conductivity
  • Chiller capacity matches the laser source wattage

If the alarm repeats, stop running production until the cooling issue is confirmed. Repeated over-temperature operation can create expensive source damage.

2. Interlock, Door, E-Stop and Safety Alarms

Fiber laser sources are usually tied into a machine safety loop. If a door switch, emergency stop, cover interlock, safety relay or wiring connection is open, the source may refuse to emit even when the source itself is healthy.

This is one reason many “dead source” calls turn out to be machine-side faults.

Check These Items

  • Emergency stop buttons
  • Door and cabinet interlocks
  • Laser safety shutter signal
  • Safety relay and interlock wiring
  • Machine enable signal
  • CNC or PLC alarm history

3. Laser Enable and Emission Command Problems

The source may be ready, but the CNC may not be giving it the correct command to fire. This can happen after controller work, wiring changes, parameter changes, relocation, retrofit work or a machine crash.

Before replacing a source, confirm the machine is sending the laser enable, emission command and power command correctly.

  • Laser enable signal present
  • Emission command present during test fire
  • Analog, pulse, PWM or communication command is correct
  • Ready signal is returning to the controller
  • No broken signal cable or loose terminal
  • No incorrect parameter blocking emission

4. QBH Connector, Optics and Back Reflection Alarms

QBH connector and optics problems are dangerous because they can damage the delivery fiber or the source. Dirty protective lenses, poor connector seating, contamination, burned optics or strong back reflection can trigger alarms and reduce output.

This is especially important when cutting reflective materials such as aluminum, brass or copper, or after a cutting head crash.

Warning Signs

  • Burn marks near the QBH connector
  • Dirty or damaged protective lens
  • Sudden low power after lens replacement
  • Alarm appears when cutting reflective material
  • Unstable output after head crash
  • Fiber connector does not seat correctly

If QBH or optics damage is suspected, do not keep test firing. Continued firing can turn a small optics issue into a source-side failure.

5. Communication Alarms Between Source and Machine

Some machines communicate with the laser source through digital I/O, analog command, serial communication, Ethernet or controller-specific interfaces. A communication fault can block emission, show wrong status or prevent the machine from seeing source ready state.

Communication alarms can be caused by loose cables, incorrect settings, controller changes, bad I/O, electrical noise, grounding issues or actual source control board faults.

6. True Source-Side Alarms

After machine-side, cooling-side and optics-side checks, the fault may truly be inside the laser source. Source-side problems can involve power supply failure, driver board faults, module damage, internal fiber issues, sensor faults or control board problems.

At that point, the decision becomes repair, replace or upgrade. The right answer depends on source brand, wattage, age, downtime cost and parts availability.

What to Send for Fast Alarm Code Help

When you contact UmproTech, send clear information so the service team can narrow the fault faster.

  • Laser source brand, model, wattage and serial plate photo
  • Exact alarm code or screenshot
  • Machine brand/model and CNC controller
  • Short video of startup and alarm sequence
  • Chiller model, water temperature, pressure and flow status
  • Cutting head, welding head, cleaning head or marking head model
  • Photos of QBH connector, optics area and source cabinet
  • What material and thickness were being processed
  • What changed before the alarm started

Brand-Specific Laser Source Alarm Support

Use these dedicated pages for more focused diagnostics:

Do Not Replace the Source Until the Alarm Is Diagnosed

A fiber laser source alarm can be simple or serious. The key is to diagnose it in the right order: chiller, interlock, command signal, optics, QBH, communication and source-side components. This avoids unnecessary replacement and helps prevent repeat failures.
