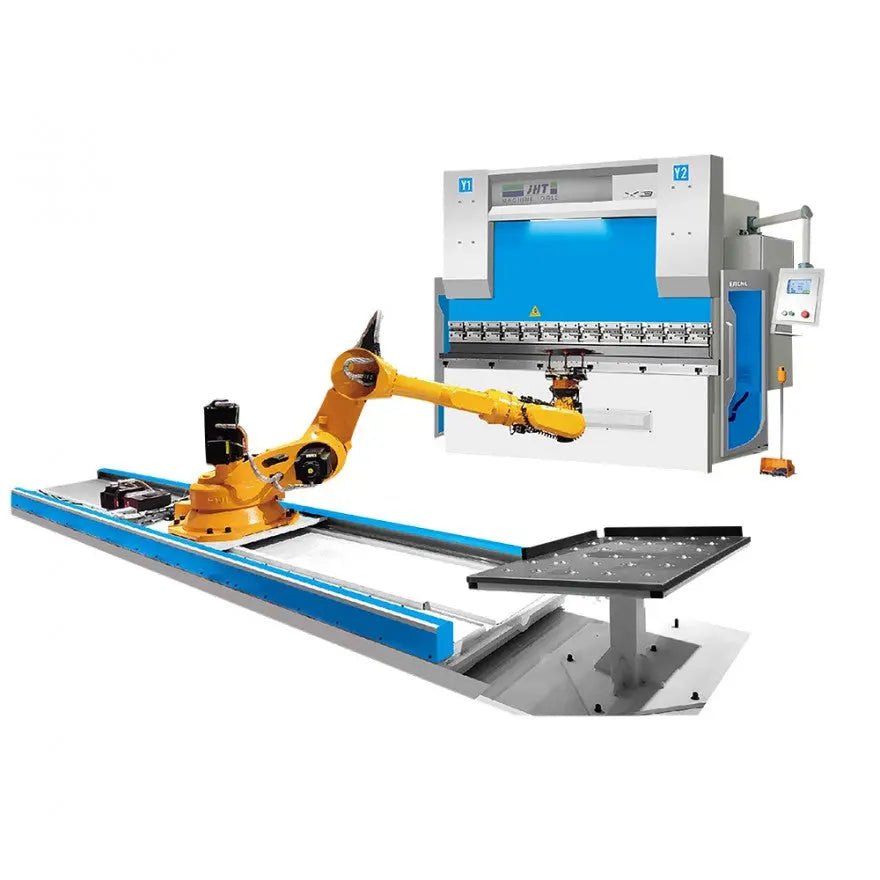

Umprotech Robotic Press Brake Cell – 88 Ton, 10ft, E22 CNC
Automate high-mix bending with this 88 ton, 10ft robotic press brake cell. Designed for US job shops, OEMs, and fabrication cells looking to boost throughput, consistency, and labor efficiency. Integrates a 6-axis robot, E22 CNC controller, and adaptive angle measurement for reliable, repeatable forming in demanding environments.
Capacity: 88 ton · Bending length: 10 ft (120 in) · Controller: E22 CNC · Robot payloads: 12kg, 25kg, 50kg
Key advantages for US buyers
- Automated 6-axis robot cell with payload options (12kg, 25kg, 50kg) for flexible part handling and lights-out operation.
- 88 ton bending force and 10ft (120 inch) bending length cover most panel, frame, and bracket jobs in contract manufacturing.
- E22 CNC controller enables precise, repeatable bends and supports offline programming for faster setups.
- Integrated adaptive angle measurement ensures accuracy across batch runs and material variations.
- Quick-change gripper system and sheet alignment table minimize downtime between part numbers and setups.
- Safety PLC, light curtains, and area scanner provide robust operator and robot safety compliance.
Key technical specifications
Bending force: 88 ton
Suitable for a wide range of mild steel, stainless, and aluminum thicknesses typical in fabrication and OEM work.
Bending length: 10 ft (120 in)
Handles large panels, cabinets, and structural parts up to 10 feet long.
Controller: E22 CNC
Supports advanced programming, offline setup, and adaptive forming routines.
Robot cell: 6-axis, payloads 12kg / 25kg / 50kg
Choose the right robot for your part sizes and weights.
Safety & automation: PLC, light curtains, area scanner, fume extraction
Meets modern safety standards and supports clean, automated forming with lubricants.
Additional features: Quick-change gripper, stacker pallets, sheet alignment table, adaptive angle measurement, offline programming
Engineered for high-mix, high-uptime robotic bending.
Capabilities & typical applications
This robotic press brake cell is designed to automate repetitive, high-mix bending jobs, whether as a standalone forming cell or integrated with upstream laser/punch lines and downstream welding or assembly.
- Brackets, panels, and cabinets for machinery, electrical, and HVAC industries
- Frames and structural members for OEM and contract manufacturing
- High-mix/low-volume production where rapid changeover and consistent accuracy are critical
- Cells supporting fiber laser, turret punch, or saw workflows
- Automated bending for prototypes, repeat orders, or lights-out shifts
Implementation & support for US shops
We work closely with US job shops, OEMs, and automation integrators to ensure a smooth transition to robotic bending. Our team reviews your parts, materials, and floor layout to confirm the optimal configuration before purchase.
We provide guidance on pre-installation checks (power, floor, material flow, safety), initial programming, tooling selection, and operator training—so your team is productive from day one.
- Application review: send us sample parts or drawings to confirm fit and cycle time
- Support for integrating with existing laser, punch, saw, and welding processes
- On-site commissioning and training available
Next step: Contact us with your part drawings or production goals, and we’ll recommend the right robot payload and cell configuration for your shop.
