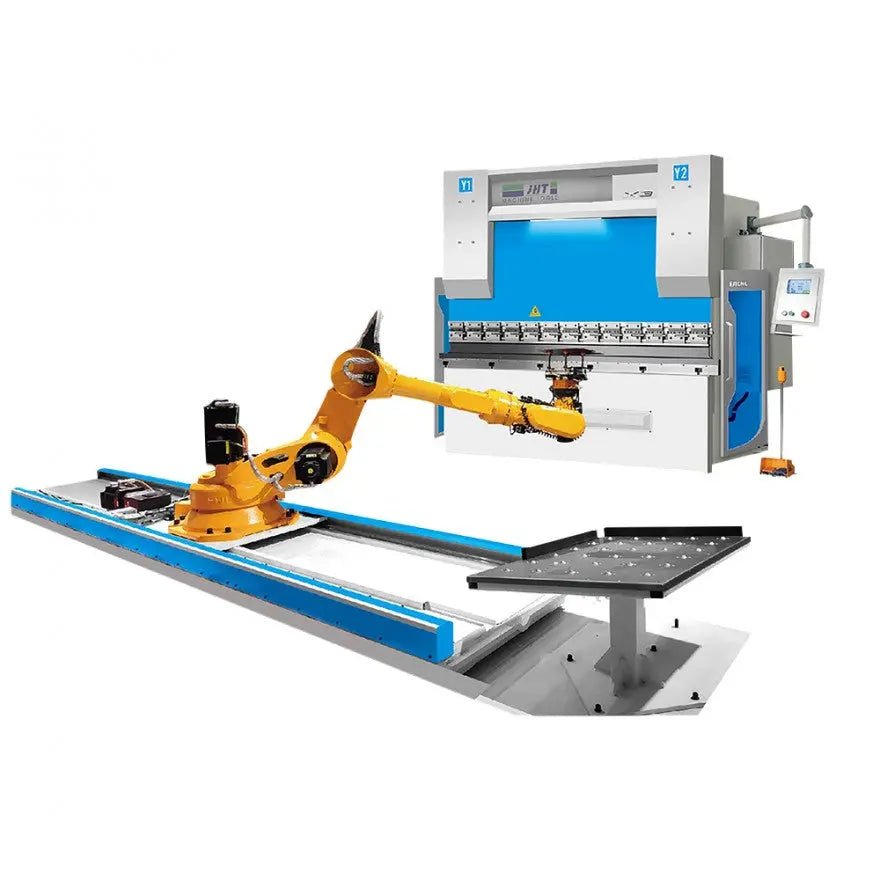

Umprotech Robotic Press Brake Cell – 240 Ton, 16ft, E22 CNC
A fully integrated robotic press brake solution for US job shops and OEMs requiring high-capacity, automated forming. Delivers 240 ton bending force across a 16ft bed, with E22 CNC and a 6-axis robotic cell for lights-out productivity and repeatable results.
Bending force: 240 ton · Bending length: 16ft (192 inch) · Controller: E22 CNC · Robot payloads: 12kg, 25kg, 50kg
Key advantages for US buyers
- 240 ton bending force handles heavy-gauge material and large part profiles
- 16ft (192 inch) bending length supports long panels, cabinets, and structural components
- Integrated 6-axis robot cell with quick-change grippers for flexible, unattended operation
- E22 CNC controller enables precise, repeatable programming and adaptive angle measurement
- Safety PLC, area scanner, and light curtains provide robust operator and cell protection
- Offline programming and stacker pallets streamline setup and reduce downtime
Key technical specifications
Bending force: 240 ton
Suitable for forming heavy-gauge steel, stainless, and large-format parts common in structural and OEM work.
Bending length: 16ft (192 inch)
Accommodates long panels, doors, frames, and oversized components in a single setup.
Controller: E22 CNC
Delivers accurate, repeatable bends with adaptive angle measurement and offline programming capability.
Robot cell: 6-axis, payload options 12kg / 25kg / 50kg
Automates loading, unloading, and part manipulation for a range of blank sizes and weights.
Safety features: Safety PLC, area scanner, light curtains, fume extraction
Ensures compliance with shop safety standards and supports safe, unattended operation.
Cell automation: Automatic gripper quick-change, stacker pallets, sheet alignment table
Supports high-mix part runs and reduces manual intervention between jobs.
Capabilities & typical applications
This robotic press brake cell is designed for integration into high-throughput forming cells, standalone robotic bending stations, or as a complement to fiber lasers and automated cutting lines.
- Long panels, doors, and cabinets for enclosures, HVAC, and architectural fabrication
- Frames, brackets, and structural members for machinery and OEM components
- High-mix/low-volume production runs with frequent changeovers
- Contract manufacturing and job shops seeking lights-out, repeatable forming
- Automated workflows for reducing manual handling and improving throughput
Implementation & support for US shops
We work closely with US job shops and OEMs to ensure a smooth transition to robotic forming. Our team can review your parts, materials, and workflows to confirm this cell is the right fit for your application.
We support everything from pre-install planning (power, floor space, material flow, safety) to operator training and initial programming. Our goal is to help your team achieve reliable, productive operation from day one.
- Pre-installation checks for power, floor, and shop integration
- Assistance with part review, bend sequences, and offline programming
- Training for operators and maintenance staff
Next step: Send us sample parts or drawings, and we’ll help confirm fit, cycle time, and configuration for your shop.
