Descripción

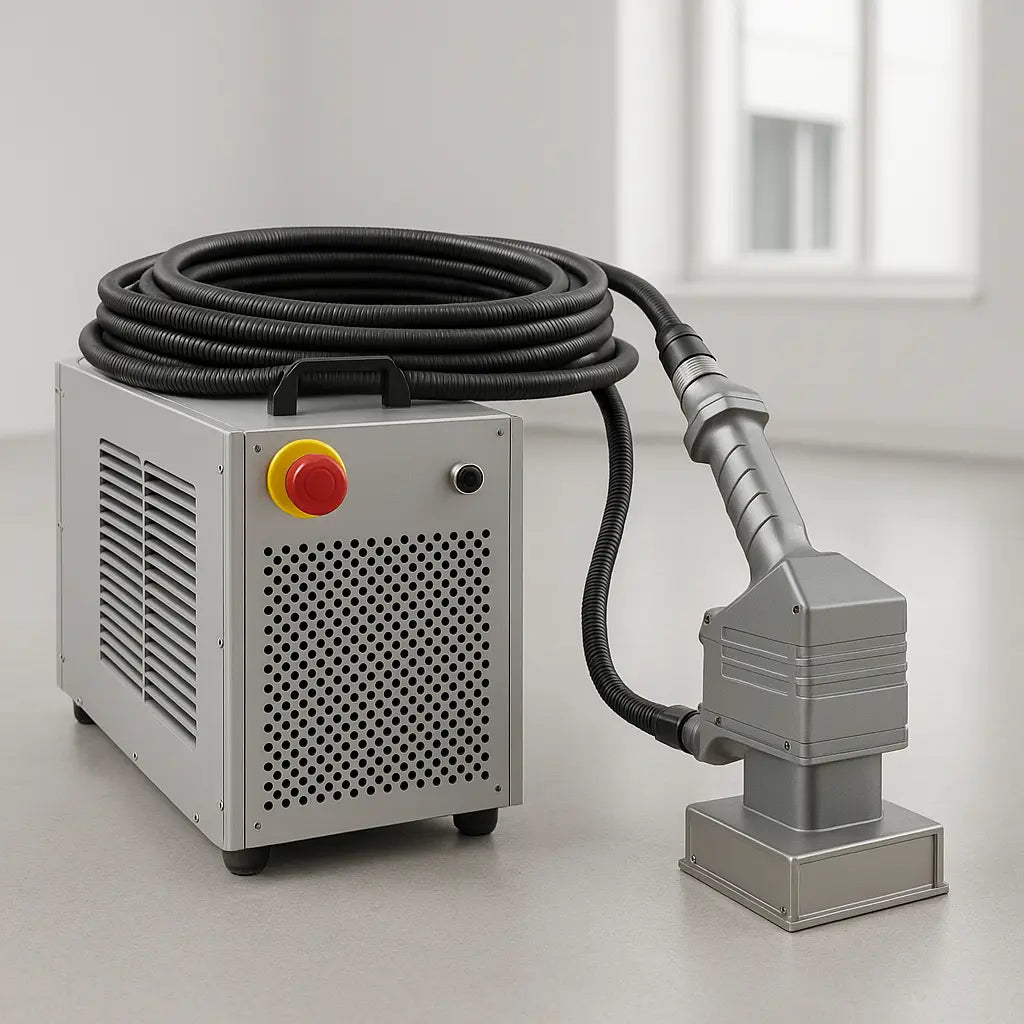

Umprotech 200W Pulsed Fiber Laser Cleaning System – 100mm Scan, 10m Cable, Air-Cooled
A mid–high power, air-cooled laser cleaning solution for rust, paint, oil, and coating removal on metal, wood, and stone. Designed for US job shops, OEMs, and fabrication teams seeking efficient, non-contact surface prep and restoration with a compact footprint and flexible reach.
Power: 200 W pulsed · Scan width: up to 100 mm · Fiber length: 10 m armored · Cooling: Air-cooled
Key advantages for US buyers
- 200 W pulsed fiber laser delivers strong removal rates for rust, paint, oil, and coatings—ideal for maintenance, fabrication, and restoration tasks.
- Up to 100 mm scan width enables efficient cleaning of small panels, brackets, flanges, welds, and edges without excessive repositioning.
- 10 m armored fiber provides extended reach for work around machines, fixtures, or in the field—no need to move heavy parts.
- Air-cooled cabinet eliminates the need for chillers or plant water, streamlining installation and maintenance in any shop or mobile setting.
- Handheld cleaning head with safety trigger and pattern scanning supports both precision work and larger area coverage.
- Intuitive HMI presets and multi-pulse modes allow operators to quickly adjust for rust, paint, or oil removal on various substrates.
Key technical specifications
Laser type: Pulsed fiber laser
Efficient, non-contact removal with minimal substrate heating or warping.
Output power: 200 W pulsed
Effective for moderate rust, paint, and industrial coating removal on metal, as well as controlled cleaning on wood and stone.
Scan width: Up to 100 mm
Wide enough for small panels and brackets, focused enough for weld seams, edges, and tools.
Fiber length: 10 m armored
Allows operators to work flexibly around equipment or large structures.
Cooling: Air-cooled cabinet
No water or chiller required—simplifies setup in shops and mobile applications.
Handheld head: Safety trigger, pattern scanning
Ergonomic for controlled operation, with built-in safety features.
Controls: HMI with presets, multi-pulse modes, configurable scan patterns
Quickly adapt to different coatings and substrates with repeatable results.
Fume handling: Extraction port provided
Connects to filtration equipment for safe operation and clean air.
Capabilities & typical applications
This 200 W pulsed fiber laser cleaning system is a versatile tool for maintenance teams, fabrication shops, and restoration specialists. It fits seamlessly into standalone cleaning stations, prep areas for welding or painting, or as a mobile solution for field service.
- Rust removal from steel parts, tools, fixtures, and machine frames
- Paint and coating stripping on small to medium metal panels, brackets, and flanges
- Weld seam and heat-affected zone (HAZ) preparation
- Gasket and oil cleanup on machinery and components
- Surface prep for bonding, painting, or finishing on metal, wood, and stone
- Refurbishment of tools, dies, and shop fixtures
- Ideal for job shops, OEMs, contract manufacturers, and maintenance crews handling high-mix, moderate-volume cleaning tasks
Implementation & support for US shops
We work closely with US job shops, OEMs, and maintenance teams to ensure a smooth transition to laser cleaning. Pre-installation reviews cover power, floor space, access, and fume extraction requirements. Our team can help you assess your parts, coatings, and substrates to confirm the 200 W system is the right fit for your cleaning needs.
Each system includes a practical training guide for setup, parameter selection, and daily operation. We offer guidance on cleaning strategies, process optimization, and integration into your workflow for maximum ROI and uptime.
- Pre-install checks for electrical, air, and safety requirements
- Application review for coatings, substrates, and part geometries
- Operator training and parameter guidance included
- Ongoing support for troubleshooting and process optimization
Next step: Send us a few sample parts or photos and we’ll confirm fit, cleaning time, and recommend the best configuration for your shop.
