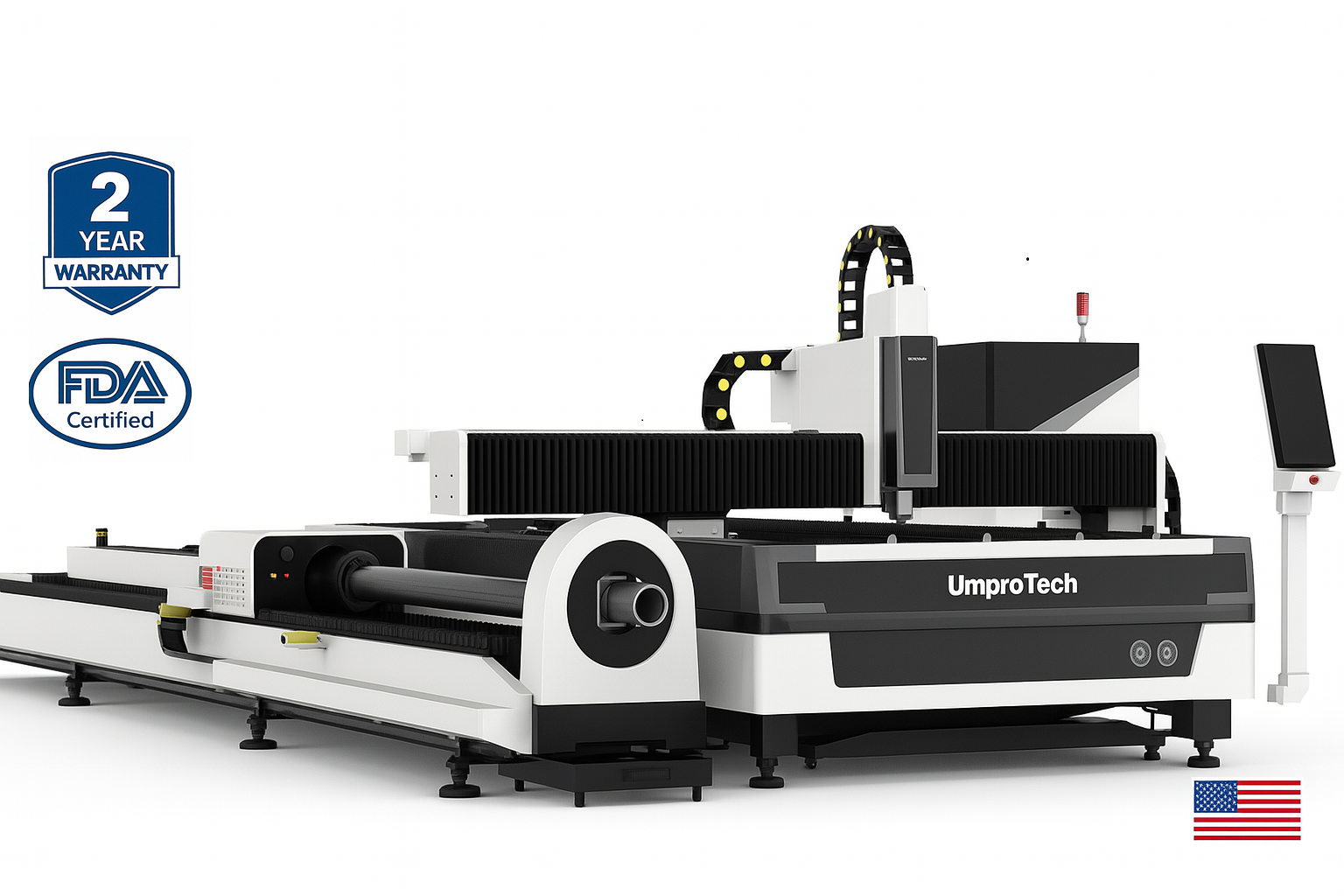

Umprotech Combined Plate & Tube Fiber Laser – 6x12ft Bed, 4kW, 24ft Tube, 8in Chuck
Engineered for US job shops, OEMs, and contract fabricators needing flexible, high-throughput laser cutting for both flat plate and long tube profiles. This combined system delivers robust capacity, automation options, and reliable integration for demanding production environments.
Bed: 6x12ft · Laser Power: 4kW · Tube: 24ft, 8in servo chuck
Key advantages for US buyers
- 6x12ft plate capacity with exchange table supports large sheets and high-mix part runs.
- 4kW fiber laser source (IPG / MAX Photonics / Raycus) cuts a wide range of metals efficiently.
- Integrated tube module handles 24ft lengths with an 8in servo-driven chuck for round, square, and rectangular profiles.
- Autofocus cutting head and pneumatic self-centering chuck improve setup speed and cut consistency.
- Optional automation: auto sheet load/unload and tube bundle loader for lights-out operation.
- Safety enclosure and light curtains included for operator protection and compliance.
Key technical specifications
Flatbed working area: 6x12ft
Accommodates full-size sheets for large panels, chassis, and nested part runs.
Laser power: 4kW fiber
Efficiently processes mild steel, stainless, and aluminum in typical thickness ranges for job shops and OEMs.
Tube cutting module: 24ft length, 8in servo chuck
Handles long tubes and profiles for structural, frame, and fabrication work.
Automation: Exchange table standard; optional auto sheet load/unload and tube bundle loader.
Boosts throughput and reduces manual handling for high-volume or lights-out shifts.
Cutting head: Autofocus, bevel-ready (option)
Fast setup and consistent quality across material types and thicknesses.
Safety: Full enclosure, light curtains
Meets US shop safety requirements and supports operator confidence.
Software: Nesting/CAD import (DXF/STEP)
Simplifies programming for both plate and tube parts.
Capabilities & typical applications
This combined plate and tube laser is ideal for shops looking to consolidate flat and tubular cutting into a single, automated cell. It fits seamlessly alongside press brakes, welding cells, and material handling lines.
- Flat parts: brackets, panels, gussets, base plates, enclosures, and nested components
- Tube and profile: frames, supports, rails, machine bases, furniture, and structural members
- Industries: contract fabrication, machinery, construction, metal furniture, HVAC, and general job shops
- Supports high-mix/low-volume runs, repeat orders, and prototype-to-production workflows
Implementation & support for US shops
We work closely with US fabricators to ensure a smooth installation—reviewing floor space, power, material flow, and safety requirements up front. Our team can assist with part review, nesting strategies, and initial programming to get you running quickly.
- Pre-install checks for electrical, air, and shop layout
- Assistance with DXF/STEP import, nesting, and cut parameter setup
- Operator training and handover to maximize uptime from day one
Next step: Send us your sample parts or project requirements and we’ll confirm fit, cycle time, and recommend the right configuration for your workflow.
