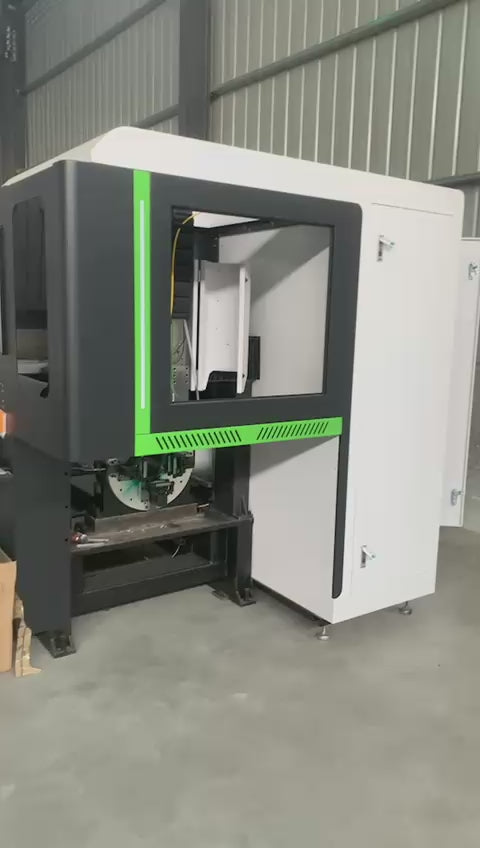

UmproTech T-30 Tube Fiber Laser
3 m (118"), 0.8–6.3" diameter, 1.5 kW fiber laser
The UmproTech T-30 is a compact, high-precision tube fiber laser cutting system built for small and mid-sized U.S. fabrication shops. It processes round, square, and profile tubes up to 118" (3,000 mm) in length and delivers reliable throughput, quick setups, and consistent cut quality across a wide range of materials and part sizes.
Key Specs
- Max tube length: 118" (3,000 mm)
- Tube diameter range: 0.8–6.3" (20–160 mm)
- Laser power: 1.5 kW (1500 W) MAXphotonics fiber source
- Cutting head: RayTools BM110 autofocus (Switzerland)
- Control system: Tubes T-Lite + TubePRO (FSCUT3000)
- Max cutting speed: 66 ft/min (20 m/min)
- Max rapid traverse: 262 ft/min (80 m/min)
- Positioning accuracy: ±0.0012" (±0.03 mm)
- Repeatability: ±0.0008" (±0.02 mm)
Key Advantages for U.S. Buyers
- Handles round, square, and profile tubes from 0.8 to 6.3" (20–160 mm) diameter and up to 118" (3,000 mm) length—ideal for brackets, frames, handrails, and structural components.
- MAXphotonics fiber laser source at 1.5 kW supports a wide range of thicknesses and materials in light and medium fabrication.
- RayTools BM110 autofocus cutting head ensures precise, consistent cuts with minimal manual adjustment.
- Automatic pneumatic chuck and intelligent tube support system streamline loading and help prevent tube sagging.
- Cutting speeds up to 20 m/min and rapid traverse up to 80 m/min help maximize shop throughput.
- Industrial-grade FUJI servo motors, HIWIN linear guides, TBI ball screw, and SHIMPO-NIDEC planetary gearboxes deliver reliable motion and long-term accuracy.
- Centralized automatic lubrication, industrial chiller, and robust pneumatic and electrical components are designed for high uptime and long service life.
Technical Specifications
Model & Working Range
| Model | T-30 |
|---|---|
| Max tube length | 118" (3,000 mm) |
| Tube outer diameter | 0.8–6.3" (20–160 mm) |
| Tube types | Round, square, and special profile tubes |
Cooling & Power
| Cooling type | Industrial water chiller HAN LI / S&A (China) |
|---|---|
| Main input voltage | 380 V, three-phase (transformer may be required for U.S. plants) |
| Mechanical warranty | 2 years |
Motion System & Mechanics
| Linear guides (X/Y/Z) | HIWIN square-section linear guides (Taiwan) |
|---|---|
| X/Y drive | Helical rack-and-pinion |
| Z-axis drive | TBI high-precision ball screw (Taiwan) |
| Gearbox | SHIMPO-NIDEC planetary precision gearbox (Japan) |
| Pneumatic components | SMC / AirTac (Japan/Taiwan) |
| Electrical components | Schneider Electric (France) |
| Lubrication | Centralized automatic lubrication system |
| Acceleration | Up to 0.8 g |
| Positioning accuracy | ±0.0012" (±0.03 mm) |
| Repeatability | ±0.0008" (±0.02 mm) |
Laser & Cutting Head
| Laser type | Fiber laser |
|---|---|
| Laser source | MAXPHOTONICS |
| Laser power | 1.5 kW (1500 W) |
| Laser wavelength | 1070 nm |
| Laser lifetime | Up to 100,000 hours |
| Laser source warranty | 2 years |
| Cutting head | RayTools BM110 (Switzerland), autofocus |
| Focus control | Automatic focus adjustment |
| Height sensing | Automatic height sensor |
Servo Motors (FUJI – Japan)
| Rotary axis W1 servo | FUJI 1.8 kW |
|---|---|
| Rotary axis W2 servo | FUJI 1.3 kW |
| Axis Y2 servo | FUJI 1.8 kW |
| Axis X servo | FUJI 1.0 kW |
| Axis Z servo | FUJI 0.4 kW |
Performance
| Max cutting speed | 66 ft/min (20 m/min) |
|---|---|
| Max rapid traverse | 262 ft/min (80 m/min) |
| Minimum kerf width | 0.005" (0.12 mm) |
Machine Dimensions & Weight
| Machine length | 244" (6,200 mm) |
|---|---|
| Machine width | 94.5" (2,400 mm) |
| Machine height | 94.5" (2,400 mm) |
| Machine weight | ≈4,410 lb (2,000 kg) |
Structural & Functional Features
- Automatic pneumatic chuck: fully automatic, driven pneumatic chuck provides stable clamping of various tube shapes with high load capacity and anti-slip grip.
- Automatic tube support: intelligent tube support stand helps prevent sagging on longer tubes and maintains cut accuracy.
- High-precision rotary drive: precision gear drive converts encoder pulses into smooth, accurate tube rotation.
- HIWIN linear guides: high-rigidity square-section linear guides on all axes for accurate positioning and long life.
- TBI ball screw (Z axis): backlash-free vertical movement for high-precision cutting and contouring.
- Helical rack on X/Y: high speed, low noise, and high accuracy for gantry motion.
- SHIMPO-NIDEC planetary gearbox: compact, high-torque, high-efficiency gearbox with no routine maintenance required.
- Industrial chiller HAN LI / S&A: automatic, closed-loop cooling of the laser source and cutting head to prevent overheating.
- Pneumatic system SMC / AirTac: high-quality pneumatic valves and components for reliable operation.
- Industrial LED display & console: integrated operator console with high-clarity display and PC for machine control.
Control System & Software
The T-30 uses the Tubes T-Lite + TubePRO control system (FSCUT3000), a dedicated tube laser cutting platform that combines motion control, laser process control, and CAM functionality:
- Tube-specific CAD/CAM environment
- Layer and process management
- Image and geometry processing
- Cut parameter setup and sequence optimization
- Toolpath planning and cutting simulation
- Efficient nesting of round, square, and profile tubes
Standard Package
- UmproTech / MetalTec T-30 fiber tube laser system
- MAXPHOTONICS fiber laser source, 1.5 kW
- FUJI servo motors and drives (5 axes)
- SHIMPO-NIDEC planetary gearbox
- Integrated control console with industrial LED/LCD display and PC
- FSCUT3000S control system + TubesT Lite + TubePRO software
- RayTools autofocus cutting head with automatic height tracking
- Gas pressure monitoring and safety system
- Industrial water chiller HAN LI / S&A
- Wireless handheld remote control
- Automatic centralized lubrication system
- Fume extraction / exhaust fan system
- Safety sensor for working gas pressure drop
- Voltage stabilizer
- AIRTac solenoid valves (Taiwan)
- SMC proportional valve (Japan)
