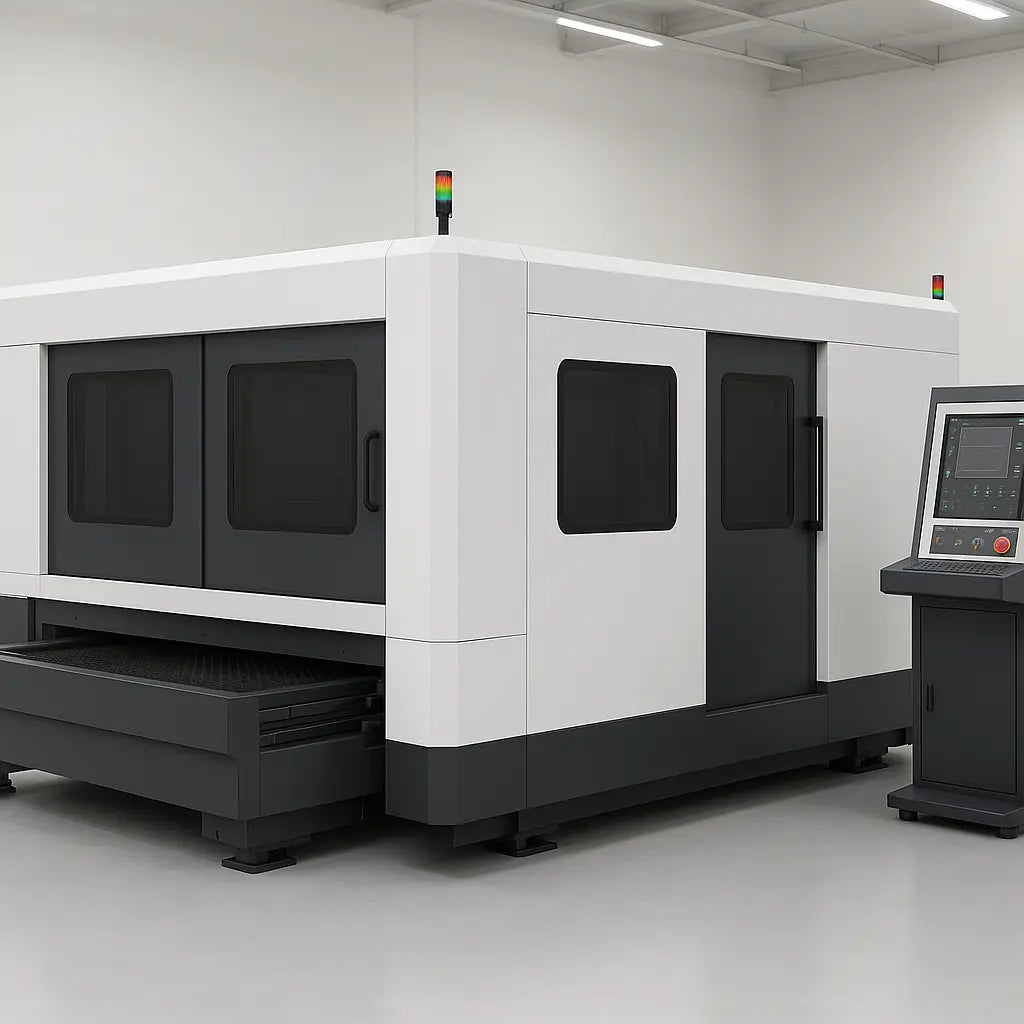

UmproTech 2060HP Enclosed High Power Fiber Laser — 2030×6050 mm, up to 30 kW
The UmproTech 2060HP is a heavy-duty, fully enclosed fiber laser cutting system designed for thick plate, structural steel, and demanding 24/7 production environments. Built for US job shops, OEMs, and fabrication cells requiring maximum throughput and safety.
Working area: 2030 × 6050 mm · Laser power: 6 kW – 30 kW · Dual table exchange
Key advantages for US buyers
- Massive 2030 × 6050 mm (80" × 238") working area handles full-size plates and large-format jobs.
- High power fiber laser source options from 6 kW up to 30 kW for fast processing of thick steel and stainless.
- BLT 421 autofocus cutting head with water cooling delivers consistent quality on long runs and heavy sections.
- HIWIN 30 mm linear guides, YYC helical rack & pinion, and TBI ball screw for smooth, precise motion.
- Rapid traverse up to 110 m/min and acceleration up to 1.2G support high-volume, high-mix production.
- Fully enclosed cabin with fume extraction and automatic dual table exchange maximizes operator safety and uptime.
Key technical specifications
Working area: 2030 × 6050 mm (80" × 238")
Accommodates full sheets, long profiles, and large nested parts for shipbuilding, structural, and fabrication work.
Laser power: 6 kW – 30 kW (Raycus or IPG)
Configured for your material mix and thickness requirements, from mid-gauge to heavy plate.
Cutting head: BLT 421 autofocus with water cooling
Stable, repeatable cutting—even on thick or heat-sensitive materials.
Motion system: HIWIN 30 mm linear guides, YYC helical rack & pinion, TBI ball screw
Delivers precise positioning and long-term reliability in demanding production.
Motors & drives: FUJI servo motors, NIDEC-SHIMPO reducers
Industrial-grade components for consistent performance and minimal downtime.
Max cutting speed: 50 m/min
Efficient throughput on a wide range of materials and part sizes.
Rapid traverse: 110 m/min
Reduces non-cutting time for high-mix, high-volume operations.
Acceleration: up to 1.2G
Supports fast indexing and part changeover for demanding schedules.
Minimum kerf width: 0.12 mm
Enables precision cutting for tight-tolerance jobs.
Enclosure & safety: Fully enclosed cabin, fume extraction, automatic dual table exchange
Protects operators and maintains a clean production environment.
Warranty: 3 years (machine), 2 years (laser source)
Backed by US-based service and support.
Capabilities & typical applications
The 2060HP is engineered for integration in high-output fabrication lines, standalone cutting cells, or as a complement to press brakes, welding cells, and material handling systems.
- Large-format sheet and plate processing for shipbuilding, structural steel, and heavy equipment.
- Production of brackets, frames, panels, and nested profiles for contract manufacturing and OEMs.
- Ideal for high-mix/low-volume runs, repeat jobs, and prototyping where speed and accuracy are critical.
- Supports integration into automated lines with press brakes, saws, and welding fixtures.
Implementation & support for US shops
Our team works closely with US job shops and OEMs to ensure a smooth transition—reviewing your parts, materials, and floor plan before delivery. We coordinate installation, operator training, and basic programming to get your team productive quickly.
- Pre-installation review: power, floor space, material flow, and safety requirements.
- Application support: part fit-up, nesting strategies, and process optimization.
- US-based service, warranty, and ongoing technical support.
Next step: Send us a few sample parts (DXF/STEP/PDF) and we’ll confirm fit, cycle time, and optimal configuration for your operation.
