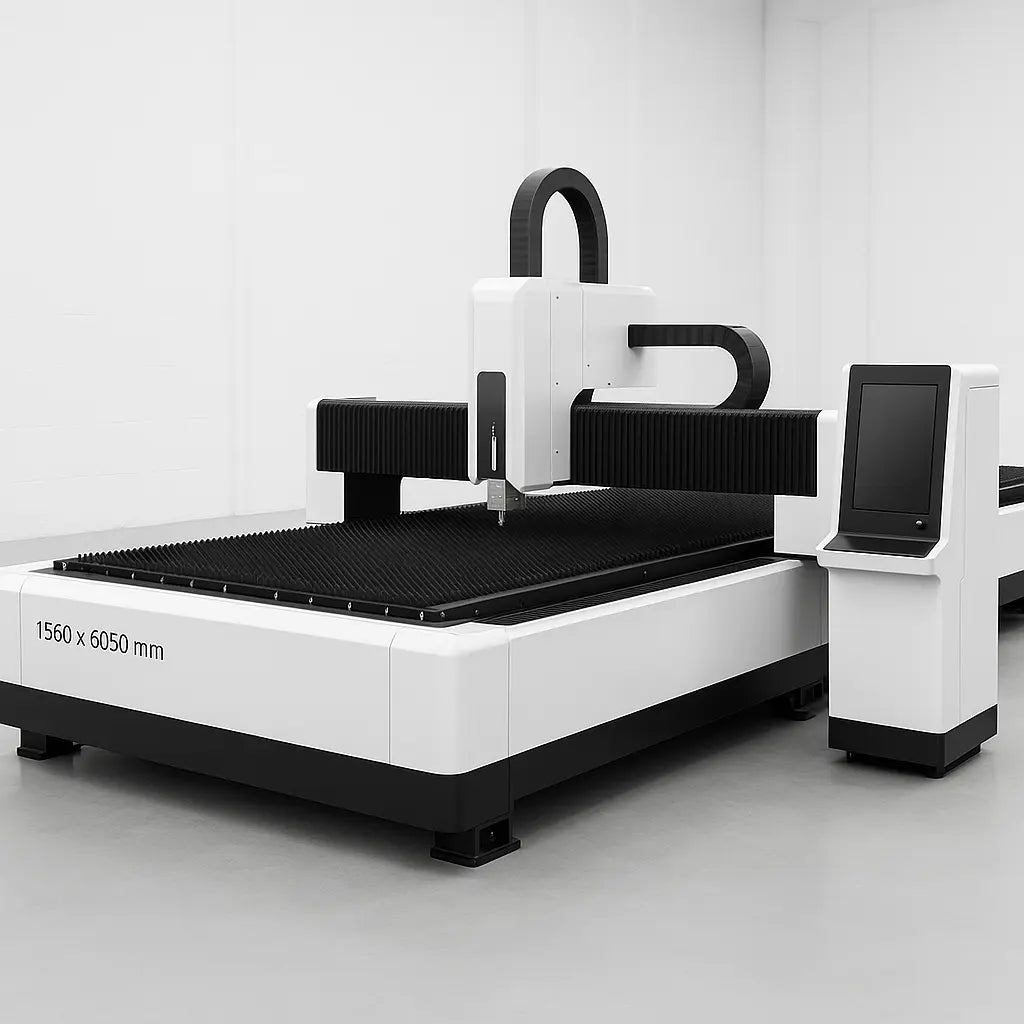

UmproTech 1560S — 61" × 238" Large Format Fiber Laser Cutter
The UmproTech 1560S is engineered for US fabricators who need to process oversized plates and long parts with precision and reliability. Designed for structural steel, platforms, frames, and large housings, this open-type fiber laser delivers the throughput and flexibility required for demanding production environments.
Working area: 1560 × 6050 mm (61" × 238") · Laser power: 1500 / 2000 / 3000 / 6000 W · Cutting speed: up to 30 m/min
Key advantages for US buyers
- Large 1560 × 6050 mm (61" × 238") working area for full-size plates, long beams, and oversized parts
- Available with Raycus fiber laser sources from 1500 W up to 6000 W for a wide range of material thicknesses
- Open-type design for easy loading and unloading of large sheets and profiles
- Heavy-duty welded frame (~4,000 kg) with stress relief for stable, vibration-free cutting
- Autofocus BOCI / RayTools cutting head for fast changeovers and consistent edge quality
- LAAK linear guides, YYC helical rack & pinion, and TBI ball screw on Z for high accuracy and smooth motion
- Supports all major CAD/CAM file formats for seamless integration with your existing workflow
Key technical specifications
Working area: 1560 × 6050 mm (61" × 238")
Handles full-size plates and extra-long parts for structural, architectural, or industrial fabrication.
Laser power: 1500 / 2000 / 3000 / 6000 W (Raycus fiber laser)
Choose the right wattage for your material thickness and production needs.
Cutting head: Autofocus BOCI / RayTools
Automatic focus adjustment for fast setup and consistent cut quality across different materials.
Motion system: LAAK linear guides, YYC helical rack & pinion, TBI ball screw (Z axis)
Delivers high precision, smooth travel, and long-term reliability.
Frame: Heavy-duty welded, stress-relieved (~4,000 kg)
Minimizes vibration for accurate, repeatable cutting on large parts.
Max cutting speed: up to 30 m/min
Efficient throughput for production environments.
Rapid traverse: up to 100 m/min
Shortens non-cutting time for improved productivity.
Cooling & lubrication: S&A industrial chiller, centralized automatic lubrication
Ensures stable operation and reduces maintenance requirements.
Capabilities & typical applications
This machine is built for shops that need to cut large-format sheet and plate with precision—whether as a standalone cell or as part of a complete fabrication line with press brakes, saws, or welding stations.
- Large panels, frames, and platforms for machinery and structural applications
- Long parts for enclosures, cabinets, and housings
- Profiles and beams for construction, OEM, and contract manufacturing
- High-mix/low-volume production or repeat runs of oversized components
- Ideal for metal fabrication, heavy equipment, and job shop environments
Implementation & support for US shops
We work closely with US job shops, OEMs, and contract manufacturers to ensure a smooth implementation. Our team can review your part drawings, material types, and thickness ranges to confirm the right configuration before purchase.
We assist with pre-installation planning—power requirements, floor layout, and workflow integration—and provide guidance on programming, nesting, and maintenance so your team is productive from day one.
- Pre-installation checks for power, space, and material handling
- Application review to match laser power to your parts and materials
- Training and handover for operators and programmers
- Ongoing support for troubleshooting and process optimization
Next step: Send us your sample parts or material specs, and we’ll confirm fit and recommend the optimal configuration for your workflow.
