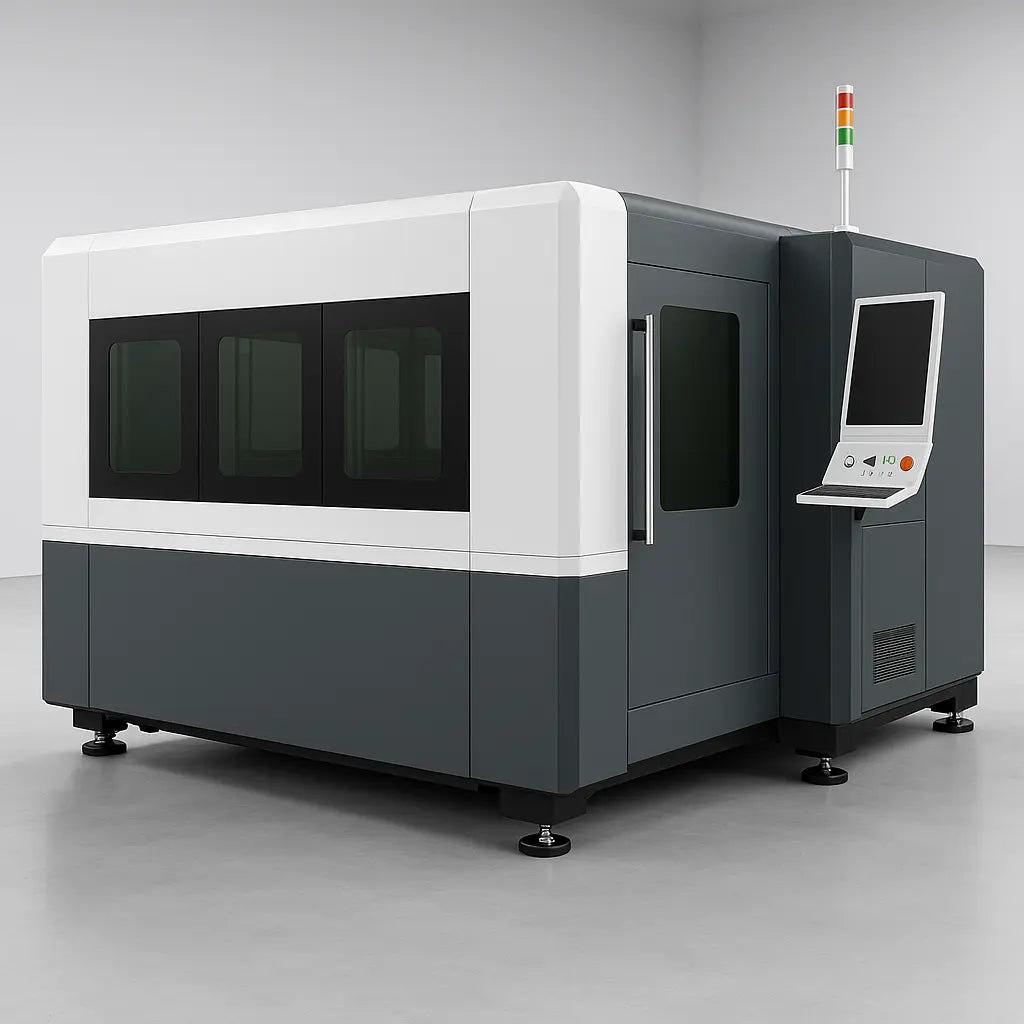

UmproTech 1530P Enclosed Fiber Laser – 1530 × 3050 mm, 3–20 kW
The UmproTech 1530P is a fully enclosed, high-speed fiber laser cutting system designed for 60" × 120" sheet metal. With automatic dual table exchange and up to 20 kW laser power, it delivers high throughput and safety for demanding US fabrication shops and OEMs.
Working area: 1530 × 3050 mm (60" × 120") · Laser power: 3 kW – 20 kW · Dual table exchange
Key advantages for US buyers
- Handles full 5' × 10' sheets with a 1530 × 3050 mm working area for maximum material utilization.
- Selectable Raycus or IPG fiber laser source from 3 kW up to 20 kW—match power to your material mix and throughput needs.
- Automatic dual table exchange reduces idle time and boosts productivity for high-volume operations.
- BOCI / RayTools autofocus cutting head ensures consistent quality and fast changeovers across job runs.
- Robust motion platform: HIWIN 30 mm linear guides, YYC helical rack & pinion, and TBI ball screw for accuracy and durability.
- Full enclosure with fume extraction supports a safer, cleaner shop environment and compliance with US safety standards.
Key technical specifications
Working area: 1530 × 3050 mm (60" × 120")
Processes full-size sheets for efficient nesting and reduced handling.
Laser power: 3 kW – 20 kW (Raycus or IPG)
Choose the right power for your material thickness and production goals.
Cutting head: BOCI / RayTools autofocus
Automatic focus adapts to material changes and part geometry.
Table exchange: Automatic dual table
Swap sheets quickly to minimize downtime between cycles.
Motion system: HIWIN 30 mm linear guides, YYC helical rack & pinion, TBI ball screw
Delivers smooth, precise movement for demanding profiles.
Drives: FUJI servo drives, NIDEC-SHIMPO reducers
Reliable, high-speed positioning for repeatable results.
Max cutting speed: 50 m/min
Supports high-volume production on thin to medium gauge materials.
Rapid traverse: 110 m/min
Shortens non-cutting moves and boosts overall throughput.
Acceleration: up to 1.2G
Fast acceleration for sharp corners and intricate parts.
Minimum kerf width: 0.12 mm
Enables fine detail and tight part nesting.
Enclosure: Full enclosure with fume extraction
Improves operator safety and air quality in the shop.
Lubrication & cooling: Centralized automatic lubrication, HANLI industrial chiller
Reduces maintenance and ensures stable operation during long shifts.
Capabilities & typical applications
This system is engineered for high-mix, high-throughput sheet metal cutting—ideal as a core machine in standalone cells or integrated with press brakes, welding, and downstream automation.
- Flat parts: brackets, panels, enclosures, frames, and gussets
- Industries: metal fabrication, contract manufacturing, machinery, HVAC, and OEM production
- Supports fast changeovers for job shops running varied materials and part geometries
- Excellent fit for shops pairing with press brakes, robotic welding, or material handling systems
Implementation & support for US shops
We work closely with US fabricators and OEMs to ensure a smooth installation—from reviewing your floor plan and power requirements to confirming material flow and safety needs. Our team can assist with part reviews, nesting strategies, and operator training to get your team up to speed quickly.
Next step: Send us your sample parts or production requirements, and we’ll confirm fit, cycle time, and optimal configuration for your workflow.
