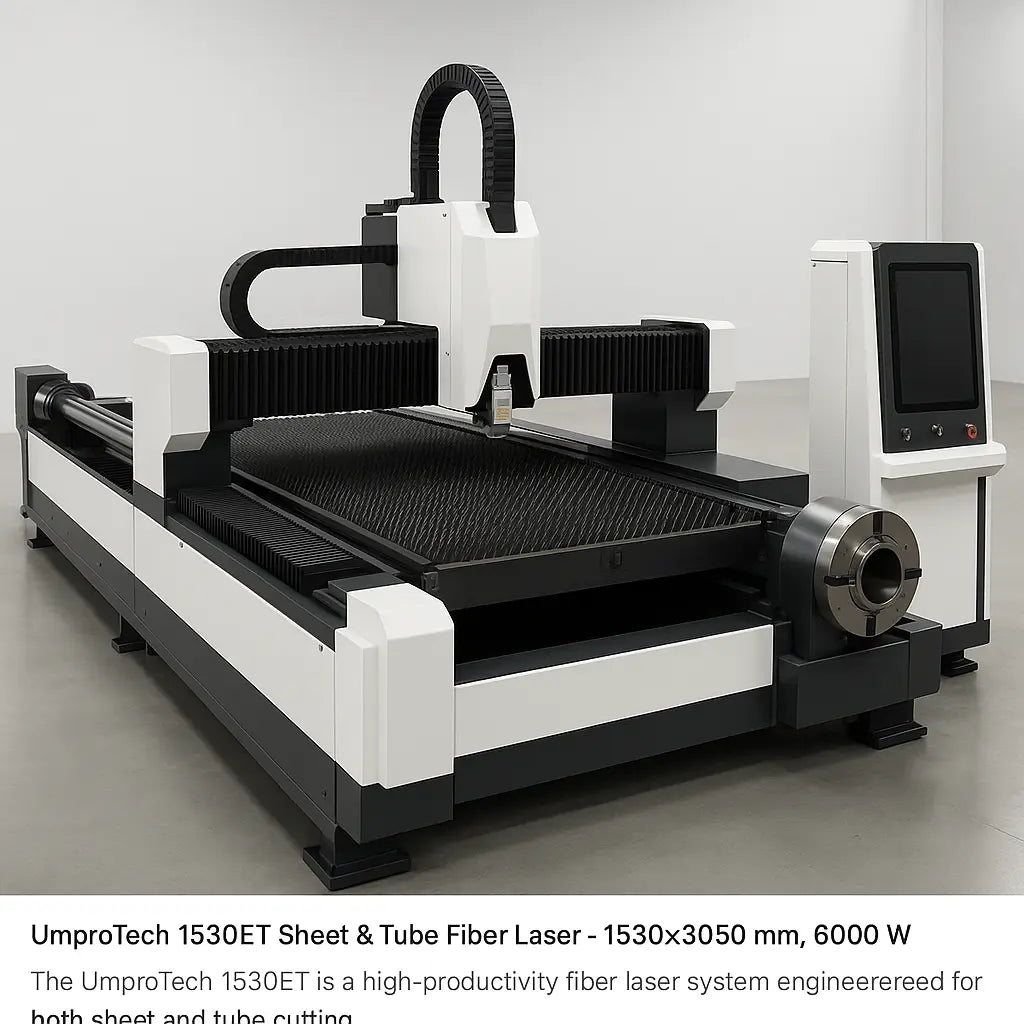

UmproTech 1530ET Sheet & Tube Fiber Laser — 1530×3050 mm, 6000 W, Dual Table
The UmproTech 1530ET is a high-productivity fiber laser system engineered for both sheet and tube cutting. With a 1530 × 3050 mm (60" × 120") sheet capacity, up to 3,000 mm tube length, and dual automatic table exchange, this machine is built for US job shops, OEMs, and fabrication cells demanding continuous throughput and versatility.
Sheet area: 1530 × 3050 mm · Tube: up to 3,000 mm × 220 mm Ø · Laser power: 6000 W
Key advantages for US buyers
- Cut both flat sheet (1530 × 3050 mm) and tube (up to 3,000 mm length, 20–220 mm diameter) on a single platform.
- Raycus fiber laser source (up to 6000 W) delivers fast, precise cutting in mild steel, stainless, and aluminum.
- Dual automatic table exchange maximizes uptime—unload and reload sheets while the machine keeps cutting.
- RayTools BM111 autofocus head ensures consistent cut quality and reduced setup time across material thicknesses.
- Robust motion system: HIWIN linear guides, YYC rack & pinion, and TBI ball screw for accuracy and longevity.
- CypCut CNC, HANLI chiller, and centralized lubrication streamline operation and maintenance.
Key technical specifications
Sheet working area: 1530 × 3050 mm (60" × 120")
Supports full 5' × 10' sheets—ideal for a wide range of part sizes and nesting strategies.
Tube cutting capacity: up to 3,000 mm length, 20–220 mm diameter
Handles common tube and pipe profiles for frames, supports, and structural components.
Laser source: Raycus fiber laser, 3000–6000 W (6000 W standard)
High power for fast cutting speeds and the flexibility to process a variety of metals and thicknesses.
Cutting head: RayTools BM111 autofocus
Automatic focus adjustment for consistent edge quality and minimal manual intervention.
Table system: Dual automatic table exchange
Enables non-stop production—swap sheets while the laser keeps working.
Motion system: HIWIN linear guides, YYC rack & pinion, TBI ball screw
Delivers precision, stability, and long-term reliability in demanding shop environments.
Controller: CypCut CNC
Intuitive programming and nesting for high-mix, low-volume, and repeat production.
Cooling & maintenance: HANLI chiller, centralized lubrication
Ensures optimal laser performance and reduces routine maintenance time.
Capabilities & typical applications
This combination fiber laser is designed for shops needing fast turnaround on both sheet and tube parts—whether as a standalone cell or integrated with downstream forming, welding, or assembly processes.
- Flat parts: brackets, panels, covers, gussets, base plates, and enclosures up to 60" × 120".
- Tube and pipe: frames, supports, racks, and custom profiles up to 3,000 mm in length and 220 mm diameter.
- Industries: metal fabrication, contract manufacturing, machinery, structural components, and OEM part supply.
- Ideal for high-mix/low-volume jobs, prototyping, and flexible production cells.
Implementation & support for US shops
Our team supports you from pre-install planning (power, floor space, workflow) to commissioning and training. We help review your parts and material mix to confirm the 1530ET is the right fit before purchase.
We regularly work with US job shops and OEMs running high-mix sheet and tube cutting. Our support includes programming basics, nesting strategies, and operator training to maximize uptime from day one.
- Pre-install checks for power, floor space, and material flow
- Application review to confirm fit for your parts and thicknesses
- Training on CypCut CNC, maintenance, and best practices
Next step: send us your sample parts or drawings, and we’ll confirm fit, cycle time, and configuration for your operation.
