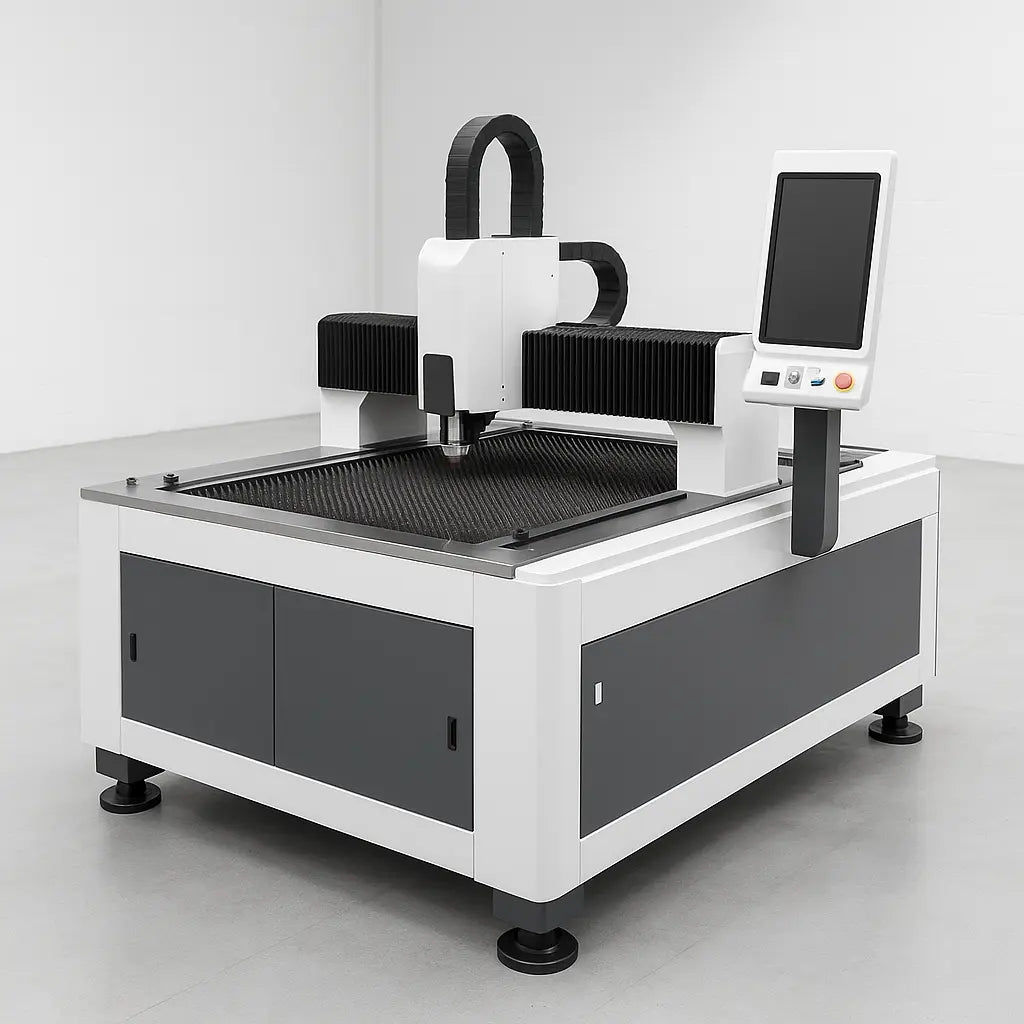

UmproTech UM-1515E ECO — 1300×1300 mm Open Type Fiber Laser Cutter
The UM-1515E ECO brings industrial-grade fiber laser cutting to compact spaces, delivering clean, accurate results for job shops, R&D labs, and light production. Designed for flexibility and ease of use, it handles a wide range of metals with minimal setup time.
Working area: 1300 × 1300 mm (≈ 51" × 51") · Laser power: 1500–6000 W · Controller: CypCut
Key advantages for US buyers
- 1300 × 1300 mm (51" × 51") working area fits standard sheet sizes for prototyping, small parts, and batch runs.
- Open table design allows fast, ergonomic loading and unloading—ideal for high-mix, quick-turn jobs.
- MAXphotonics fiber laser source (1500–6000 W) supports a range of metals and thicknesses with consistent quality.
- RayTools BM110 cutting head with water cooling ensures stable operation and long consumable life.
- Japanese Yaskawa servos and Shimpo reducers provide precise, repeatable motion for tight tolerances.
- Includes CypCut controller with CypOne CAM—easy import of DXF, DWG, AI, PLT files for seamless programming.
- US-based support, installation, and operator training included for a smooth start-up.
Key technical specifications
Working area: 1300 × 1300 mm (≈ 51" × 51")
Accommodates standard sheet stock for small to mid-size parts, prototypes, and production runs.
Laser power: 1500–6000 W (MAXphotonics fiber laser source)
Choose the right wattage for your typical material thickness and throughput requirements.
Cutting head: RayTools BM110 (Switzerland)
Fully enclosed beam path and water cooling for reliable, high-quality cutting.
Motion system: Yaskawa servo motors, Shimpo reducers
Delivers stable, repeatable positioning for tight tolerances and smooth edges.
Controller: CypCut with CypOne CAM
Supports DXF, DWG, AI, PLT file formats for flexible programming and fast job setup.
Positioning accuracy: ±0.01 mm
Ensures precise part geometry and repeatability, even on complex contours.
Acceleration: up to 1G
Fast axis movement for high productivity and reduced cycle times.
Construction: Aviation-grade aluminum gantry, dual rack & pinion drive
Rigid, lightweight structure for consistent performance and long-term reliability.
Included systems: Industrial water chiller, centralized lubrication, wireless handheld remote
Supports continuous operation and easy maintenance.
Capabilities & typical applications
This compact open-type fiber laser is a strong fit for shops needing flexible sheet metal processing—whether as a standalone cell or to complement press brakes, saws, and welding stations.
- Cutting of carbon steel, stainless steel, and other metals (material and thickness depend on selected laser power)
- Production of brackets, panels, enclosures, chassis, small frames, and precision prototypes
- Ideal for job shops, contract manufacturers, R&D labs, and OEMs with high-mix, low-volume needs
- Supports quick changeovers and short runs for prototyping or custom projects
- Integrates well with downstream forming, bending, and welding processes
Implementation & support for US shops
We work closely with US job shops, OEMs, and contract manufacturers to ensure a smooth transition—from pre-install checks (power, floor space, material flow) to operator training and commissioning. Our team can review your parts, materials, and thickness ranges to confirm the best laser power and configuration for your workflow.
- On-site installation and operator training included
- US-based technical support and parts availability
- Assistance with basic programming, nesting, and process optimization
Next step: Send us your sample parts or drawings (DXF/STEP/PDF) and we’ll confirm fit, cycle time, and the right configuration for your needs.
