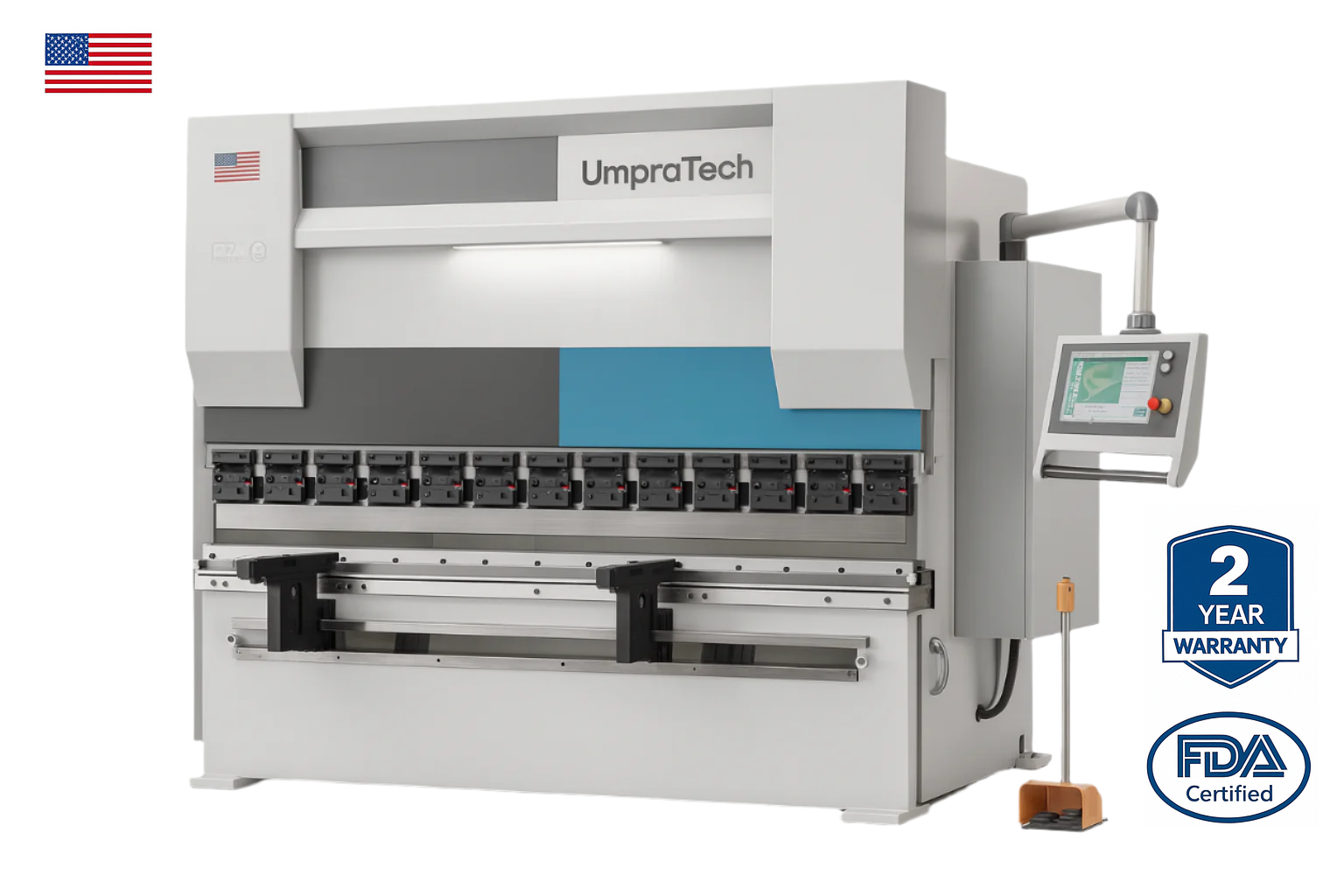

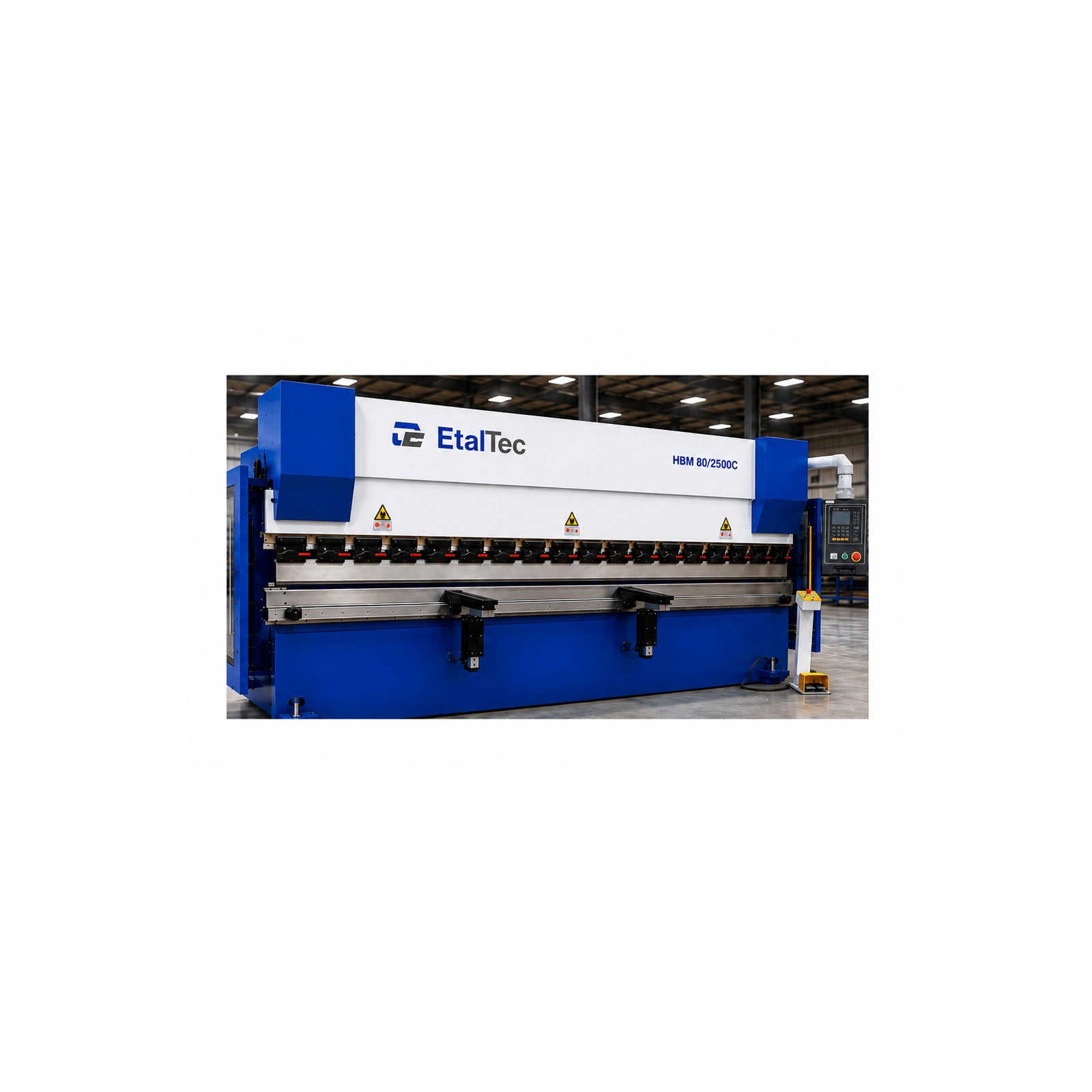

8 ft Press Brake — 80 Ton Class with E22 Controller
Robust 8 ft hydraulic press brake for US job shops and OEM cells needing reliable high-mix bending with fast, repeatable setups. Great core brake for panels, brackets, frames, and cabinet work.
Capacity: 80 US tons (≈711 kN) · Length: 8 ft (96 in / 2438 mm) · Controller: E22 NC
Backgauge: X axis (R optional) · Power (US): 480V 3-phase 60Hz (transformer/regional options available)
Key advantages for US buyers
- 8 ft working length: panels, enclosures, channels, frames—less re-positioning.
- 80T class capacity: strong everyday range for mild steel, stainless, and aluminum (capacity depends on tooling and bend length used).
- E22 NC: fast setup with stored programs and automatic backgauge positioning.
- Backgauge options: X/R with upgrades to Z1/Z2, X1/X2, and crowning for complex work.
- Balanced cycle times: hydraulic speeds tuned for productivity and bend quality.
- Availability: in-stock or short lead-time configurations.
Key specs (typical)
- Force: 80 US tons (≈711 kN) · Length: 96 in (2438 mm)
- Distance between frames: ~80–84 in (model-dependent)
- Stroke / daylight / throat: build-dependent (confirmed on quote & GA drawing)
- Backgauge: X (R optional; Z1/Z2 and X1/X2 optional)
- Motor: typically 10–20 HP (7.5–15 kW), configuration dependent
- Safety: foot pedal + E-stop; light curtain/guarding options available
For accurate capacity, share material + thickness + longest bend length + desired inside radius and we’ll confirm with a tonnage chart.
Typical applications
- Brackets, panels, enclosures, cabinet work up to 8 ft
- Frames, channels, guards, structural components
- HVAC and contract manufacturing parts
- High-mix prototypes and repeat production runs
Get a fast quote
Send: ZIP + material + thickness + longest bend length + shop power. We’ll confirm configuration, delivered pricing, and lead time.
