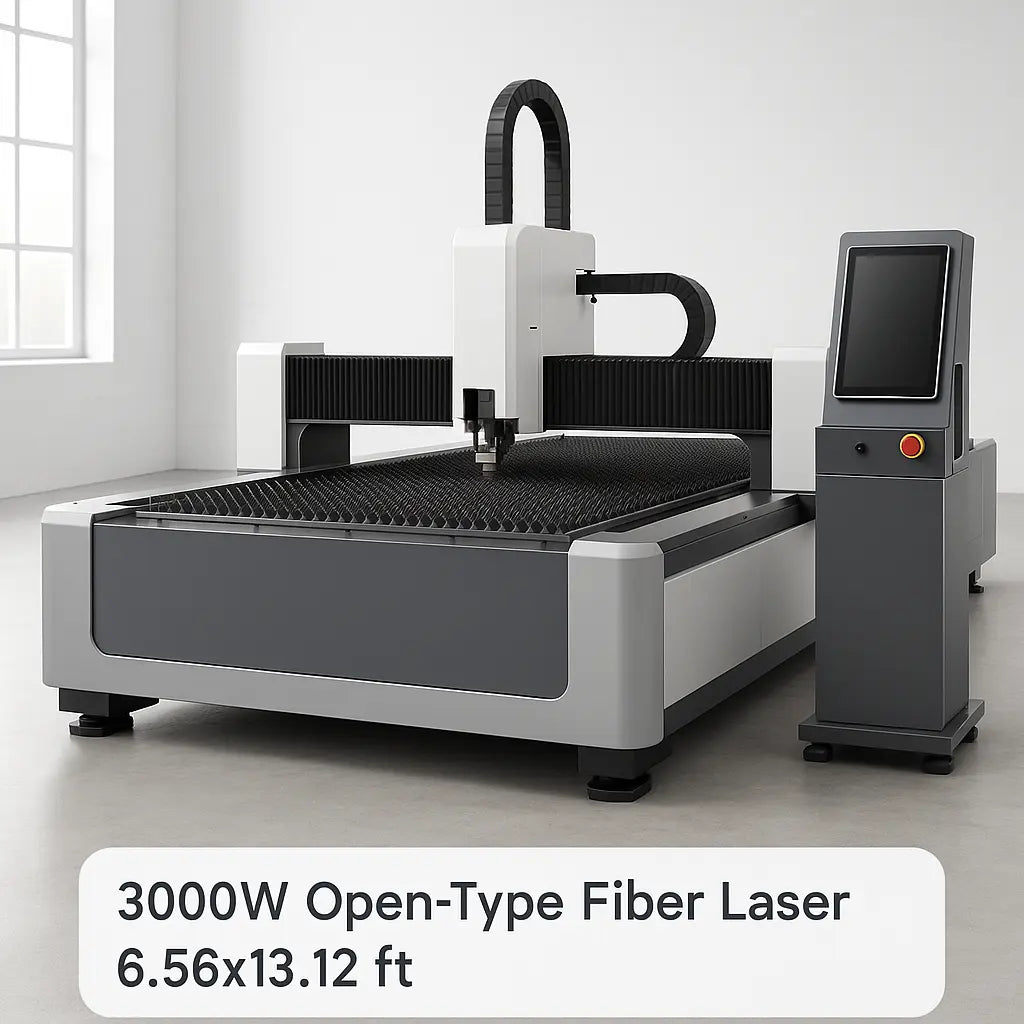

ANCHU LASER SheetCut 2040 Lite – 3000W Open-Type Fiber Laser, 6.56x13.12 ft (2000×4000 mm)
The SheetCut 2040 Lite is a robust open-type fiber laser system designed for US job shops, OEMs, and fabrication cells needing reliable, high-throughput cutting of thin to medium sheet. With a 3000W fiber source and a large 79x158 in (2000×4000 mm) bed, it delivers the flexibility and speed required for modern part mixes while fitting North American electrical and safety expectations.
Laser Power: 3000W · Bed Size: 79x158 in (2000×4000 mm) · Type: Open Fiber Laser
Key advantages for US buyers
- 3000W fiber laser power for fast, clean cutting of thin to medium sheet metal.
- Large 79x158 in (2000×4000 mm) bed accommodates full-size sheets and nested jobs.
- Autofocus cutting head for consistent quality and minimal manual adjustment.
- Supports direct import and nesting from DXF/STEP files for streamlined programming.
- US electrical package and safety interlocks for compliance and straightforward integration.
- Multiple fiber sources available (IPG, MAX Photonics, Raycus) to suit application and budget.
Key technical specifications
Laser power: 3000W
Efficiently cuts a range of metals, ideal for up to ~10–12 mm carbon steel (process-dependent).
Bed size / working area: 79x158 in (2000×4000 mm)
Handles standard US sheets and large nested jobs, maximizing material utilization.
Machine type: Open-type fiber laser
Easy access for loading and unloading, ideal for high-mix, fast-paced shops.
Cutting head: Autofocus
Maintains precise focus across varying thicknesses for consistent edge quality.
File support: DXF / STEP nesting
Streamlines workflow from CAD to cut, reducing setup and programming time.
Fume extraction: Integrated ports
Supports connection to shop extraction systems for cleaner operation.
Electrical: US package
Configured for North American power and safety standards.
Fiber sources: IPG / MAX Photonics / Raycus
Choose the laser source that best matches your shop’s requirements and budget.
Capabilities & typical applications
This open-type fiber laser is a core asset for standalone cutting cells or as part of a laser–press brake–welding workflow. It excels at high-mix, low-to-medium volume production and rapid prototyping.
- Flat parts: brackets, enclosures, panels, gussets, and frames
- Industries: metal fabrication, contract manufacturing, machinery, HVAC, and general job shops
- Material flexibility for carbon steel up to ~10–12 mm (process-dependent)
- Supports nested jobs for efficient material usage and reduced scrap
- Ideal for shops integrating laser cutting with downstream forming and welding processes
Implementation & support for US shops
We work closely with US job shops and OEMs to ensure smooth installation and integration. From pre-install checks (power, floor space, material flow) to confirming your part mix and thicknesses, we help you get the right fit from day one.
Our team supports you with nesting strategies, basic cut parameter setup, and operator training, so your team is productive quickly and safely.
- Pre-purchase review of materials, thicknesses, and sample parts
- Guidance on fume extraction and shop layout
- Onboarding for programming, nesting, and basic maintenance
Next step: Send us a few sample parts (DXF/STEP/PDF) and we’ll confirm fit, cycle time, and optimal configuration for your workflow.
