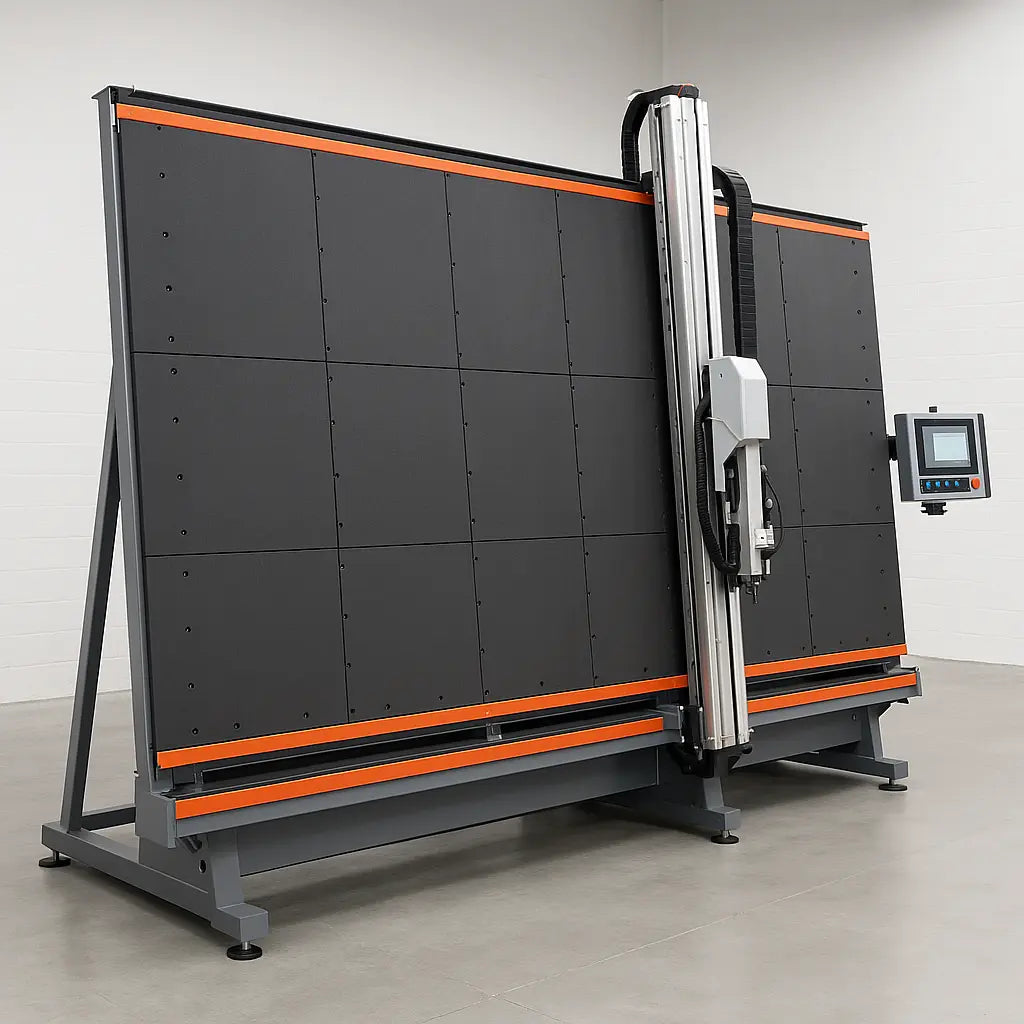

ANCHU GlassCut Vertical 3018 US — CNC Vertical Glass Cutting, 118" x 71" Capacity
The ANCHU GlassCut Vertical 3018 US is a CNC-controlled, automatic vertical glass cutting plotter engineered for North American glass fabrication shops. Designed for full-size glass sheets, it delivers precise, repeatable cuts while minimizing floor space and streamlining digital workflows.
Cutting area: 118" x 71" (3000 x 1800 mm) · Power: 480 V 3-phase · Controller: CNC graphical interface
Key advantages for US buyers
- Vertical format handles full-size glass sheets up to 118" x 71" (3000 x 1800 mm) without requiring large floor space.
- CNC-controlled cutting bridge with servo-driven axes ensures high accuracy and repeatability for demanding architectural glass jobs.
- Automatic sheet positioning, clamping, and programmable stops reduce manual handling and boost throughput.
- Integrated scoring wheel system with programmable pressure adapts to a range of float glass thicknesses used in windows, doors, and facades.
- Graphical CNC interface supports pattern visualization, job list management, and seamless integration with nesting/optimization software.
- Compatible with 480 V 3-phase power; can be adapted to single-phase 240 V environments using phase converters or transformers.
Key technical specifications
Cutting area: 118" x 71" (3000 x 1800 mm)
Accommodates full-size glass sheets commonly used in residential and commercial glazing.
Glass types: Float glass in standard thickness ranges
Suitable for glass thicknesses typical in windows, doors, and facade elements (final range confirmed at order).
Cutting system: CNC-controlled bridge with servo-driven axes
Delivers high accuracy and repeatability for complex patterns and repeat jobs.
Scoring wheel: Integrated, with programmable pressure and path
Optimizes cut quality across different glass thicknesses and patterns.
Automation: Automatic sheet positioning, clamping, and cutting cycles
Reduces manual labor and supports repeatable, high-mix production.
Controller: Graphical CNC interface
Enables pattern visualization, job management, and label printing integration.
Power requirement: 480 V three-phase (other voltages on request)
Can be adapted with ANCHU PowerPhase converters for single-phase 240 V shops.
Air requirement: Compressed air needed
Requires a clean, dry shop environment for optimal performance.
Capabilities & typical applications
This vertical CNC glass cutting machine is ideal for glass shops transitioning from manual table cutting to automated, repeatable CNC processes. It integrates easily into digital production flows, supporting high-mix, low-volume, and repeat batch work.
- Cutting of full-size glass panels for windows, doors, and facade elements
- Residential and light commercial glazing fabrication
- Batch production of custom glass shapes and patterns
- High-mix/low-volume job shops needing quick changeovers and consistent quality
- Shops seeking to improve operator safety and reduce manual handling
Implementation & support for US shops
We work closely with US glass fabricators to ensure a smooth transition to automated vertical cutting. Our team can review your parts, glass thickness ranges, and shop layout to confirm fit and recommend the right configuration before purchase.
We support pre-installation planning (power, compressed air, workflow), initial programming, and operator training to help your team achieve fast, reliable results from day one.
- Pre-install checks for power, air, and shop environment
- Application review for glass types and thicknesses
- Integration with digital job lists and optimization software
- Operator onboarding and basic program setup
Next step: Send us your typical glass part drawings or job list, and we’ll confirm fit, cycle time, and integration details for your shop.
