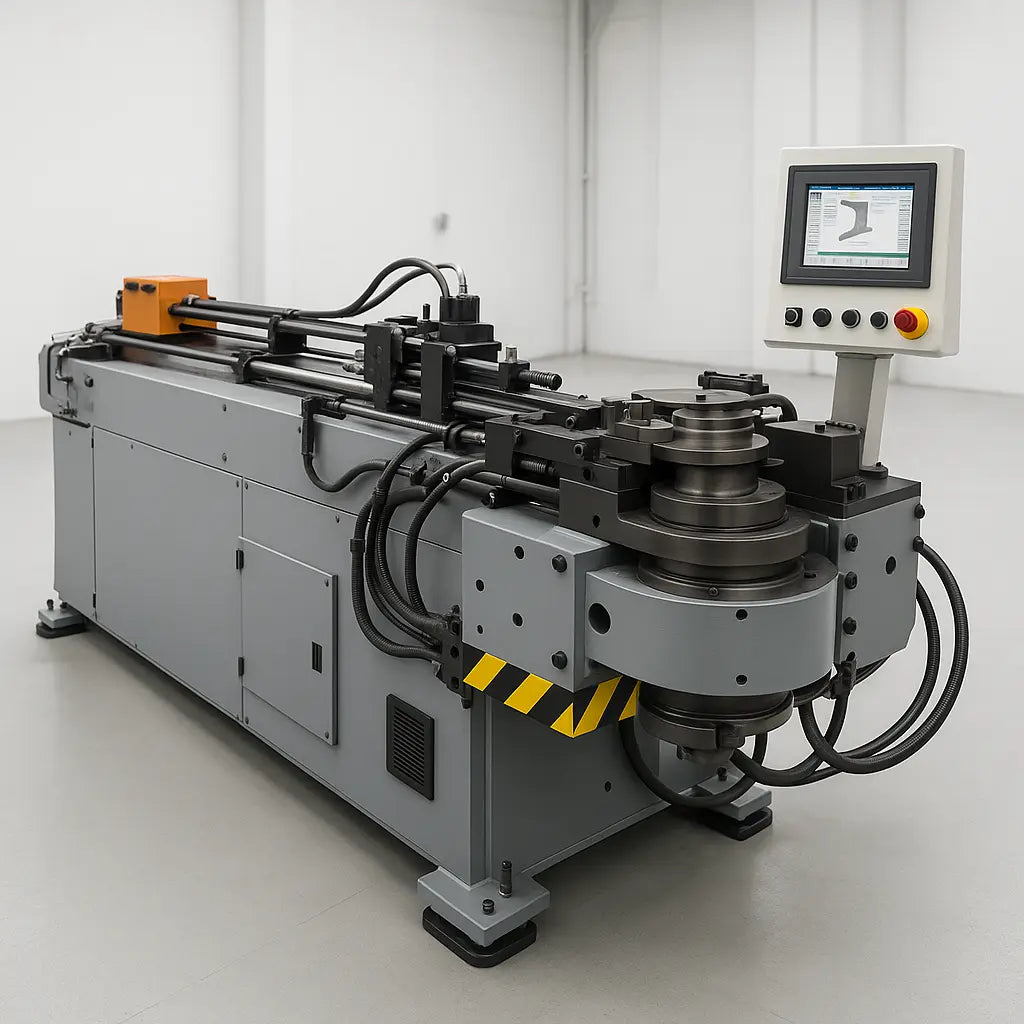

ANCHU BendTube 89CNC US — 89 mm Heavy-Duty CNC Pipe & Tube Bending Machine
The ANCHU BendTube 89CNC US is engineered for North American job shops, OEMs, and fabrication cells needing reliable, repeatable CNC bending of large-diameter and thick-wall tube. Built for demanding structural and heavy-duty applications, it delivers the power and flexibility required for complex parts and high-mix production.
Max Tube OD: 89 mm (3.5") · Axes: Multi-axis CNC (Y, B, Z) · Power: 380–480 V, 3-phase
Key advantages for US buyers
- Handles tube up to 89 mm (3.5") OD for structural, frame, and heavy equipment components.
- Multi-axis CNC (Y, B, Z and more) enables complex, multi-plane bends with high repeatability.
- Hydraulic bending with servo-controlled positioning ensures consistent results on thick-wall materials.
- Advanced CNC control with 3D visualization and CAD/CAM data import streamlines programming and reduces setup time.
- Integration-ready for automated cells, loaders, robots, or measuring systems.
- Robust build and manageable footprint for North American fabrication environments.
Key technical specifications
Maximum tube outside diameter: 89 mm (3.5")
Suitable for large-diameter and thick-wall tube, ideal for heavy-duty structural and frame components.
Axes: Multi-axis CNC (Y, B, Z; additional axes available)
Supports precise positioning and complex geometries for high-mix jobs.
Drive type: Hydraulic bending with servo-controlled programmable axes
Delivers the force required for thick-wall tube, with accurate and repeatable movement.
Control system: Advanced CNC with 3D visualization and bend simulation
Enables efficient setup, program verification, and part accuracy.
Power requirement: Three-phase 380–480 V
High connected load; confirm plant service capacity prior to installation.
Capabilities & typical applications
The BendTube 89CNC US is designed for integration into fabrication cells, standalone tube forming, or as a complement to laser cutting and welding operations.
- Production of structural frames, roll cages, truck body components, and heavy equipment parts
- Fabrication of thick-wall tube and pipe for construction, agriculture, and machinery industries
- High-mix/low-volume bending jobs, prototypes, and repeat production runs
- Complex multi-plane bends for assemblies requiring precise fit and repeatability
Implementation & support for US shops
We support North American customers with pre-installation planning, including power requirements, floor layout, and material flow. Our team can review your parts, materials, and thickness ranges to confirm machine fit before purchase.
We help with programming basics, tooling strategies, and bend sequencing to get your team productive quickly. Integration with upstream and downstream equipment is supported for seamless operation in automated cells.
- Application review and configuration guidance
- Commissioning and training for operators and programmers
- Ongoing support for troubleshooting, upgrades, and process optimization
Next step: Send us your sample parts or drawings, and we’ll confirm fit, cycle time, and recommend the right configuration for your shop.
