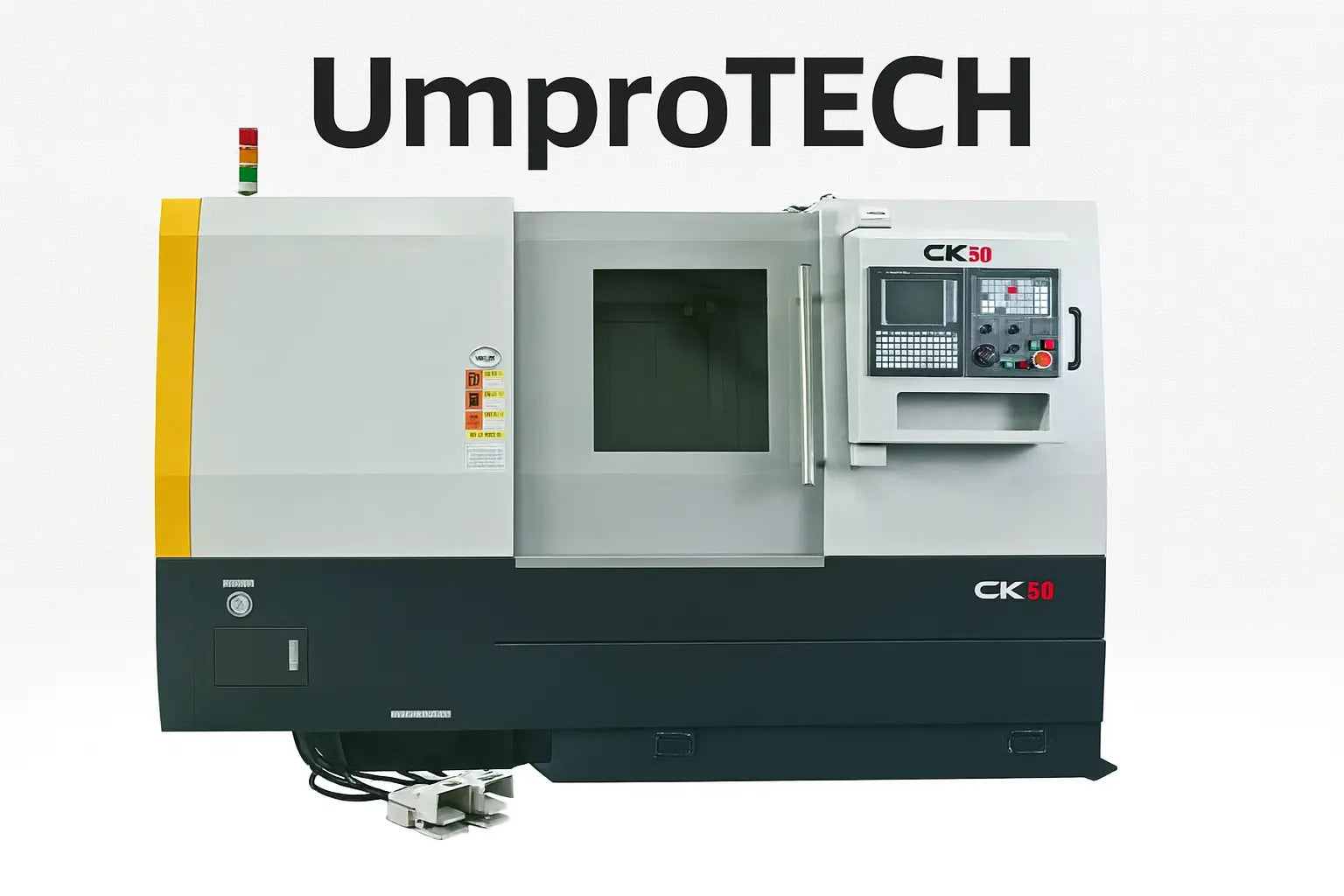

Umprotech CNC Lathe – 20in Swing × 60in Length, 8in Chuck, Fanuc 0i-TF
A compact slant-bed CNC turning center engineered for US job shops and OEMs needing both long-shaft and production chucking capability. Handles 20in swing, 60in between centers, and features an 8in hydraulic chuck and 2.5in spindle bore. Powered by a 20 HP vector spindle and Fanuc 0i-TF Plus control, this lathe is built for throughput, flexibility, and reliable uptime on the shop floor.
Swing: 20in · Between centers: 60in · Chuck: 8in hydraulic · Spindle bore: 2.5in · Spindle power: 20 HP · Control: Fanuc 0i-TF Plus
Key advantages for US buyers
- 20in swing and 60in between centers support long-shaft work, flanges, and bar stock in a compact footprint.
- 8in hydraulic chuck and 2.5in spindle bore handle common bar and tube sizes for both job-shop and production runs.
- 20 HP vector spindle delivers the torque and rpm range for steels, stainless, and alloy materials—ideal for roughing and finishing.
- 12-station turret supports a full suite of turning, boring, threading, and grooving tools for part families and quick changeovers.
- Fanuc 0i-TF Plus control with Manual Guide i enables conversational programming and seamless integration into shop networks; Siemens 828D ShopTurn available.
- Automation-ready layout with options for chip conveyor, programmable tailstock, parts catcher, and bar feeder interface to scale from standalone to semi-automatic cells.
Key technical specifications
Swing over bed: 20in
Accommodates a wide range of shaft diameters, flanges, and general-purpose turned parts.
Distance between centers: 60in
Supports long-shaft work, hydraulic and pneumatic components, and applications requiring extra reach.
Chuck size: 8in hydraulic chuck
Flexible workholding for bar, tube, and chucking jobs common in contract manufacturing.
Spindle bore: 2.5in
Feeds standard bar and tube stock directly through the spindle for efficient setup and throughput.
Spindle power: 20 HP vector spindle
Balances low-speed torque for roughing with smooth, high-speed finishing across steels and alloys.
Turret: 12-station
Supports a full range of turning, boring, threading, and grooving tools for high-mix production.
Control: Fanuc 0i-TF Plus with Manual Guide i (Siemens 828D ShopTurn optional)
Conversational programming, DNC, and Ethernet connectivity for easy integration and fast setups.
Capabilities & typical applications
This slant-bed CNC turning center is designed for flexible deployment—standalone, in a forming cell, or as part of a production line with saws, lasers, or welding fixtures. Its capacity and envelope make it a fit for high-mix/low-volume shops and repeat production alike.
- Bar and chucking work for shafts up to 60in in length
- Flanges, bushings, fittings, and hydraulic/pneumatic components
- OEM and contract manufacturing for machinery, metal fabrication, and general job shops
- Supports both prototype and repeat production of small- to mid-size turned parts
- Cell integration with bar feeders, conveyors, and downstream processes
Implementation & support for US shops
We work closely with US job shops and OEMs to ensure smooth installation and ramp-up. Our team reviews your parts, material types, and process flow to confirm fit before purchase. We assist with pre-install checks—power, floor space, material flow, and safety compliance—to minimize downtime.
- Application review: Send us your part drawings or sample jobs for cycle time and fit analysis
- Tooling and programming support: Guidance on turret tooling, workholding, and conversational programming
- Training and handover: On-site or remote support to get your team productive quickly
Next step: Contact us with your sample parts (DXF/STEP/PDF) or current process details. We'll confirm fit, recommend configuration, and provide a tailored quote.
