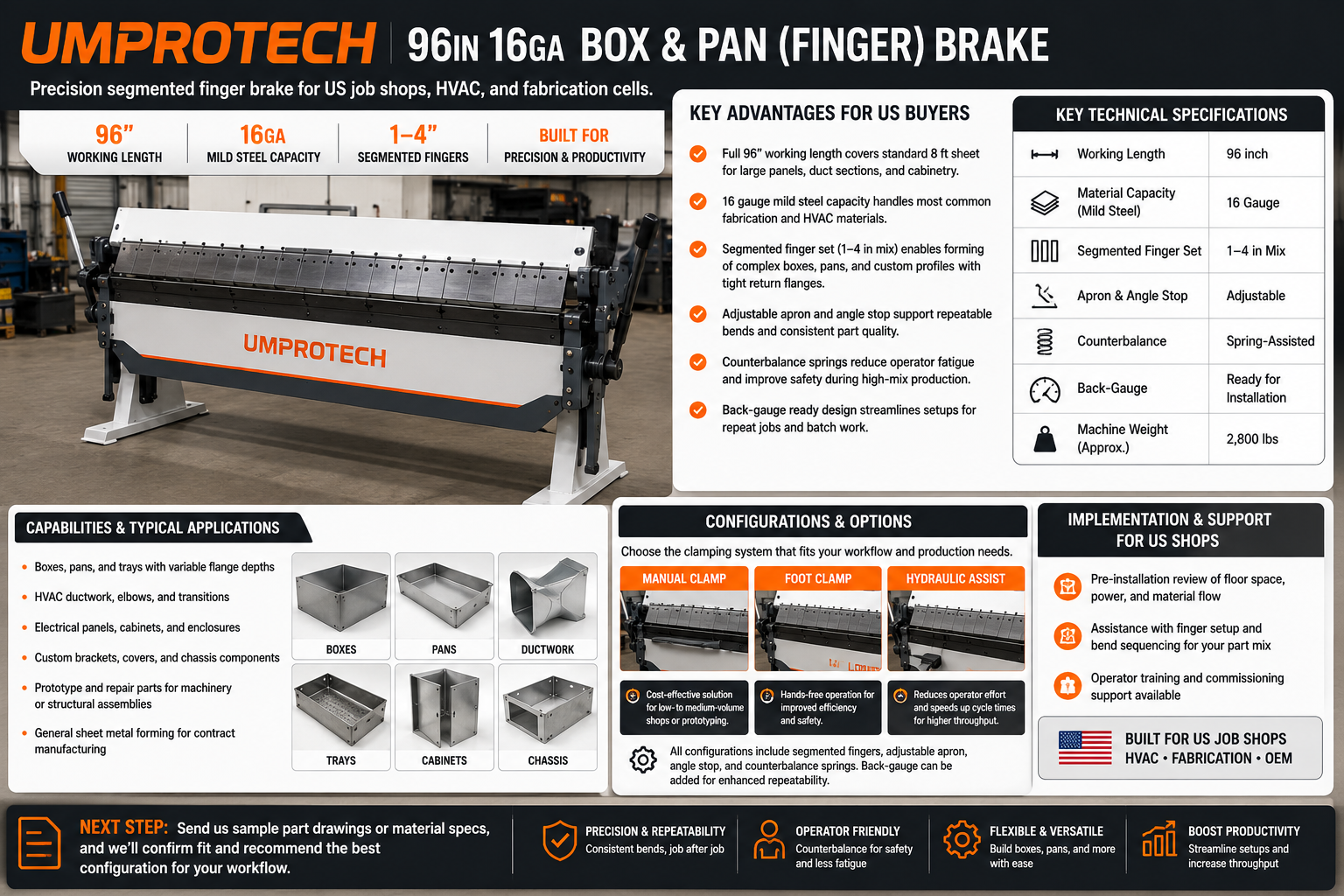

Umprotech 96in 16ga Box & Pan (Finger) Brake
Precision segmented finger brake for US job shops, HVAC, and fabrication cells. Designed for forming complex boxes, pans, and ductwork in mild steel up to 16 gauge across a full 96 inch working length.
Working length: 96 inch · Capacity: 16 gauge mild steel · Finger set: Segmented 1–4 in
Key advantages for US buyers
- Full 96 inch working length covers standard 8 ft sheet for large panels, duct sections, and cabinetry.
- 16 gauge mild steel capacity handles most common fabrication and HVAC materials; suitable for lighter gauges in stainless.
- Segmented finger set (1–4 in mix) enables forming of complex boxes, pans, and custom profiles with tight return flanges.
- Adjustable apron and angle stop support repeatable bends and consistent part quality.
- Counterbalance springs reduce operator fatigue and improve safety during high-mix production.
- Back-gauge ready design streamlines setups for repeat jobs and batch work.
Key technical specifications
Working length: 96 inch
Accommodates full-size 8 ft sheets for HVAC ductwork, panels, and enclosures.
Material capacity: 16 gauge mild steel
Supports a wide range of fabrication jobs in mild steel; capacity is less for stainless steel.
Segmented finger set: 1–4 inch mix
Allows for flexible setups to form boxes, pans, and other shapes with variable flange widths.
Apron & angle stop: Adjustable
Enables precise, repeatable bends and consistent angles across production runs.
Counterbalance: Spring-assisted
Improves operator ergonomics and reduces effort during forming.
Back-gauge: Ready for installation
Supports accurate positioning for repeatable part production.
Capabilities & typical applications
This box & pan brake is a core forming tool for job shops, HVAC contractors, and OEMs needing flexibility for short-run, prototype, or custom sheet metal parts. It fits well in standalone forming cells or as a complement to laser cutting and punching operations.
- Boxes, pans, and trays with variable flange depths
- HVAC ductwork, elbows, and transitions
- Electrical panels, cabinets, and enclosures
- Custom brackets, covers, and chassis components
- Prototype and repair parts for machinery or structural assemblies
- General sheet metal forming for contract manufacturing
Implementation & support for US shops
We work closely with US job shops, HVAC contractors, and OEMs to ensure a smooth implementation. Our team can review your parts, materials, and thickness requirements to confirm fit before purchase. We provide guidance on setup, finger arrangements, and forming strategies to maximize productivity from day one.
- Pre-installation review of floor space, power, and material flow
- Assistance with finger setup and bend sequencing for your part mix
- Operator training and commissioning support available
Next step: Send us sample part drawings or material specs, and we’ll confirm fit and recommend the best configuration for your workflow.
