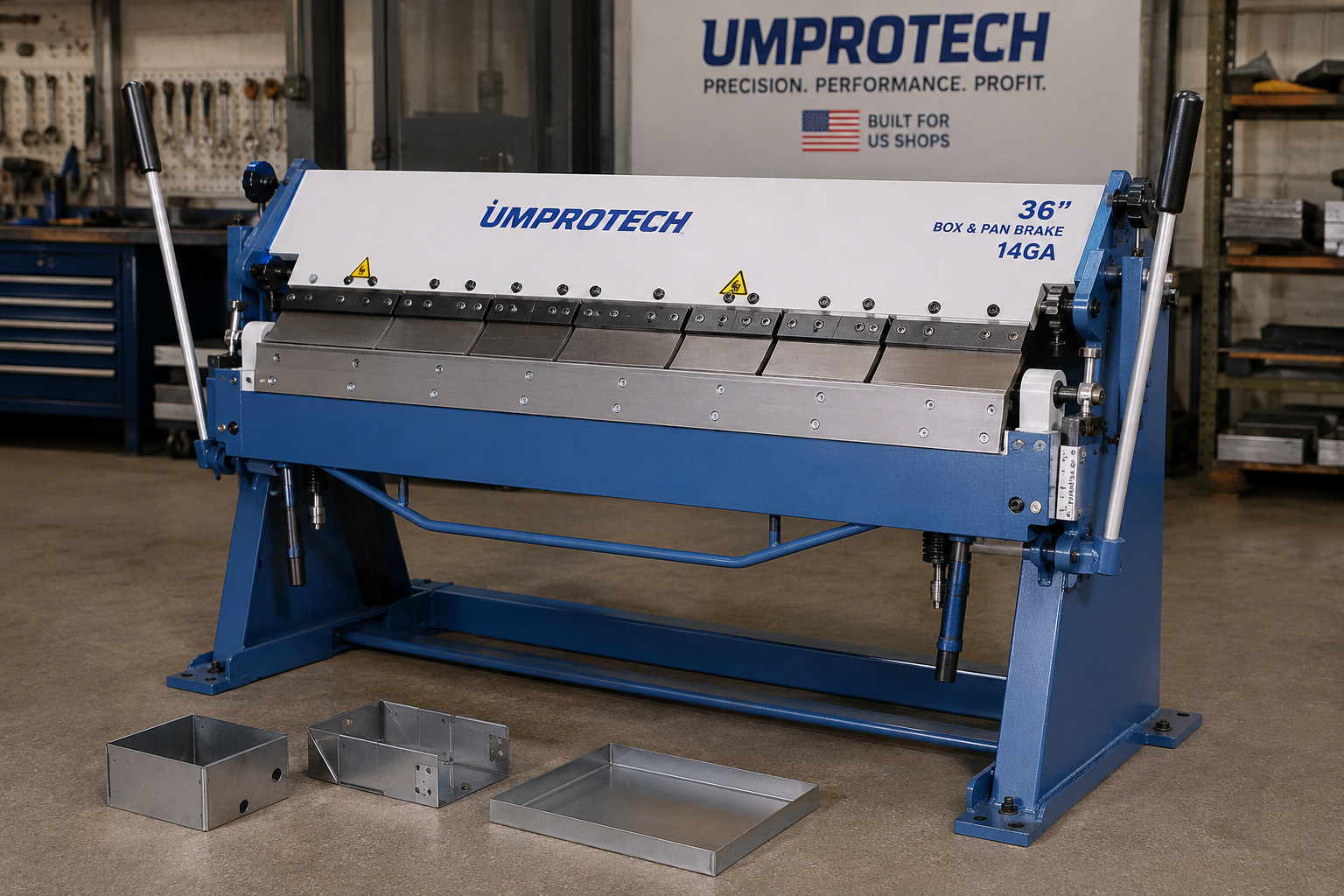

    Umprotech Box & Pan Brake 36in 14ga Segmented Finger Brake AVAILABLE

    Box & Pan Brake — USA Warranty & Support
    $4,200.00 USD
    $4,200.00 USD
    Sale Sold out
    Shipping calculated at checkout.

    Low stock: 6 left

    Clamping
    View full details

    Umprotech 36in 14ga Box & Pan Brake – Segmented Finger Brake

    Precision box and pan brake engineered for US job shops, HVAC, and prototyping. 36 inch working length and 14 gauge mild steel capacity, with segmented fingers for maximum flexibility.

    Working length: 36 in · Capacity: 14 gauge mild steel · Finger set: 1–4 in segments

    Key advantages for US buyers

    • 36 inch working length accommodates common ductwork, panels, and box sizes.
    • 14 gauge mild steel capacity covers most shop requirements for forming and prototyping.
    • Segmented finger set (1–4 in mix) enables forming of custom boxes, pans, and enclosures with variable depths and flanges.
    • Adjustable apron and angle stop for repeatable bends and consistent part quality.
    • Counterbalance springs reduce operator fatigue during manual operation.
    • Back-gauge ready for improved accuracy on repeat jobs and production runs.

    Key technical specifications

    Working length: 36 in

    Supports fabrication of small to medium panels, boxes, and ductwork components up to 3 feet wide.

    Maximum capacity: 14 gauge mild steel

    Handles standard sheet metal thicknesses for HVAC, enclosures, and general fabrication. (Capacity is less for stainless steel.)

    Segmented fingers: 1–4 in mix

    Allows for forming complex shapes, variable depth boxes, and tight flanges.

    Features: Adjustable apron, angle stop, counterbalance springs

    Improves repeatability, ergonomics, and ease of use for operators.

    Back-gauge ready: Yes

    Supports installation of a back-gauge for higher accuracy and productivity on repeat parts.

    Capabilities & typical applications

    This box and pan brake is a core tool in fabrication shops, HVAC contractors, and prototyping environments. It excels at forming custom boxes, pans, trays, and ductwork components in mild steel up to 14 gauge.

    • Electrical enclosures, control boxes, and junction boxes
    • HVAC ductwork and fittings
    • Prototype panels, trays, and custom brackets
    • Small cabinet parts and frames
    • General job shop and contract fabrication work
    • Short-run and high-mix part production

    Configurations & options

    Configure the Umprotech 36in 14ga box & pan brake to fit your workflow and operator needs. Choose from multiple clamping systems to match your production style.

    • Manual Clamp: Reliable and cost-effective for low to medium volume work.
    • Foot Clamp: Hands-free clamping for improved productivity and part handling.
    • Hydraulic Assist: Reduces operator effort and increases throughput for higher volume shops.
    • All variants include segmented finger set, adjustable apron, angle stop, and counterbalance springs.
    • Back-gauge can be added for enhanced repeatability.

    Implementation & support for US shops

    We work closely with US fabricators, HVAC contractors, and OEMs to ensure a smooth integration of your new box & pan brake. Our team can review your part drawings and material specs to confirm fit and recommend the right configuration for your needs.

    We assist with setup, basic bend programs, finger arrangements, and operator training, so your team is productive from day one.

    • Guidance on floor space, material flow, and safety considerations
    • Tooling and finger setup recommendations for your part mix
    • Support for back-gauge integration and workflow optimization

    Next step: Send us a sample part drawing or material spec, and we’ll confirm the best configuration for your application.
