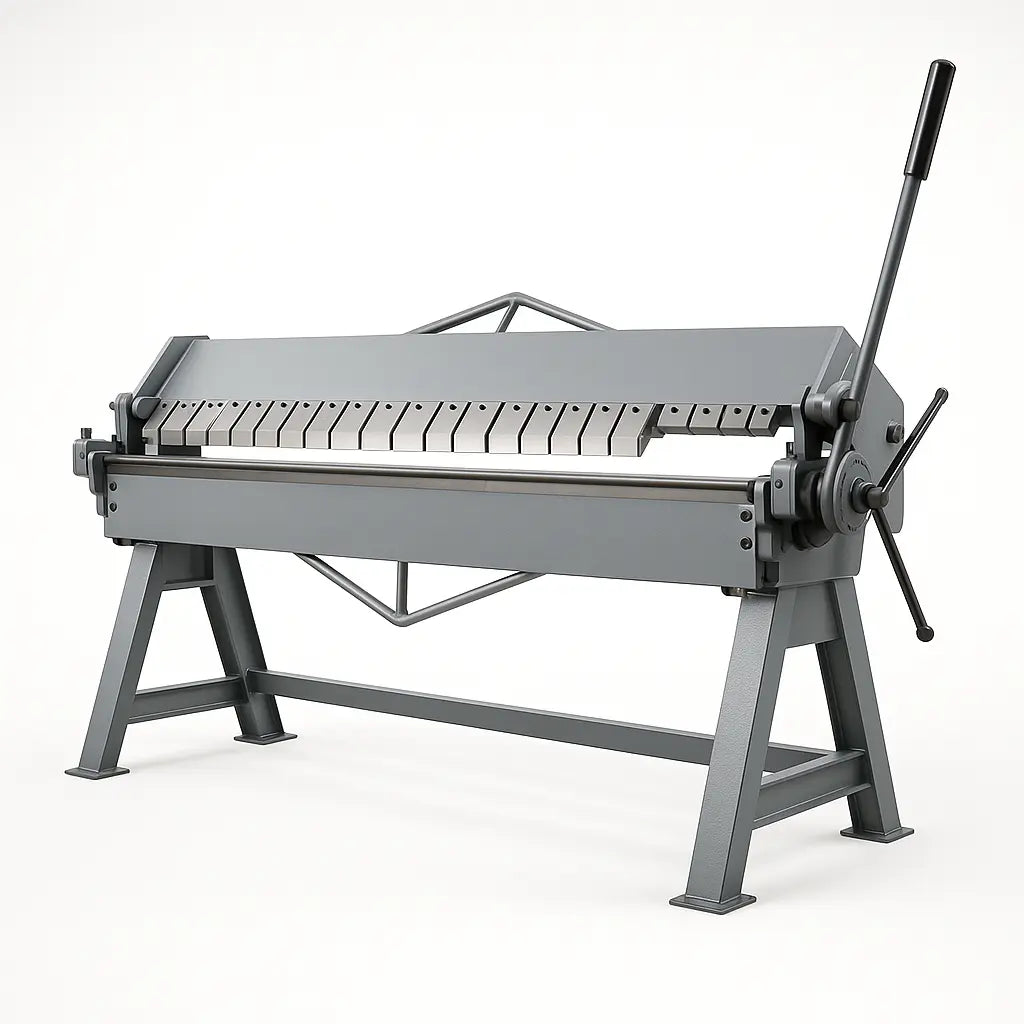

Umprotech 120in 14ga Box & Pan Brake – Segmented Finger Brake
A robust 120 inch box and pan brake engineered for US metal fabrication shops handling 14 gauge mild steel. Designed for versatility with segmented fingers and multiple clamping options, it's ideal for HVAC, ductwork, cabinetry, and prototyping environments.
Working length: 120 in · Capacity: 14 ga mild steel · Clamping: Manual, Foot, or Hydraulic Assist
Key advantages for US buyers
- Full 120 inch working length accommodates large panels, duct sections, and enclosures.
- Rated for 14 gauge mild steel, supporting a wide range of shop fabrication needs.
- Segmented finger set (1–4 in mix) enables box, pan, and custom profile forming.
- Adjustable apron and angle stop for precise, repeatable bends and fast setups.
- Available with manual, foot, or hydraulic assist clamping to fit workflow and budget.
- Back-gauge ready for improved part consistency and operator efficiency.

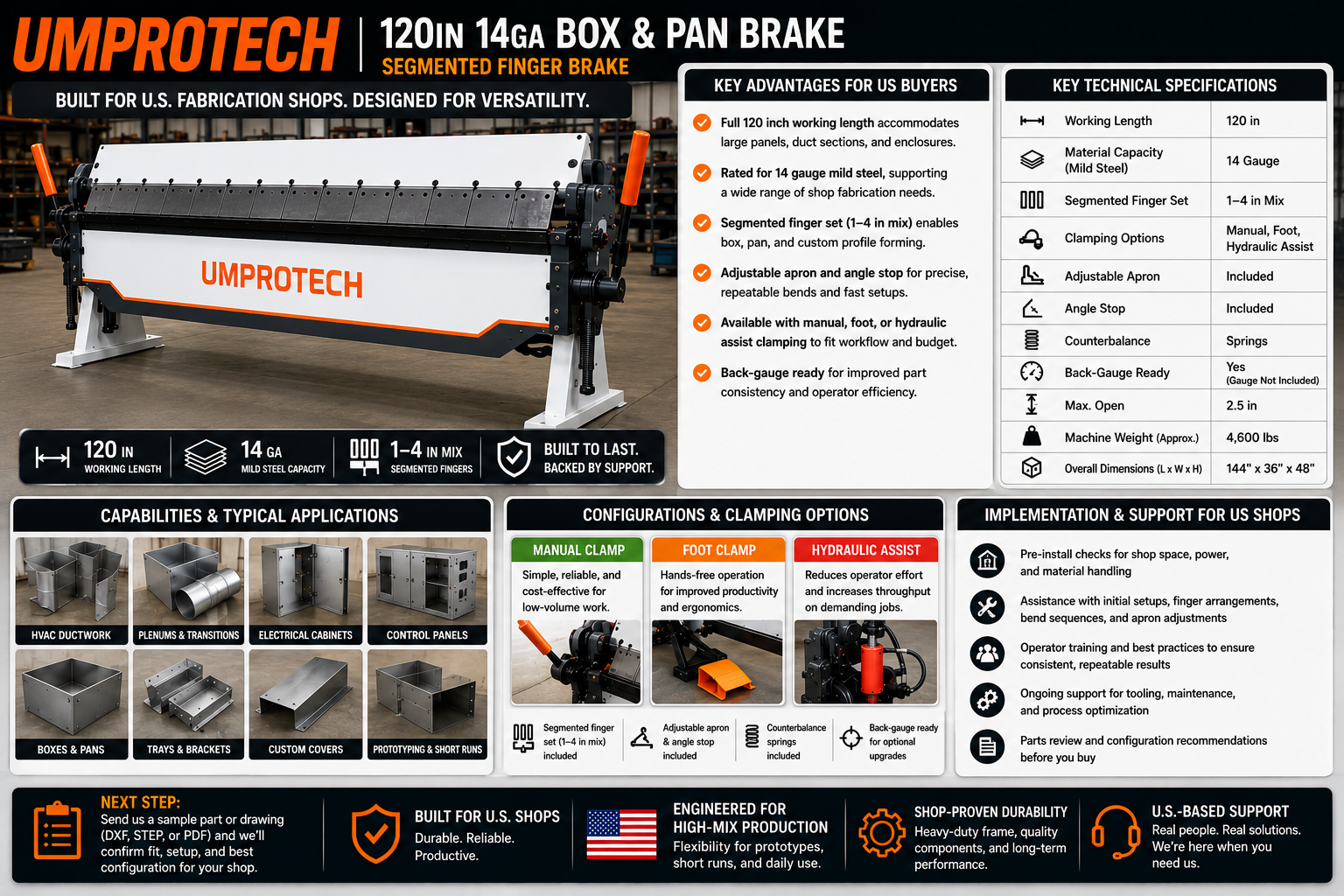

Key technical specifications
Working length: 120 in
Handles full-length ductwork, cabinetry, and large panels in a single setup.
Material capacity: 14 gauge mild steel
Supports most standard fabrication materials. For stainless, capacity is reduced.
Segmented finger set: 1–4 in mix
Form tight boxes, pans, and custom profiles with flexible tooling arrangements.
Clamping options: Manual, Foot, Hydraulic Assist
Select the right clamping method for your throughput and operator preference.
Features: Adjustable apron, angle stop, counterbalance springs, back-gauge ready
Streamlines setup and ensures consistent results across production runs.
Capabilities & typical applications
This box & pan brake is a core forming tool for shops building panels, boxes, and custom enclosures. It integrates well with laser or plasma cut blanks, saw-cut parts, and welding prep workflows.
- HVAC ductwork, plenums, and transitions
- Electrical cabinets, control panels, and junction boxes
- Prototyping and short-run production for job shops
- General fabrication: trays, brackets, covers, and structural pans
- Metal forming for machinery, enclosures, and contract manufacturing
Implementation & support for US shops
We work closely with US fabricators to ensure smooth installation and integration into your workflow. Our team can review your parts and forming requirements to confirm fit before purchase.
We provide guidance on finger setup, bend sequences, and apron adjustments to help your team achieve consistent results from day one. Training and after-sale support are available to maximize your ROI.
- Pre-install checks for shop space, power, and material handling
- Assistance with initial setups and best practices for box/pan forming
- Ongoing support for tooling, maintenance, and process optimization
Next step: Send a sample part or drawing and we’ll confirm fit, setup, and best configuration for your shop.
