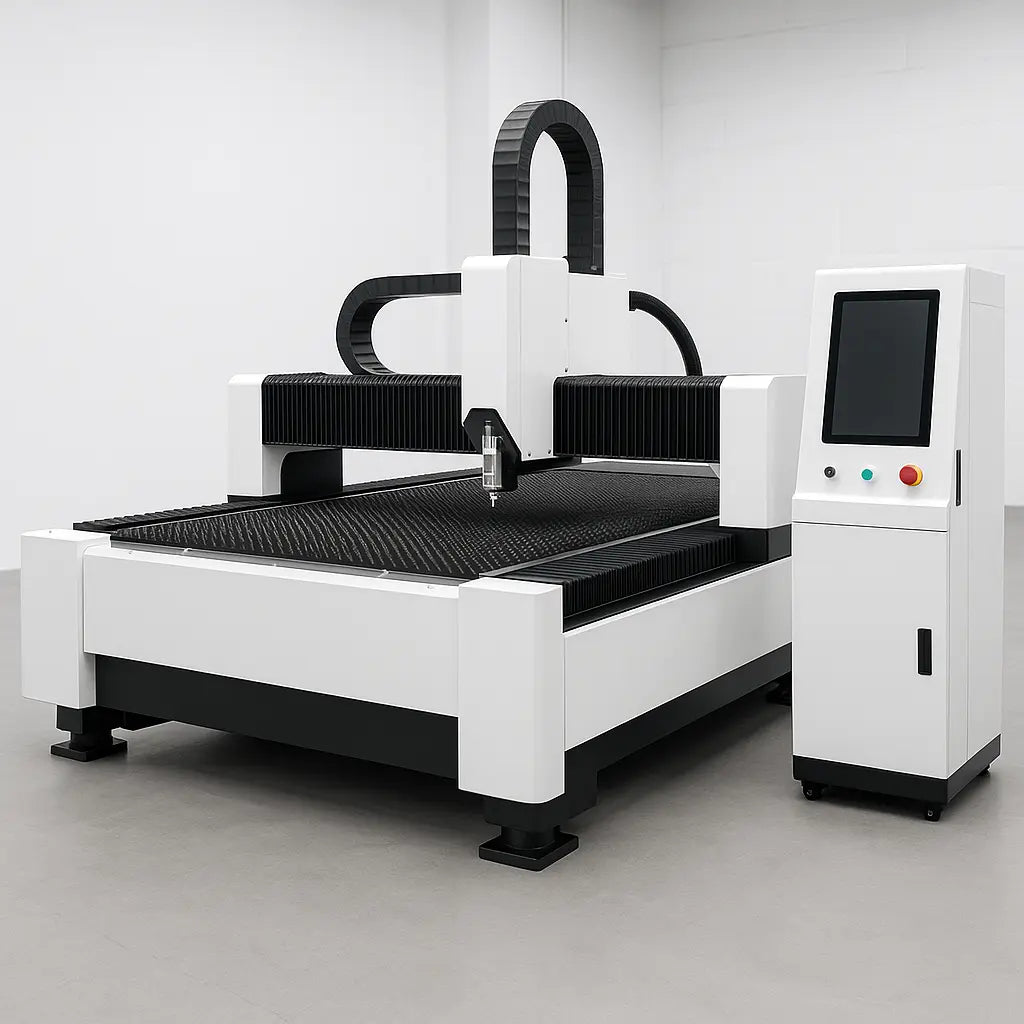

UmproTech 1530S — Open Type Fiber Laser, 1530 × 3050 mm, Raycus Source
The UmproTech 1530S is a robust open-frame fiber laser cutting system engineered for high-uptime sheet metal processing. Built on a heavy welded chassis with an aviation-grade aluminum gantry, it’s designed for US job shops, OEMs, and fabrication cells needing reliable 5' × 10' cutting performance.
Choose from Raycus laser sources ranging from 1500 W up to 6000 W to match your throughput and material mix. The open architecture ensures easy loading, fast changeovers, and direct integration with upstream and downstream operations.
Working area: 1530 × 3050 mm (60" × 120") · Laser power: 1500 / 2000 / 3000 / 6000 W · Positioning accuracy: ±0.03 mm
Key advantages for US buyers
- Full 5' × 10' (1530 × 3050 mm) working area for standard US sheet sizes and nested parts.
- Raycus fiber laser options from 1500 W to 6000 W—tailor power to your material thickness and production needs.
- Open-frame design for fast sheet loading, easy access, and flexible workflow integration.
- ±0.03 mm positioning accuracy and ±0.02 mm repeatability—consistent quality for tight-tolerance parts.
- Autofocus BOCI or RayTools cutting head for rapid, precise piercing and contouring across a range of metals.
- Industrial-grade build: heavy welded frame, aviation aluminum gantry, LAAK linear guides, YYC helical rack & pinion, and TBI ball screw on Z-axis.
- Supports common CAD/CAM formats—seamless import from your design workflow.
Key technical specifications
Working area: 1530 × 3050 mm (60" × 120")
Handles full-size US sheets—ideal for nested jobs, large panels, and batch production.
Raycus laser power: 1500 / 2000 / 3000 / 6000 W
Choose the right wattage for your typical material thickness and throughput goals.
Cutting head: Autofocus BOCI / RayTools
Automatic focus adjustment for fast setup and optimal edge quality.
Positioning accuracy: ±0.03 mm
Repeatability: ±0.02 mm—reliable for tight-tolerance production runs.
Max cutting speed: up to 30 m/min
Rapid traverse: up to 100 m/min—minimize non-cutting time and boost throughput.
Mechanical system: LAAK square linear guides, YYC helical rack & pinion, TBI ball screw (Z-axis)
Delivers smooth motion and long-term reliability in demanding shop environments.
Chiller & lubrication: S&A industrial chiller, automatic lubrication
Ensures stable operation and minimal maintenance downtime.
File formats supported: CAD, CorelDRAW, PLT, AI, DXF
Import jobs directly from your design and nesting software.
Capabilities & typical applications
This 1530S open-type fiber laser is a core asset for sheet metal job shops, OEMs, and contract manufacturers. Its 5' × 10' bed and flexible power options make it ideal as a standalone laser cell or as part of a larger fabrication line with press brakes, welders, or saws.
- Cutting mild steel, stainless, and aluminum sheets up to full 60" × 120" dimensions (thickness per laser power).
- Producing brackets, panels, enclosures, frames, HVAC components, signage, and custom profiles.
- Serving industries such as metal fabrication, machinery, contract manufacturing, and general job shops.
- High-mix/low-volume runs, prototypes, and repeat production with fast changeovers.
- Integrates with downstream forming, bending, and welding operations for complete part flow.
Implementation & support for US shops
We work closely with US job shops and OEMs to ensure your 1530S installation is seamless—from pre-install checks (power, floor, access) to confirming your parts and material thicknesses are a fit for your chosen laser power.
Our team can assist with basic programming, nesting strategies, and operator training so your team is productive quickly. We help you integrate the 1530S into your existing workflow—whether as a standalone cell or part of a larger fabrication line.
- Pre-purchase review of your parts, drawings, and material specs.
- Guidance on best practices for maintenance, safety, and uptime.
- Training and handover to get your operators up to speed fast.
Next step: Send us sample parts or drawings (DXF/STEP/PDF) and we’ll confirm fit, cycle time, and configuration for your application.
