Description

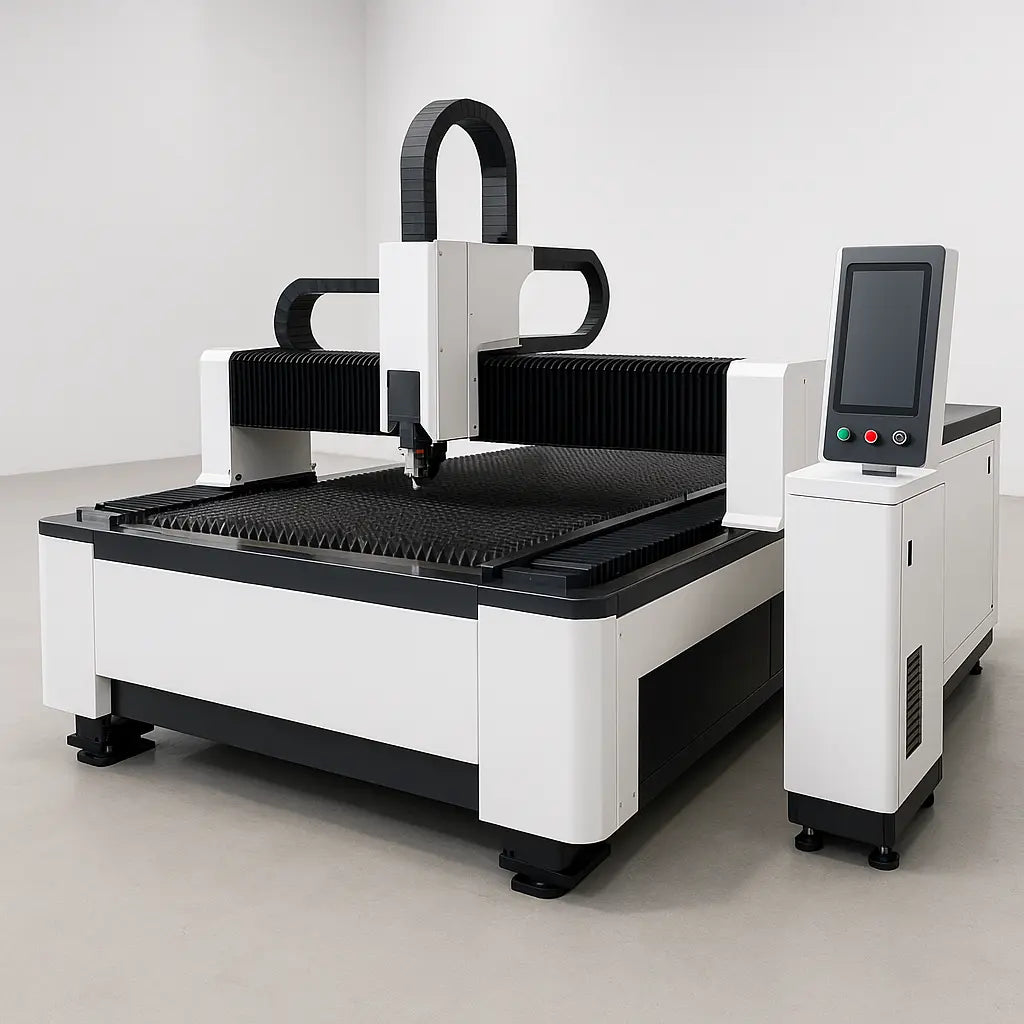

UmproTech 1530B Open Type Fiber Laser – 1530×3050 mm, MAXphotonics 1.5–6 kW
The UmproTech 1530B is a production-class open type fiber laser designed for 60" × 120" (5' × 10') sheet metal. Built for US job shops, OEMs, and fabrication cells needing reliable, high-speed cutting with a low cost of ownership.
Working area: 1530 × 3050 mm (60" × 120") · Laser power: 1500 / 2000 / 3000 / 6000 W · Positioning accuracy: ±0.03 mm
Key advantages for US buyers
- Full 1530 × 3050 mm (60" × 120") working area fits standard US sheet sizes for efficient nesting and minimal scrap.
- Choice of MAXphotonics fiber laser sources: 1500, 2000, 3000, or 6000 W to match your material thickness and throughput needs.
- UmproTech CH3000 autofocus cutting head delivers consistent edge quality and fast setup for material changes.
- German GARRETSON helical rack & pinion drives on X/Y axes and LAPPINGS 25 mm linear guides ensure smooth, precise motion.
- Positioning accuracy of ±0.03 mm and repeatability of ±0.02 mm support tight-tolerance work and repeat orders.
- Rapid traverse up to 100 m/min and cutting speeds up to 30 m/min boost productivity for high-mix or repeat jobs.
- All-steel welded frame with stress relief and aviation-grade aluminum gantry for long-term accuracy and uptime.
Key technical specifications
Working area: 1530 × 3050 mm (60" × 120")
Handles full 5' × 10' sheets for efficient part nesting and reduced handling.
Laser source: MAXphotonics fiber, 1500 / 2000 / 3000 / 6000 W
Choose the right power for your mix of steel, stainless, or aluminum thicknesses.
Cutting head: UmproTech CH3000 autofocus
Automatic focus adjustment for reliable piercing and clean edges across materials.
Motion system: GARRETSON helical rack & pinion (X/Y), LAPPINGS 25 mm linear guides
Delivers smooth, accurate movement for tight part tolerances.
Positioning accuracy: ±0.03 mm
Supports precision cutting for close-tolerance parts and assemblies.
Repeatability: ±0.02 mm
Ensures consistent part quality across production runs.
Max cutting speed: 30 m/min
Efficient for high-mix or repeat production jobs.
Rapid traverse: 100 m/min
Minimizes non-cutting time for faster cycle times.
Frame & gantry: All-steel welded frame, stress-relieved; aviation-grade aluminum gantry
Engineered for rigidity, long-term accuracy, and vibration control.
Auxiliary systems: Industrial chiller, dust and fume extraction, centralized lubrication
Designed for reliable operation and low maintenance in production environments.
Capabilities & typical applications
This 1530B open type fiber laser is ideal as a primary cutting cell or as a complement to press brakes, welding stations, and finishing lines. Its 5' × 10' working area and selectable power levels fit a wide range of US fabrication workflows.
- Flat parts: brackets, panels, enclosures, frames, gussets, signage
- Industries: metal fabrication, job shops, OEMs, contract manufacturing, HVAC, machinery builders
- Supports high-mix/low-volume, prototypes, and repeat production runs
- Integrates well with downstream forming, bending, and welding processes
Implementation & support for US shops
We work closely with US fabricators and OEMs to ensure a smooth installation and fast ramp-up. Our team reviews your power, floor space, and material flow requirements before delivery.
We provide operator training, basic programming support, and guidance on cutting parameters and nesting strategies. Ongoing US-based service and support are available for all installations.
- Pre-install checks for power, layout, and access
- Sample part review to confirm fit and cycle time
- On-site training and commissioning
Next step: Send us a few sample parts (DXF/STEP/PDF) and we’ll confirm fit, cycle time, and the right configuration for your shop.
