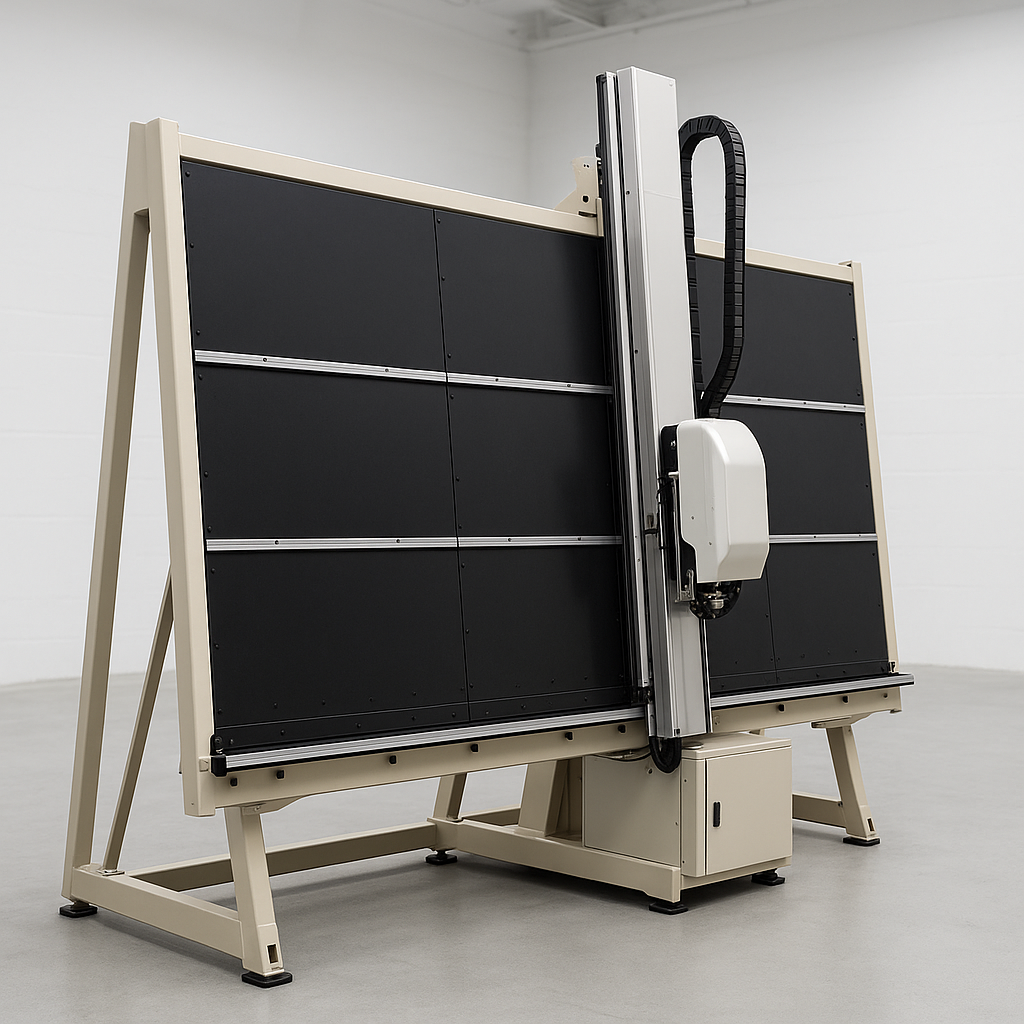

ANCHU GlassCut Vertical 3724 US – 145" x 95" CNC Vertical Glass Cutting Plotter
The ANCHU GlassCut Vertical 3724 US is a CNC-controlled, automatic vertical glass cutting machine engineered for North American glass fabrication shops seeking high accuracy, space efficiency, and seamless digital integration. Designed for processing full-size glass sheets, this system brings repeatability and productivity to window, door, and facade glass cutting workflows.
Cutting area: 145" x 95" (3700 x 2400 mm) · Power: 480 V 3-phase · Operation: CNC automatic vertical
Key advantages for US buyers
- Processes full-size glass sheets up to 145" x 95" (3700 x 2400 mm) in a vertical format, saving valuable shop floor space.
- CNC-controlled cutting bridge with servo-driven axes ensures high accuracy and repeatability for architectural glass jobs.
- Automatic sheet positioning, clamping, and cutting cycles reduce manual handling and operator fatigue.
- Integrated scoring wheel system with programmable cutting pressure adapts to a variety of float glass thicknesses.
- Advanced nesting, graphical job management, and label printing streamline workflow and reduce waste.
- 480 V three-phase power standard, with phase converter options for shops with only 240 V single-phase available.
Key technical specifications
Cutting area: 145" x 95" (3700 x 2400 mm)
Handles full-size stock sheets commonly used in window, door, and facade glass fabrication.
Cutting method: Vertical CNC plotter with servo-driven axes
Delivers precise, repeatable cuts with automated path control.
Glass types: Float glass (thickness range confirmed at order)
Suitable for standard architectural glass applications; consult for specialty glass compatibility.
Controller interface: Graphical CNC with pattern visualization and job list management
Supports direct import of optimization/nesting programs for efficient batch cutting.
Automation: Automatic sheet positioning, clamping, and label printing
Reduces manual intervention and integrates with IG line management systems.
Power: 480 V three-phase (other voltages on request)
Compatible with ANCHU PowerPhase converters and transformers for 240 V single-phase shops.
Air & environment: Requires compressed air and a clean, dry shop environment
Standard utilities for glass fabrication facilities.
Capabilities & typical applications
This vertical CNC glass cutting machine is ideal as a core production tool in glass fabrication plants, or as an upgrade from manual table cutting to automated, repeatable CNC workflows. Its vertical format maximizes floor space and streamlines handling for full-size sheets.
- Cutting of float glass for windows, doors, curtain walls, and facade elements
- Batch processing of architectural glass panels and custom shapes
- Integration into IG line and digital shop management systems
- High-mix/low-volume production, repeat orders, and job shop environments
- Support for nesting and label printing for efficient downstream processing
Implementation & support for US shops
We work closely with US glass fabrication shops to ensure a smooth transition to automated CNC cutting. Our team assists with site preparation, power and air requirements, and workflow planning to maximize uptime and productivity from day one.
- Pre-install review of power, compressed air, and floor space
- Guidance on part nesting, label setup, and digital integration
- Training for operators on CNC interface, job management, and maintenance
Next step: Send us your typical glass part drawings or nesting files, and we’ll confirm fit, cycle time, and integration details for your shop.
