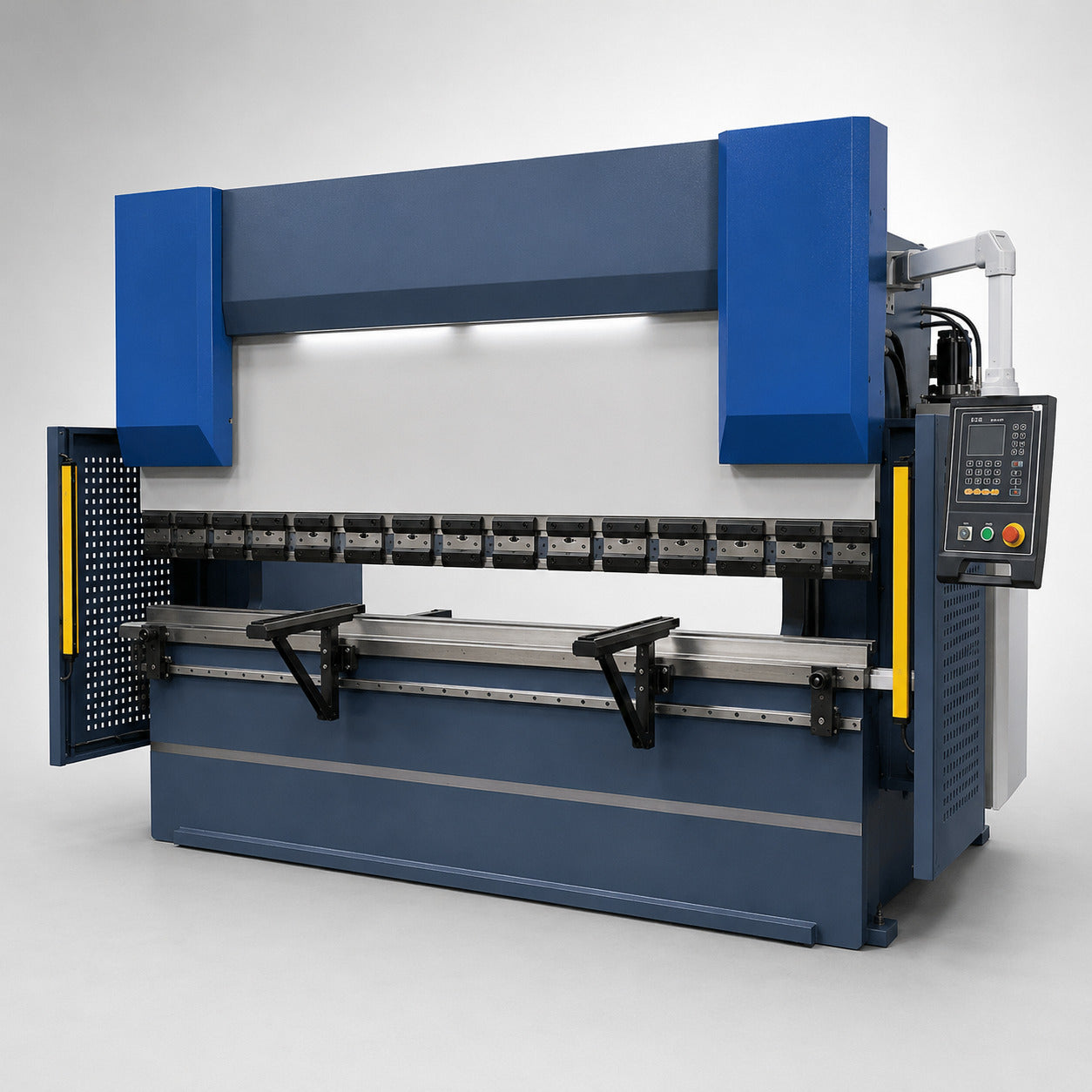

8 ft 100 Ton Press Brake – E22 Controller
A robust 100 ton, 8 ft press brake designed for US job shops, OEMs, and fabrication cells seeking reliable forming capacity, compact footprint, and straightforward NC control. Built for high-mix bending and consistent throughput in demanding environments.
Capacity: 100 ton · Bending length: 8 ft · Controller: E22 NC, 2-axis
Key advantages for US buyers
- 100 ton bending force handles a wide range of mild steel, stainless, and aluminum part requirements.
- 8 ft (2438 mm) bed length supports panels, cabinets, frames, and typical job shop parts.
- E22 NC controller with 2-axis (Y + X) control for efficient setups and repeatable results.
- European/Promecam tooling system for fast tool changes and compatibility with common punches and dies.
- Multiple safety options: light curtain or laser guarding, CE compliant, with foot pedal operation.
- Available with front support arms, crowning, quick-clamp, and segmented tooling to suit your workflow.
Key technical specifications
Bending force: 100 US tons (≈900 kN)
Suitable for forming a wide range of sheet metal thicknesses in steel, stainless, and aluminum.
Bending length: 8 ft (2438 mm)
Accommodates most panel, bracket, and chassis sizes found in fabrication and OEM work.
Controller: E22 NC, 2-axis (Y + X)
Angle programming, backgauge retract, and tool compensation for repeatable bends.
Stroke (Y-axis): 6.3 in (160 mm)
Ample stroke for deep forms and box work.
Open height: 15.7 in (400 mm)
Allows for tall tools and higher part profiles.
Throat depth: 9.8 in (250 mm)
Enables forming of deeper parts and profiles.
Distance between frames: 80–84 in (2030–2130 mm)
Supports a broad working area for larger blanks.
Speeds: Approach 150–220 mm/s; bend 10–20 mm/s; return 120–200 mm/s
Balanced for safety and productivity in production environments.
Motor power: 7.5 HP (5.5 kW)
Efficient drive system for consistent forming performance.
Tooling system: European / Promecam style
Compatible with widely available punches and dies.
Electrical: 380 V, 3-phase
Standard for industrial shop environments.
Dimensions: 110″ × 60″ × 90″
Compact footprint for easy integration into fabrication cells or job shop layouts.
Weight: 9,000 lb (≈4 t)
Heavy-duty frame ensures stability and accuracy.
Safety: Light curtain or laser guarding, foot pedal, CE compliant
Multiple safety options to meet shop and regulatory requirements.
Capabilities & typical applications
This 8 ft, 100 ton press brake is a core asset for job shops, OEMs, and contract manufacturers. It fits seamlessly into standalone forming cells or as a complement to laser cutting, saw, and welding operations.
- Forming brackets, panels, enclosures, cabinets, and chassis for industrial and commercial use
- Manufacturing frames, supports, and structural components for machinery and equipment
- Supporting high-mix/low-volume runs, prototypes, and repeat production orders
- Ideal for metal fabrication, HVAC, contract manufacturing, and general job shop environments
Implementation & support for US shops
We support US job shops and OEMs with pre-install planning, including electrical, floor space, and material flow review. Our team can assess your parts and thickness ranges to confirm fit before purchase, and help with basic programming, tooling selection, and bend sequences.
Training and commissioning are coordinated to get your team up to speed quickly. We’re committed to long-term reliability and responsive support throughout the machine’s lifecycle.
- Pre-installation review for power, access, safety, and workflow
- Assistance with part programming and tooling strategies
- Onsite or remote training and handover
Next step: Send us a few sample parts (DXF/STEP/PDF) and we’ll confirm fit, cycle time, and the best configuration for your shop.
