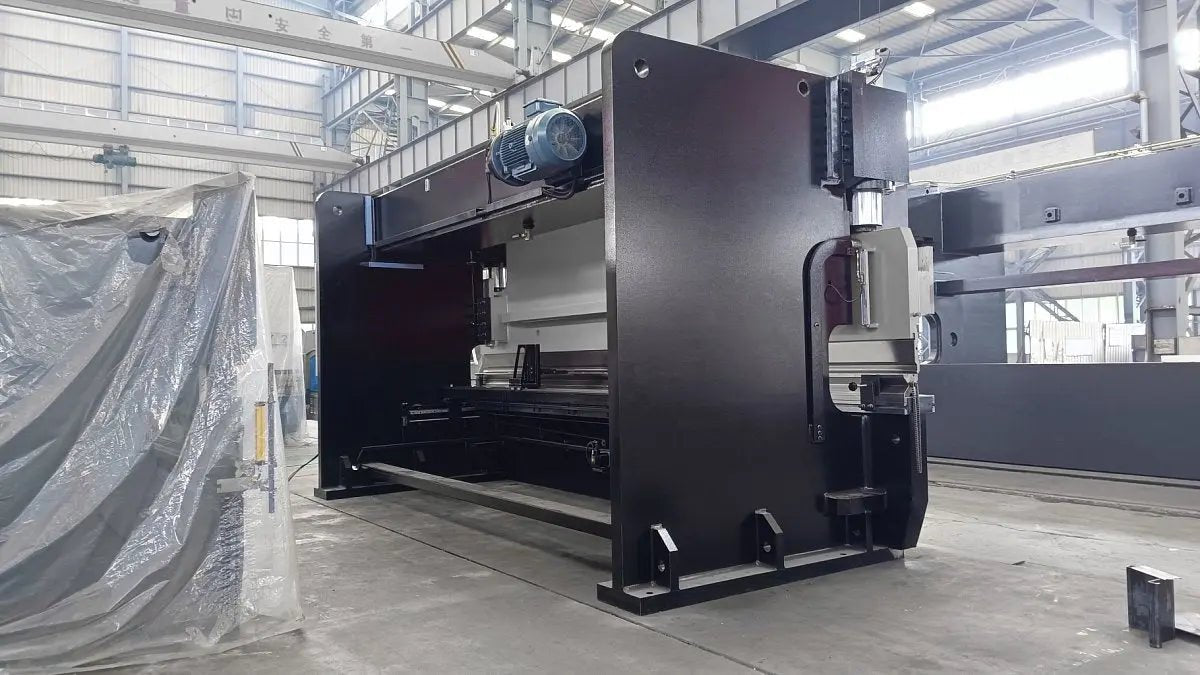

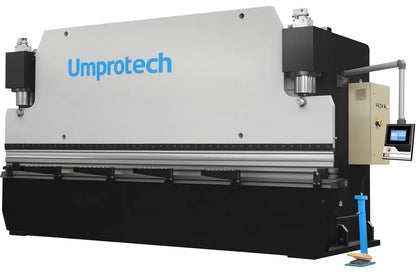

MBT 450/13 CNC Hydraulic Press Brake – 450 Ton, 13 ft
The MBT 450/13 is our flagship 450-ton CNC hydraulic press brake for US fabrication shops and OEM plants that live on heavy plate and uptime. With a 13 ft working length, a deep, rigid frame and CNC-controlled hydraulics, it is built to push thick steel, structural sections and large weldments all day, every day, while holding angle and repeatability in real production, not just on demo parts.
Capacity: 450 ton · Working length: 13 ft · Drive: CNC hydraulic · Duty: multi-shift, 24/7 industrial use
System overview & positioning for US shops
The MBT 450/13 is designed as a core, “anchor” press brake for US metal fabrication shops, job shops and OEMs that run real production, not occasional bending:
- Process heavy-gauge steel, stainless and structural materials every shift, not just thin sheet.
- Operate one, two or three shifts and need dependable, repeatable forming instead of nursemaiding a marginal machine.
- Need to bend long parts (up to 13 ft) in one piece instead of splitting, welding and straightening them later.
- Want a brake that ties cleanly into modern CNC programming, backgauge control and future automation cells.
It drops naturally downstream of fiber lasers, CO₂ lasers, plasma tables, turret punches and saw lines, turning flat blanks into finished or near-finished formed parts with fewer setups and less rework.
MBT 450/13 at a glance
450 ton production force
Serious tonnage for thick plate, structural members and heavy weldments — beyond light-gauge sheet metal and show pieces.
13 ft bed
Bend long panels, cabinets, frames and weldments in one setup instead of stitching short sections together.
CNC hydraulic drive
Electro-hydraulic ram control for consistent angles, predictable springback and faster, cleaner setups.
24/7 duty design
Engineered for multi-shift production with proper preventive maintenance and hydraulic care — built to stay in the line, not in the shop.
High-level technical specification (summary)
| Bending force | 450 ton (rated) |
|---|---|
| Bending length | 13 ft (nominal working length) |
| Drive type | CNC-controlled hydraulic system |
| Standard axes | Y1 / Y2 (ram left/right), X (backgauge) |
| Optional axes | R (vertical backgauge), Z1 / Z2 (independent fingers), others depending on configuration |
| Crowning | Mechanical or hydraulic crowning available, selected per project and application |
| Duty cycle | Multi-shift, 24/7 industrial use (with defined maintenance intervals) |
| Electrical supply | Three-phase industrial power; exact voltage, current and short-circuit ratings defined in the project spec |
Why US shops choose the MBT 450/13
- Serious tonnage for real work: 450 ton capacity sized for heavy plate, structural members and large weldments – not just thin-gauge sheet or trade-show demos.
- 13 ft bed length: Form long panels, cabinets, frames and weldments in one hit to eliminate unnecessary welds, re-handling and fit-up headaches.
- Consistent angles across shifts: CNC hydraulic system with controlled ram positioning for repeatable bends, even as operators, shifts and material heats change.
- Built for 2–3 shifts: Frame, hydraulics and components are sized for continuous industrial use in North American fabrication environments, not light-duty cycles.
- Workflow-ready: Drops cleanly downstream of fiber lasers, plasma tables and saws feeding heavy plate and structural parts, supporting a modern cut–bend–weld flow.
- Automation-ready: Runs as a stand-alone brake today, with provisions to integrate robots, part-positioning systems or automated tooling changes when you are ready.
Technical overview – geometry & bending envelope
Bending force: 450 ton
Sized for heavy brackets, base plates, structural components and large-format parts within the rated envelope. Tonnage distribution across the bed and per-foot values are specified so your team understands safe loading at different bend lengths.
Bending length: 13 ft
Run long panels and frames in a single pass to minimize seams and secondary operations. Effective bending length and recommended maximum load distribution are documented in the technical data sheet and GA drawing.
Ram stroke: application-specific
Stroke length is sized for deep box sections, tall flanges and tooling height requirements. Exact stroke is confirmed with your part mix and tooling strategy during configuration and shown on the machine drawing.
Open height (daylight): extended range
Generous open height supports tall tools, multi-stage tooling and box-shaped parts. Final daylight value is provided in the proposal and technical drawing set and tuned to your selected clamping and tooling heights.
Throat depth: deep throat design
Deep throat allows bending of larger parts where bends are set back from the edge of the blank, enabling interior flange work, channels and formed sections beyond simple edge bends.
Detailed tonnage charts by material type, thickness and bend length are supplied so your team knows what is safe — and what should move to a larger brake.

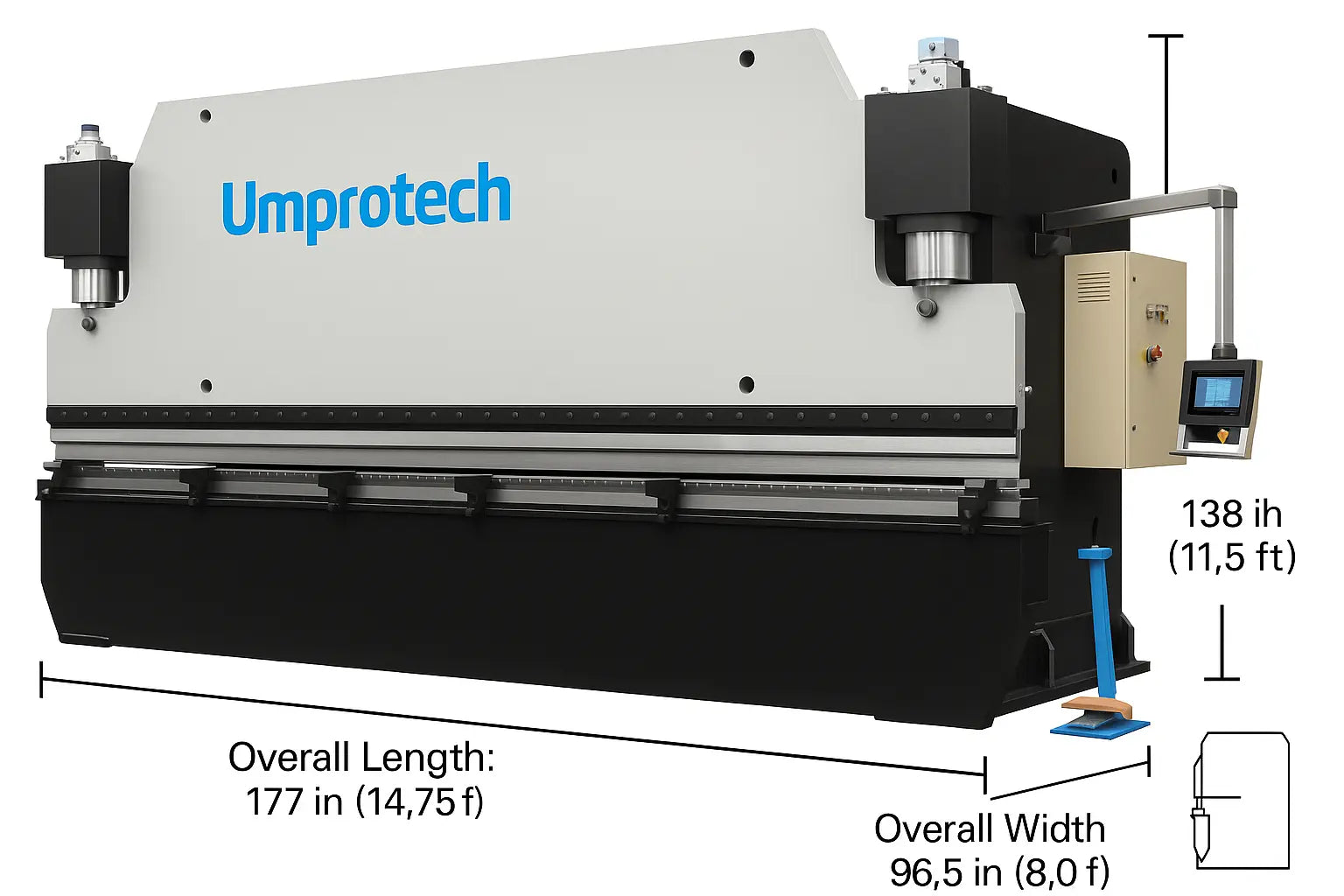

Technical specifications – physical size, weight & foundations
The MBT 450/13 is a large, floor-mounted industrial press brake. Exact values depend on configuration, but the technical package includes all key physical data for planning and installation.
Overall length:
Sized to support a 13 ft working length plus side frames and guarding. Overall length and required floor space (including safety zones and access) are shown on the general arrangement (GA) drawing.
Overall height:
Height accommodates the full ram stroke, open height and crowning systems. Clearance requirements for overhead cranes and building structures are defined in the GA drawing and installation instructions.
Overall depth:
Machine depth includes front support arms and rear backgauge travel. Additional depth for operator space and material handling is indicated in the floor layout recommendations.
Machine weight:
Heavy welded construction results in substantial machine weight, contributing to stability and forming performance. Shipping weight and operating weight (with oil and standard tooling) are specified so you can plan rigging and floor loading.
Floor loading & foundations:
Recommended floor thickness, reinforcement and anchor patterns are provided. Floor loading (kN/m² or lbs/ft²) is documented so your engineering team can confirm existing slabs or design new foundations.
Full GA drawings with dimensions and anchor locations are provided for layout, rigging planning and foundation design.
Technical specifications – frame & mechanical design
The frame and mechanical systems of the MBT 450/13 are designed to handle heavy loads, maintain accuracy over time and support multi-shift operation.
Main frame: welded steel construction
Heavy welded frame engineered for minimal deflection under full load. Machined surfaces for bed and ram ensure consistent alignment, even under high tonnage and repeated loading cycles over many years of production.
Bed & ram: precision-machined
Bed and ram are machined to tight tolerances to support accurate tooling alignment. Surfaces are prepared for clamping systems and crowning components, with attention to long-term stability and ease of service.
Guides & gibs: guided ram motion
The ram guidance system maintains parallelism and minimizes side loading. Gibs and guide surfaces are designed for adjustment and maintenance to keep the machine within specification throughout its life.
Technical specifications – hydraulic system
The hydraulic system is the heart of a CNC press brake. The MBT 450/13 uses an industrial hydraulic package, controlled by the CNC, to deliver stable force and predictable motion.
Hydraulic power unit (HPU):
Main hydraulic power unit sized for continuous duty at rated tonnage. Includes pump, motor, reservoir, filtration and cooling. Final motor rating and pump displacement are documented in the technical spec sheet for your machine.
CNC-controlled valves: proportional control
Proportional valves controlled by the CNC manage ram position, speed and pressure, ensuring smooth motion and controlled forming during approach, bending and return phases.
Pressure & temperature monitoring:
Pressure settings are defined in the CNC and monitored by sensors; hydraulic temperature is managed by cooling and monitored to prevent overheating during multi-shift operation.
Filtration & maintenance:
Filter assemblies and access points are specified for regular inspection and replacement. Hydraulic maintenance intervals and oil change recommendations are included to support long-term reliability.
Technical specifications – CNC control & automation
The MBT 450/13 can be configured with different CNC control packages, from straightforward operation to advanced graphical programming and simulation.
Control system: configurable CNC controller
The controller manages ram axes (Y1/Y2), backgauge axes (X, and optional R, Z1, Z2) and crowning functions. Program structure supports bend sequences, angle corrections and job memory for repeat orders.
Programming capability:
Depending on the package: numeric programming, 2D part programming, or full 2D/3D graphical programming with bend sequence simulation and collision checks (where offered), helping reduce trial bends.
Job & tool libraries:
Storage for part programs, material data and tooling setups. Libraries support quick recall of repeat jobs and standardized setups for different material thicknesses and profiles.
Connectivity (where supported):
Options may include network connectivity for program transfer, backup and integration into shop-floor systems, depending on the selected controller model and your IT policies.
Technical specifications – axes, backgauge & crowning
Axis configuration (standard): Y1 / Y2 + X
Independent left/right ram control (Y1/Y2) plus an X-axis backgauge for depth positioning. This supports accurate parallelism and repeatable flange lengths across the full 13 ft bed.
Backgauge system: servo-driven
Servo-controlled backgauge with robust fingers for plate and formed parts. Travel range is sized for typical panel depths used in cabinets, frames and formed weldments, with speed tuned for production work.
Optional axes: R, Z1/Z2, others
Additional axes can be configured for vertical backgauge movement (R) and left/right independent fingers (Z1/Z2), enabling complex gauging, staged bending and reduced setups on high-mix work.
Crowning: mechanical or hydraulic (configurable)
The crowning system compensates for bed and ram deflection under load, maintaining consistent angles along the full 13 ft bend length. Mechanical or hydraulic crowning is chosen based on application, preference and budget.
Specific axis travels, speeds and positioning accuracy are documented in the quotation and technical specification for your machine.
Accuracy, repeatability & US configuration
Accuracy & repeatability:
Ram and backgauge positioning accuracy is suitable for OEM and tight-tolerance work when combined with proper tooling. Detailed tolerances (for positioning and repeatability) are listed in the technical spec for your configuration.
US electrical configuration:
Electrical cabinet and wiring are configured for typical US industrial power and practices. Main disconnects, overloads and protective devices are selected to meet local requirements, with all details specified in the electrical one-line and cabinet layout drawings.
Safety & guarding options:
Safety devices (light curtains, guards, e-stops) are configured according to site requirements and risk assessments. Integration with plant safety systems is supported through input/output signals and documented in the control schematics.
Standard configuration – what you get
The MBT 450/13 standard configuration is designed to drop into a US fabrication shop and start making parts with minimal ramp-up. A typical base system includes:
- 450 ton, 13 ft welded steel frame with precision-machined bed and ram.
- CNC hydraulic system with proportional control valves and pressure/position feedback.
- CNC controller with part program storage, angle corrections, bend sequence functions and basic diagnostics.
- Y1 / Y2 ram axes with high-resolution linear scales for parallelism and angle consistency.
- Servo-driven X-axis backgauge with adjustable fingers for plate and formed parts.
- Crowning system (mechanical or hydraulic, matched to machine size and application).
- Main hydraulic power unit with filtration and cooling sized for continuous production.
- Operator console, foot pedal with emergency stop and standard operating modes (where applicable).
- Front support arms and standard punch/die clamping system.
- General-purpose tool set for common bends (exact content defined in the quotation).
- Electrical cabinet built for US standards with main disconnect and safety interlocks.
- Operator and maintenance documentation, including lubrication and inspection schedules.
Typical parts, materials & industries
The MBT 450/13 is positioned as a core press brake in heavy-duty fabrication and OEM production. If you are cutting thick material and large blanks, this brake is designed to finish that work.
- Large panels, machine bases, cabinets and structural frames.
- Heavy brackets, base plates, gussets, stiffeners and supports.
- Machinery housings and heavy equipment parts (construction, mining, ag, energy, transportation).
- Steel, stainless and other metals within the 450 ton / 13 ft capacity window.
- Job shops and OEMs with high-mix, heavy-duty parts where downtime and bad bends are expensive.
Send us 3–5 representative part drawings or DXF files and we will confirm tonnage, feasibility, tooling and bend sequences before you commit.
Integration, safety & compliance
The MBT 450/13 is configured for US installations and can be integrated into existing production lines or stand-alone forming cells.
- Electrical configuration suitable for typical US industrial power (details confirmed per project).
- Machine layout drawings available for floor planning and material flow design.
- Safety devices and guarding packages aligned with your internal standards and risk assessments.
- Integration support for upstream/downstream equipment, conveyors, robots and automation partners.
Implementation, ROI & support in the US
A 450 ton press brake is a long-term production asset. Our team uses your actual part mix and planned volumes to make sure the machine is sized and configured correctly for your work — not just theoretical charts.
- Does it eliminate multiple setups, re-handling, or extra welding you are doing today?
- Does it free up skilled operators from “babysitting” marginal or undersized equipment?
- Does it increase throughput on your highest-margin work, not just easy parts?
Before installation we help with:
- Pre-installation review: power, foundations, layout, rigging and crane access.
- Part review: tonnage calculations, bend feasibility and tooling recommendations.
- Startup: operator training, first-job setups and basic programming assistance.
- Maintenance guidance: what your team needs to do to keep uptime high and protect the investment in the machine.
Next step: send us sample parts (drawings or DXF). We will respond with a recommended configuration, estimated cycle times and a proposal based on real parts from your shop.
Key questions US buyers ask
How is the price determined?
Pricing depends on CNC controller package, backgauge axes, tooling, safety and automation options, as well as any special integration or installation requirements. We quote based on your parts and needs so you are not paying for features you will not use.
What is included beyond the machine?
A typical package includes the press brake, selected CNC control, agreed tooling package, basic training and startup support. The exact scope is defined with you during the proposal stage so there are no surprises.
How is service and parts support handled in the US?
Service support is available for US-installed machines. Key wear items and critical components are specified, and we can assist your maintenance team with preventive maintenance plans and recommended spare parts to maximize uptime.
Is 450 tons enough for my parts?
Share your part drawings with material, thickness and bend lengths. We will run tonnage checks and tell you directly whether the MBT 450/13 is appropriate, or if a different capacity would be safer and more economical long term.
What are typical lead times?
Lead time depends on configuration, options and current production load. We provide current build and delivery timing with your quotation so you can align the project with your schedule and budget cycle.
How difficult is it for my operators to learn the CNC?
Essential and Advanced CNC packages are designed for operators moving up from conventional brakes. Training during startup, plus job and tool libraries, help shorten the learning curve and standardize best practices.
Can I start simple and add options later?
In many cases, yes. We can discuss which options (axes, tooling, safety, automation) are easier to add later and which should be decided up front, so you can phase your investment intelligently.
