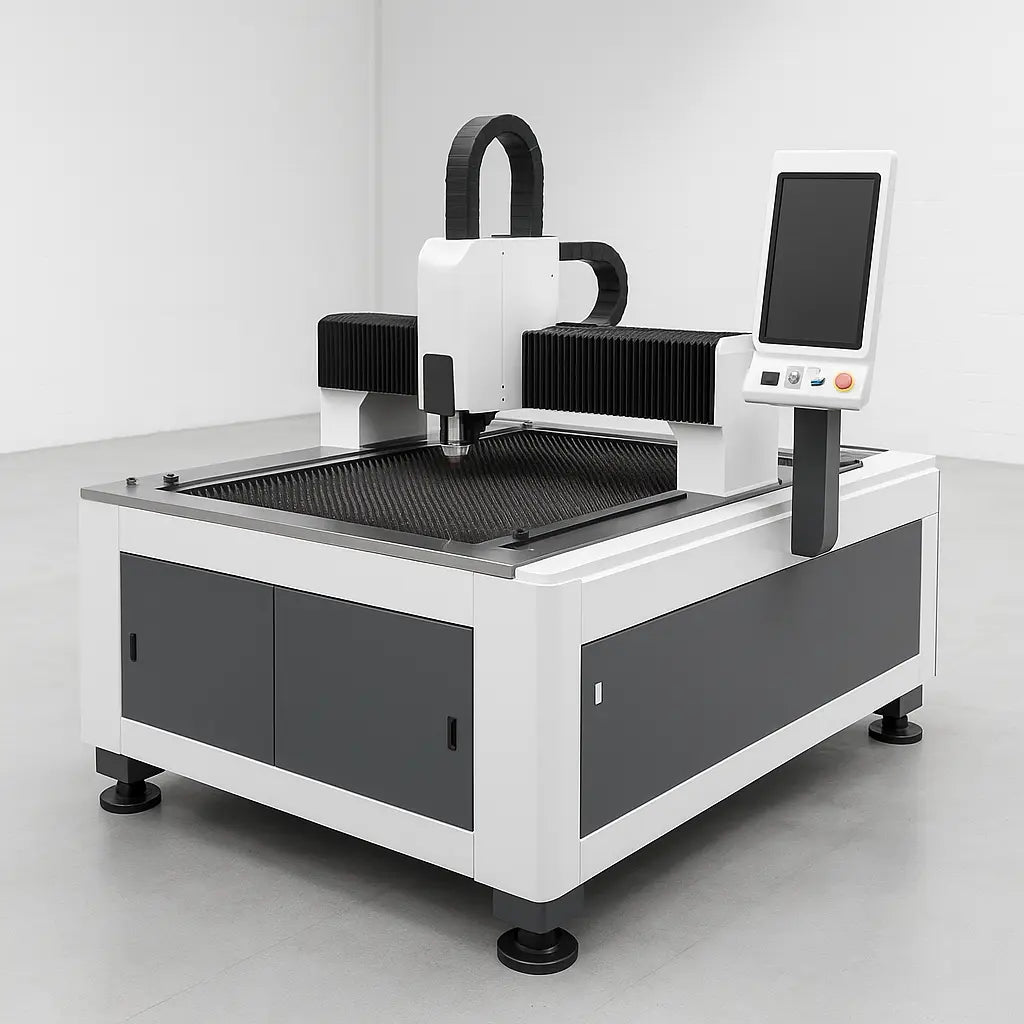

3000 W Fiber Laser Cutting Machine — 1515 (5 ft × 5 ft / 60 in × 60 in)

Compact 3.0 kW fiber laser built for US job shops and fabrication cells that need higher power in a small footprint—fast, accurate cutting on mild steel, stainless, aluminum, and select copper/brass applications.

Laser: 3.0 kW · Work area: 1500×1500 mm (60×60 in) · Accuracy: ±0.03 mm/m · Repeat: ±0.02 mm

Typical capacity: MS 14–16 mm · SS 8–10 mm · Al 6–8 mm · Power: 480V 3PH 60Hz (transformer options)

Built for US workflows

  • 5×5 format: ideal for blanks, partial sheets, and remnants—saves floor space vs 5×10.
  • Cell-friendly: fits near press brakes, weld cells, saws, and assembly without a major layout change.
  • DXF/DWG programming: CNC nesting (CypCut/FSCUT class) with English UI, part libraries, and job recall.
  • Safety-ready integration: guarding/enclosure options + fume extraction connections; supports LOTO practices.

Key advantages

  • More power in a compact table: faster on medium plate than 1.5–2.0 kW systems, while still excellent on thin sheet.
  • High-speed motion: dual rack & pinion X/Y + AC servos; up to ~100–120 m/min rapids and ~1.0–1.5 g accel (config dependent).
  • Auto-focus head: capacitive height control + collision protection for consistent standoff and easier changeovers.
  • Gas flexibility: O2 for speed on MS, N2 for clean SS/Al edges, Air for cost-sensitive work.
  • Non-ferrous capability: copper/brass possible in lighter ranges with correct setup (reviewed per application).

Quick specs

Laser power 3000 W fiber
Work area 1500×1500 mm (60×60 in)
Accuracy / repeat ±0.03 mm/m / ±0.02 mm
Drive Dual rack & pinion X/Y; ballscrew Z; AC servos
Head Auto-focus + height sensing
Gases O2, N2, Air
Electrical 480V 3PH 60Hz typical (other voltages via transformer)
Footprint ~10×8 ft; ~3–5 t (options dependent)

Capacities and edge quality depend on material grade, gas, nozzle/head configuration, and finish requirements—confirm with your cut list or samples.

Options

  • Shuttle table: faster load/unload and higher throughput.
  • Extraction interfaces: ready for common US dust/fume collection solutions.
  • Remote support / reporting: connectivity options for diagnostics and basic production tracking.

Implementation & support

  • Pre-install: layout, power, rigging path, ventilation/extraction planning.
  • Application review: materials/thicknesses + parts to confirm fit on 5×5 and estimate cycle times.
  • Training: safety, nesting/program setup, daily checks, and cut-quality best practices.

Next step: send DXF/STEP/PDF + material grade/thickness + quantities, and we’ll recommend the best 1515 3 kW configuration.

FAQ

Why 5×5 instead of 5×10?

Most parts fit in 5×5; you save floor space and cost, and still run blanks/remnants efficiently.

Can it cut copper/brass?

Often yes in lighter ranges with proper setup; we verify by application and recommend parameters.

Is it multi-shift ready?

Yes—built for daily production; shuttle table + handling strategy improves throughput and extended shifts.
