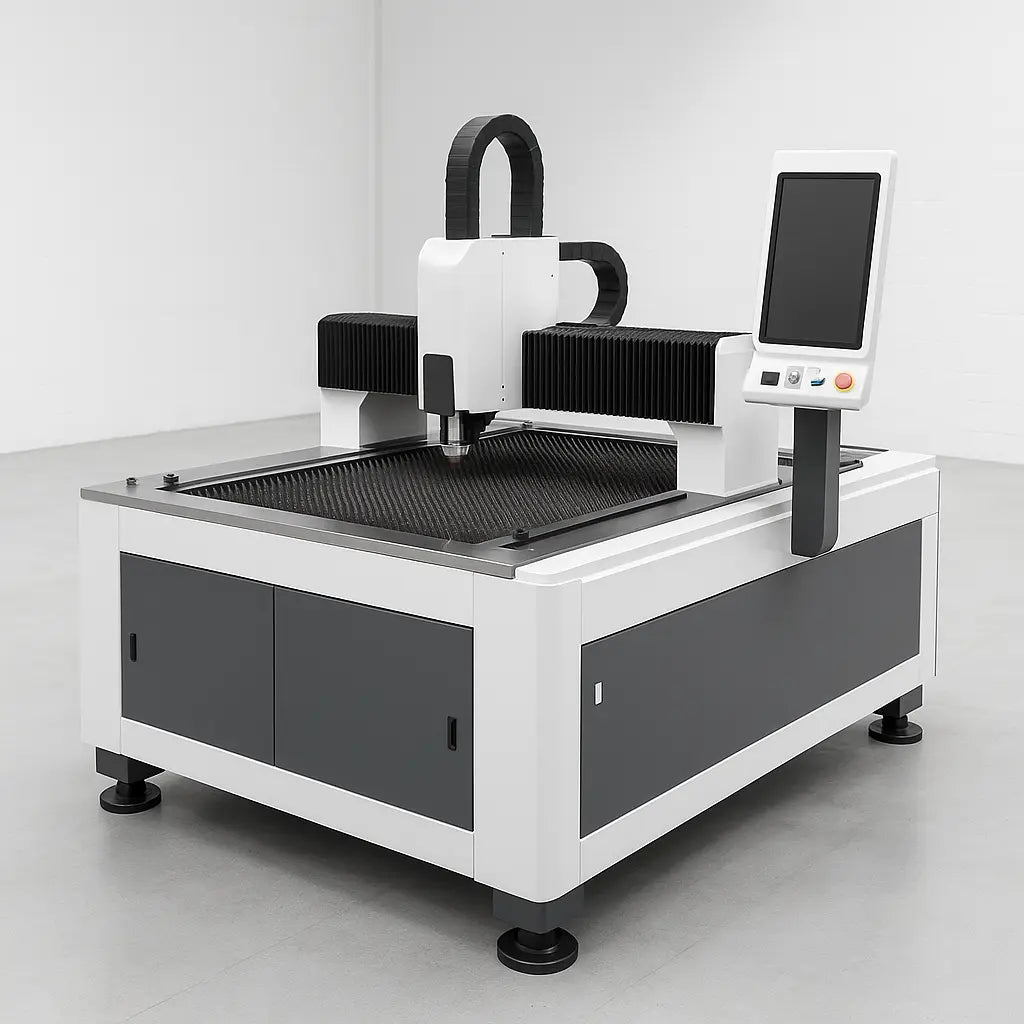

2000 W Fiber Laser Cutting Machine — 1515 (5 ft × 5 ft / 60 in × 60 in)
Compact 2.0 kW fiber laser cutter with a 1,500×1,500 mm work area—built for US job shops and OEM cells that need reliable, repeatable cutting in a small footprint.
Laser: 2.0 kW · Work area: 1515 (5×5) · Accuracy: up to ±0.03 mm/m · Repeatability: up to ±0.02 mm
Materials: mild steel / stainless / aluminum · Power (US): 480V 3-phase 60Hz (transformer options for 208–240V)
Why US shops choose 1515 + 2.0 kW
- Compact 5×5 table: great for blanks and remnants; fits tight floorplans.
- 2.0 kW headroom: faster on medium-gauge work vs 1.5 kW, without 4–6 kW cost.
- Auto-focus cutting head: stable edge quality across materials/thickness changes.
- CNC + nesting: (CypCut/FSCUT class) DXF/DWG import, auto-nesting, micro-joints, lead-in/out.
- Assist gases: O2 / N2 / Air to balance speed, finish, and gas cost.
Key specs (typical)
- Work area: 1500×1500 mm (60×60 in)
- Travel (X/Y/Z): 1500 / 1500 / ~100–150 mm
- Motion: dual rack & pinion X/Y, ballscrew Z, AC servos
- Max rapids: ~90–110 m/min (295–360 ft/min) · Accel: ~1.0–1.2 g
- Cooling: industrial chiller
- Files: DXF/DWG + common CAD exports via controller
Cut capacity (2.0 kW — application dependent)
- Mild steel: typically up to ~12 mm (≈0.47 in); up to ~14 mm possible depending on gas/quality requirements.
- Stainless: typically up to ~5–6 mm (≈0.20–0.24 in)
- Aluminum: typically up to ~4–5 mm (≈0.16–0.20 in)
Final results depend on material grade, assist gas, nozzle/lens, and cut quality target. We can confirm with your parts and samples.
Safety & fume extraction
Laser cutting requires proper guarding, interlocks, PPE, and fume extraction. We provide planning guidance and integration recommendations for US shops.
Get a fast quote
Send: ZIP code + materials/thickness + typical part sizes + shop power (480/240V). We’ll confirm configuration, availability (in-stock or build lead time), and delivered pricing.
