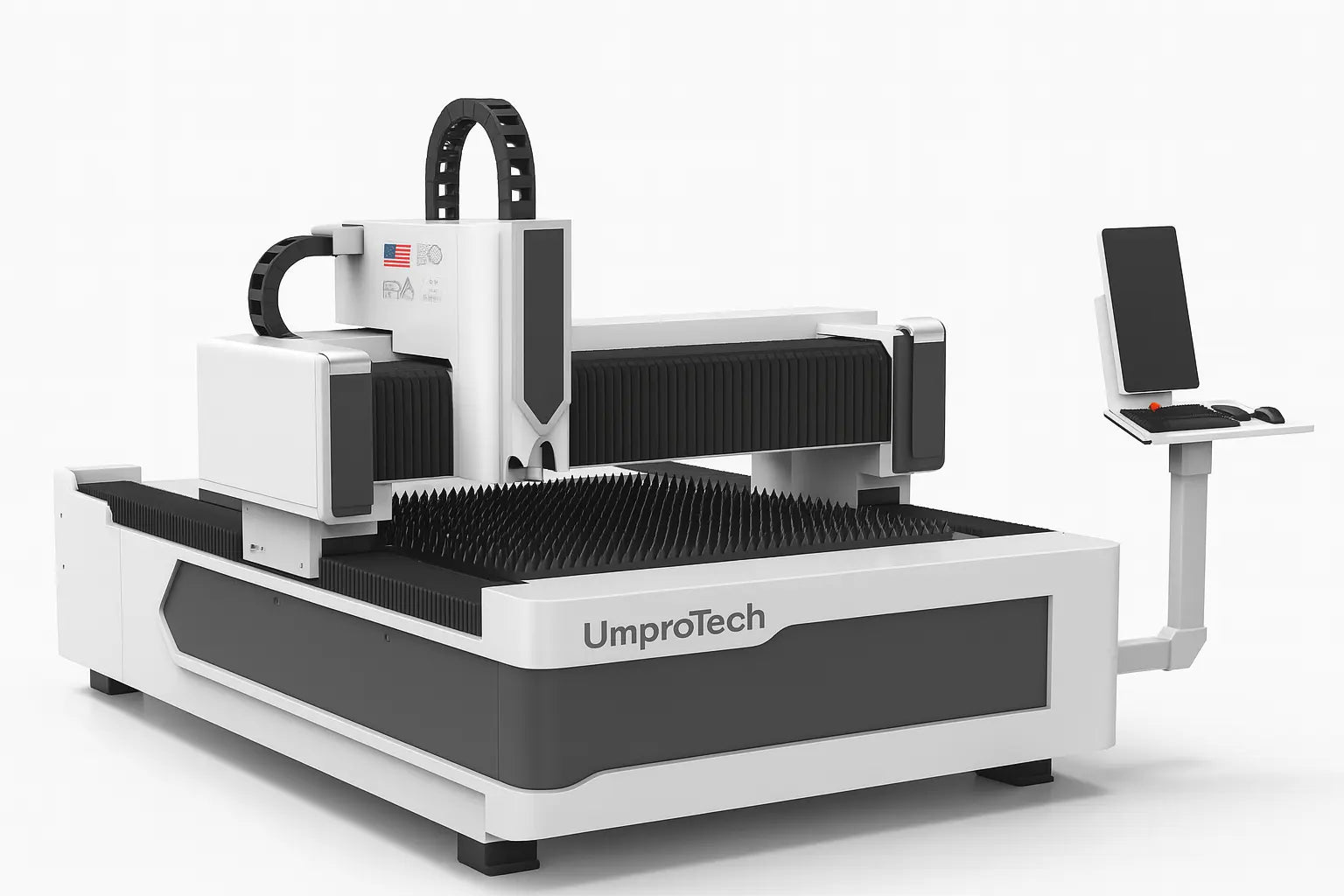

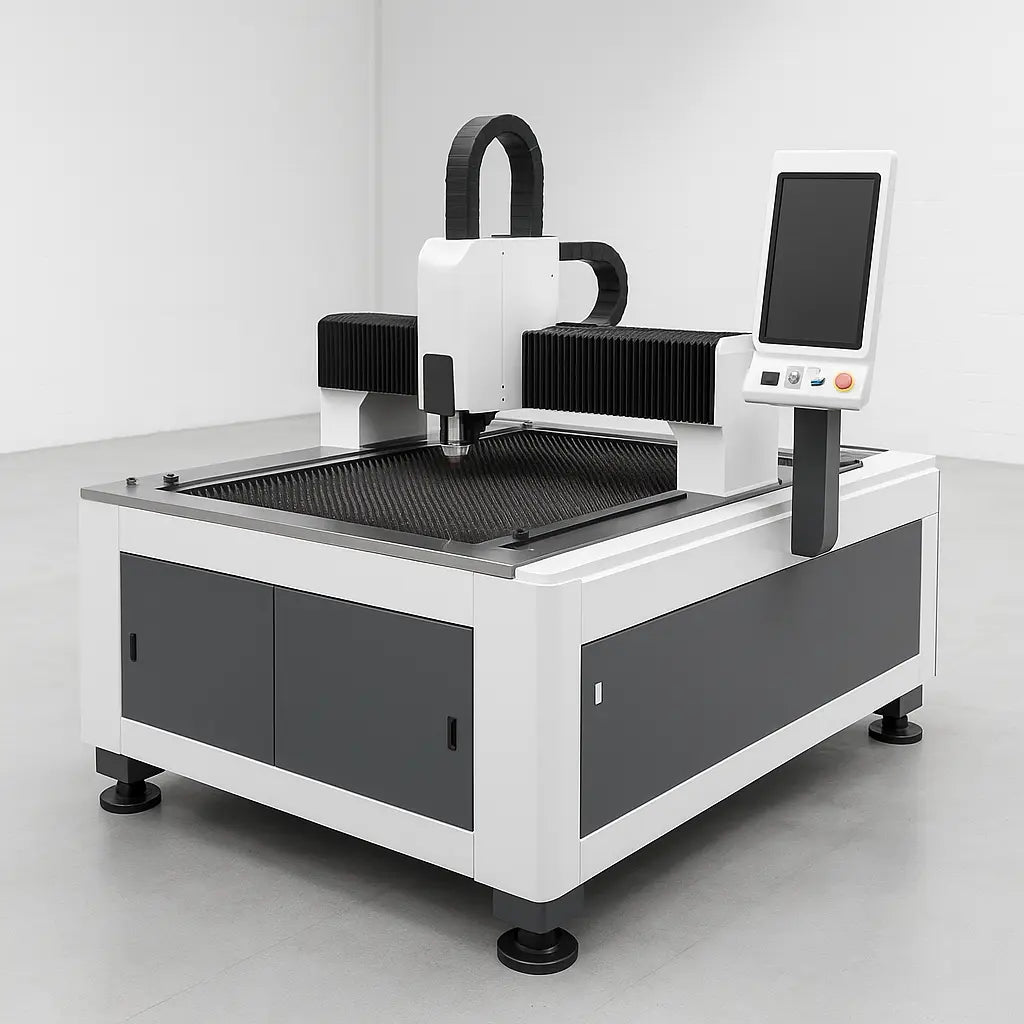

1515 Fiber Laser Cutting Machine — 1.5 kW, 5 ft × 5 ft Table (60 in × 60 in)
Compact 1.5 kW fiber laser for US job shops/OEMs needing precise cutting on 5×5 sheets in tight floor space.
Laser: 1.5 kW · Work: 60×60 in (1524×1524 mm) · Accuracy: ±0.03 mm/m · Repeat: ±0.02 mm
Power: 480V 3PH 60Hz · Materials: MS/SS/Al · Best for: fabrication, HVAC, contract mfg
Built for US sheet sizes, power, and workflows
- 5×5 format: ideal for blanks, partial sheets, and remnants without a large 5×10 footprint.
- US electrical: 480V standard; 208–240V via transformer/step-down.
- Compact cell: ~10×8 ft footprint + clearance; easy to place near press brakes/weld cells.
- DXF/DWG workflow: CNC nesting (CypCut/FSCUT class) with English UI and part libraries.
- Shop-ready: enclosure options, fume ports, E-stops; supports OSHA-minded guarding/extraction plans.
Key specs
- Cut capacity (typical): Mild steel 10–12 mm (3/8–1/2") · Stainless 4–5 mm (3/16–1/4") · Aluminum 3–4 mm (1/8–5/32").
- Motion: 80–100 m/min rapids (260–330 ft/min), 0.8–1.2 g accel; dual rack & pinion X/Y, ballscrew Z, AC servos.
- Head: auto-focus + capacitive height control + collision protection.
- Gases: O2 (speed MS) · N2 (clean SS) · Air (low cost).
- Cooling: industrial external chiller.
- Weight: ~3–5 t (6,600–11,000 lb).
FAQ
Is 1.5 kW enough?
Ideal for thin-to-mid gauge work and fast turnaround parts; go higher power if most work is thick plate or very high volume.
Why 5×5 vs 5×10?
Smaller footprint and lower cost when you mainly run blanks/remnants and medium-size parts.
What’s needed before install?
3-phase power (usually 480V), assist gas, fume extraction, and adequate concrete floor. We provide a pre-install checklist.
